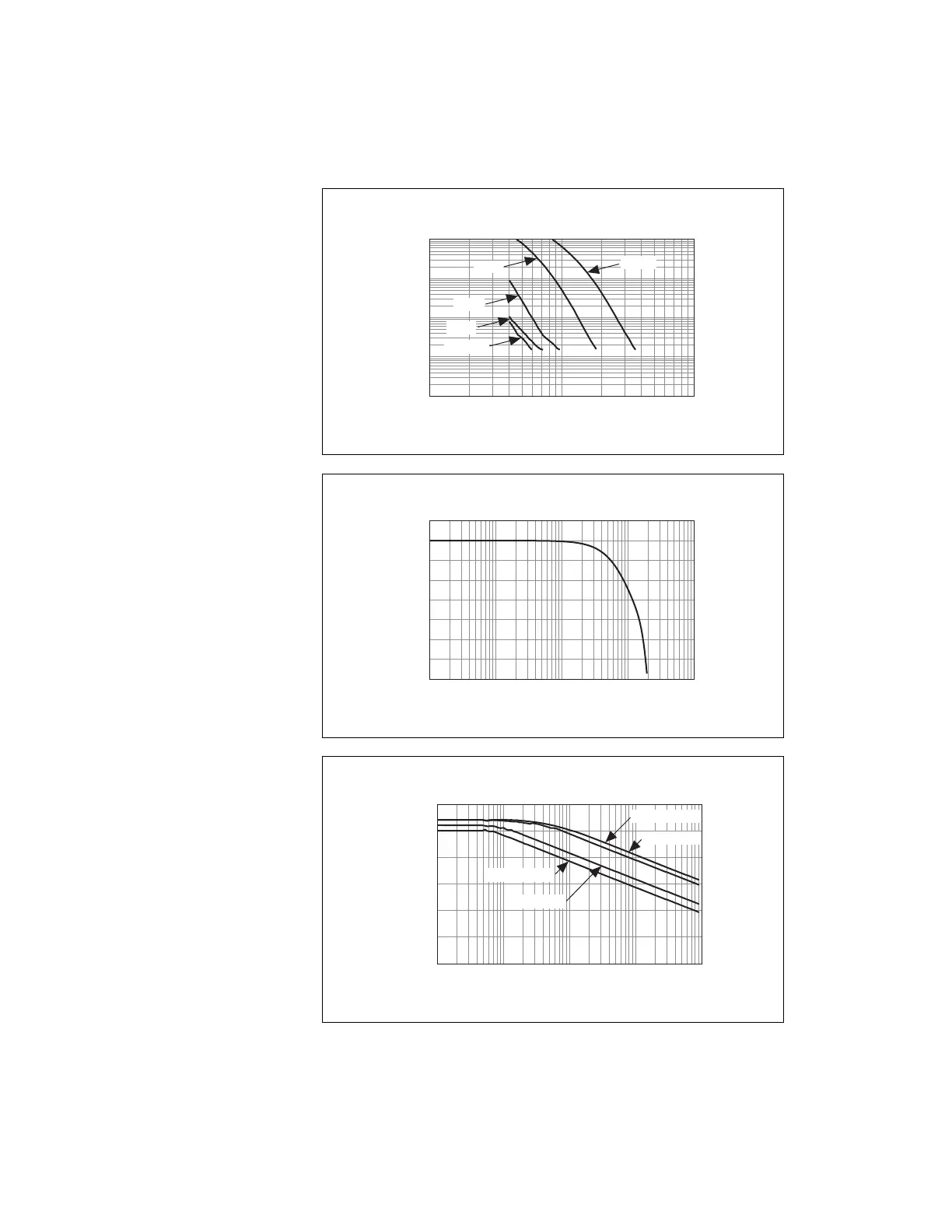

Typical performance graphs
Settling Error Versus Time for Different Source Impedances
1
10
100
1 k
10 k
1
10 100
Time (μs)
Error (ppm of Step Size)
≤100 Ω
1 kΩ
2 kΩ
5 kΩ
10 kΩ
AI <0..31> Small Signal Bandwidth
1 k 10 k 100 k 1000 k 10000 k
Frequency (Hz)
Normalized Signal Amplitude (dB)
–14
–12
–10
–8
–6
–4
–2
0
2
0.2 V Range
10 V Range
5 V Range
1 V Range
AI <0..31> CMRR
0
20
40
60
80
100
120
10 100 1 k 10 k 100 k
Frequency (Hz)
CMRR (dB)
