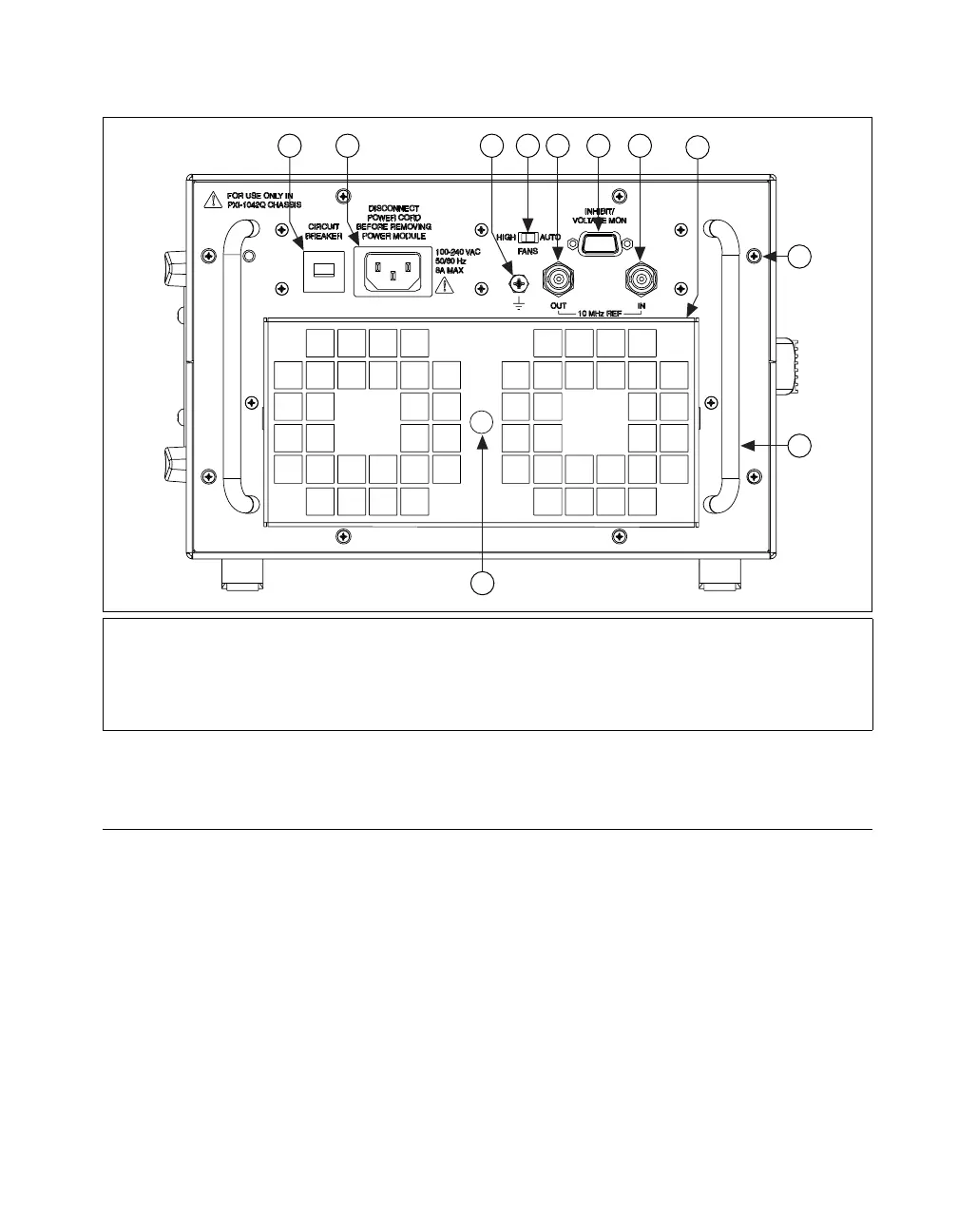

Figure 1-3. Rear View of the PXI-1042Q Chassis
Optional Equipment
Contact National Instruments to order the following options for the
PXI-1042 Series chassis.
EMC Filler Panels
Optional EMC filler panel kits are available from National Instruments.
Rack Mount Kits
Two rack mount kit options are available for mounting the PXI-1042 Series
chassis into a 19 in. instrument cabinet.
1 Circuit Breaker
2 Universal AC Inlet
3 Chassis Ground Screw
4 Fan Speed Selector Switch
510 MHz REF OUT BNC
6 Remote Inhibit and Voltage Monitoring Connector
7 10 MHz REF IN BNC
8 Metal Filter Cover
9 Power-Supply Shuttle Mounting Screw
10 Power-Supply Shuttle
11 Filter Retainer Screw
