34 | ni.com | NI PXI-4130 Calibration Procedure

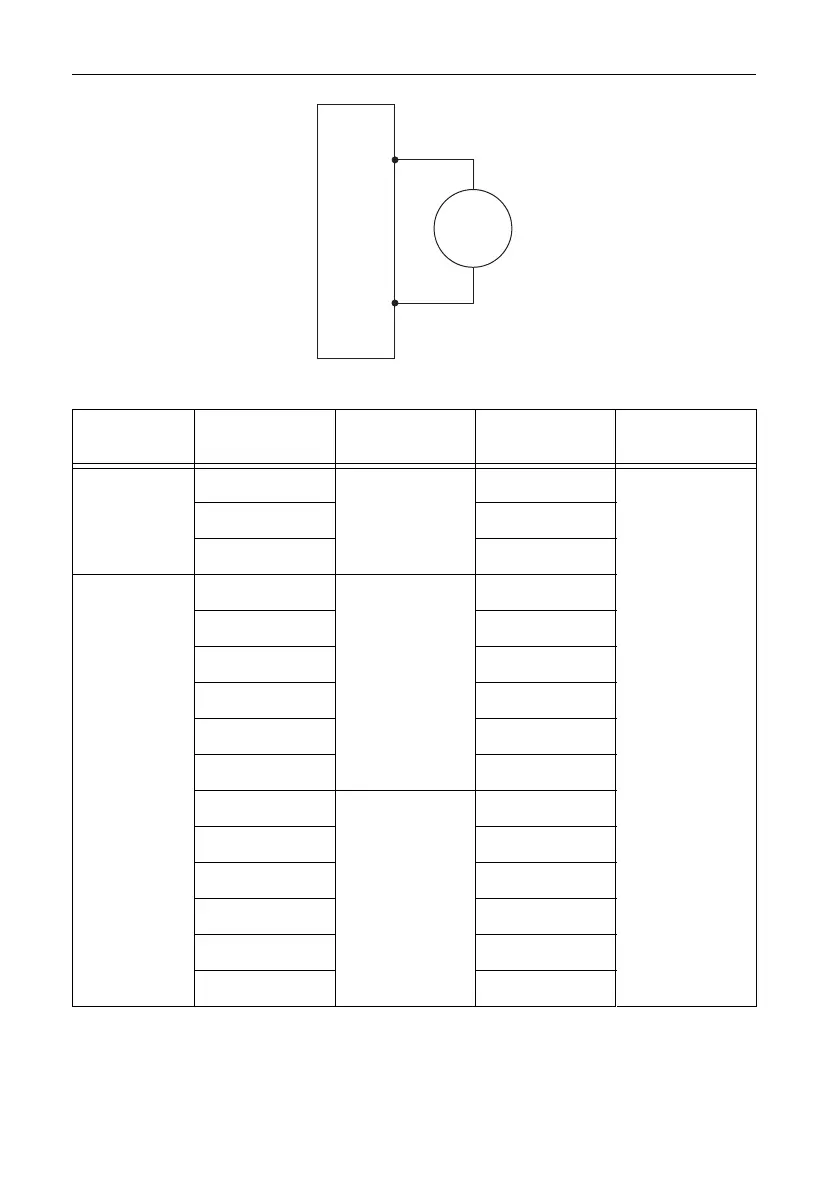

Figure 12. Voltage Adjustment Connection Diagram
Table 18. NI 4130 Output Parameters for Voltage Programming Accuracy Adjustment
Channel Iteration
Voltage Level
Range (V)
Output
Current Limit
(A)
0 1 6 0V 0.5
2 3V
3 6 V
1 1 6 1mV
2 3 V
3 6 V
4 -0.1 mV
5 -3 V
6 -6 V
1 20 1mV
2 10 V
3 20 V
4 -1 mV
5 -10 V
6 -20 V
NI 4130
+
–
LO Sense
HI Sense
HI
LO
DMM
Voltage
Mode
