National Instruments PXIe-1088 User Manual

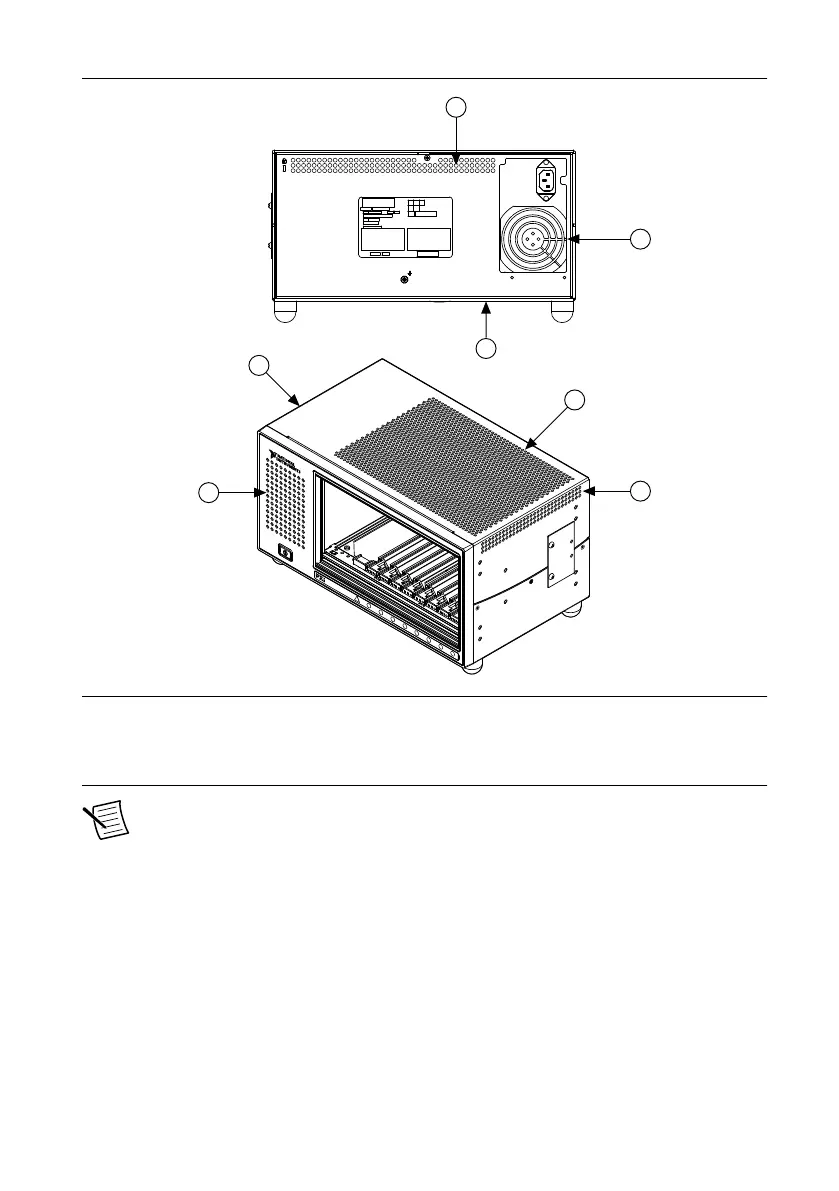

Figure 7. PXIe-1088 Vents
8
9
7
6
5
4
3
2
H
H
H
H
H
H
H
H
1
LOW POWER
PXIe-1088
2
5
4
1
3
6
7
1. Air Exhaust Vent
2. Air Exhaust Vent
3. Air Intake
4. Air Exhaust Vent
5. Air Exhaust Vent
6. Air Intake
7. Air Intake
Note The side exhaust vent (not shown) is located on the left side of the chassis.
Chassis Ambient Temperature Definition
The chassis fan control system uses ambient intake air temperatures for controlling fan speeds
when in Auto mode. These temperatures may be higher than ambient room temperature
depending on surrounding equipment and/or blockages. Ensure ambient intake temperatures
do not exceed the ratings in the Operating Environment section of the PXIe-1088
Specifications. The module ambient intake temperatures can be monitored in National
Instruments Measurement & Automation Explorer (MAX).
