National Instruments PXIe-1088 - Trigger Configuration in MAX

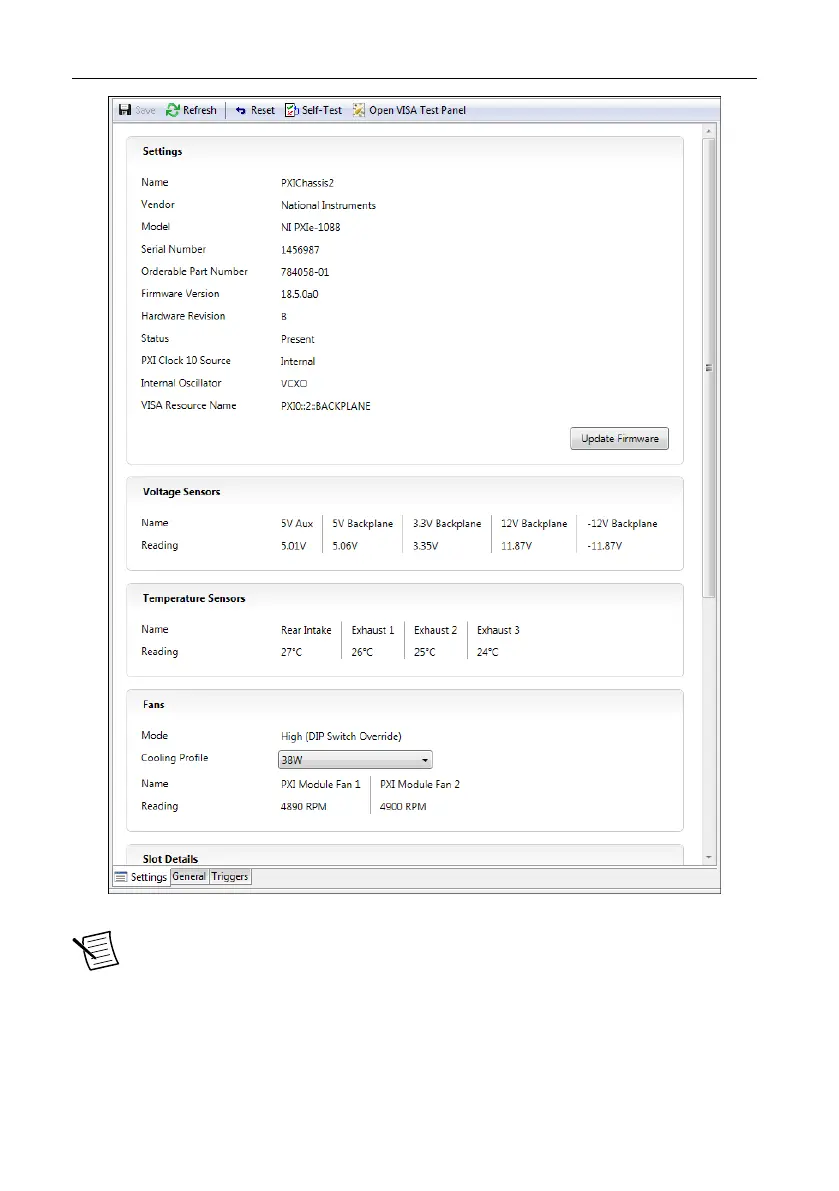

Figure 13. Chassis Settings in MAX
Note Information available through MAX may vary based on your chassis variant
or firmware and platform services version.
Trigger Configuration in MAX
PXI Platform Services provides an interface to route and reserve triggers so dynamic routing,
through drivers such as DAQmx, avoids double-driving and potentially damaging trigger lines.
PXIe-1088 User Guide | © National Instruments | 21
