National Instruments PXIe-1092 User Manual

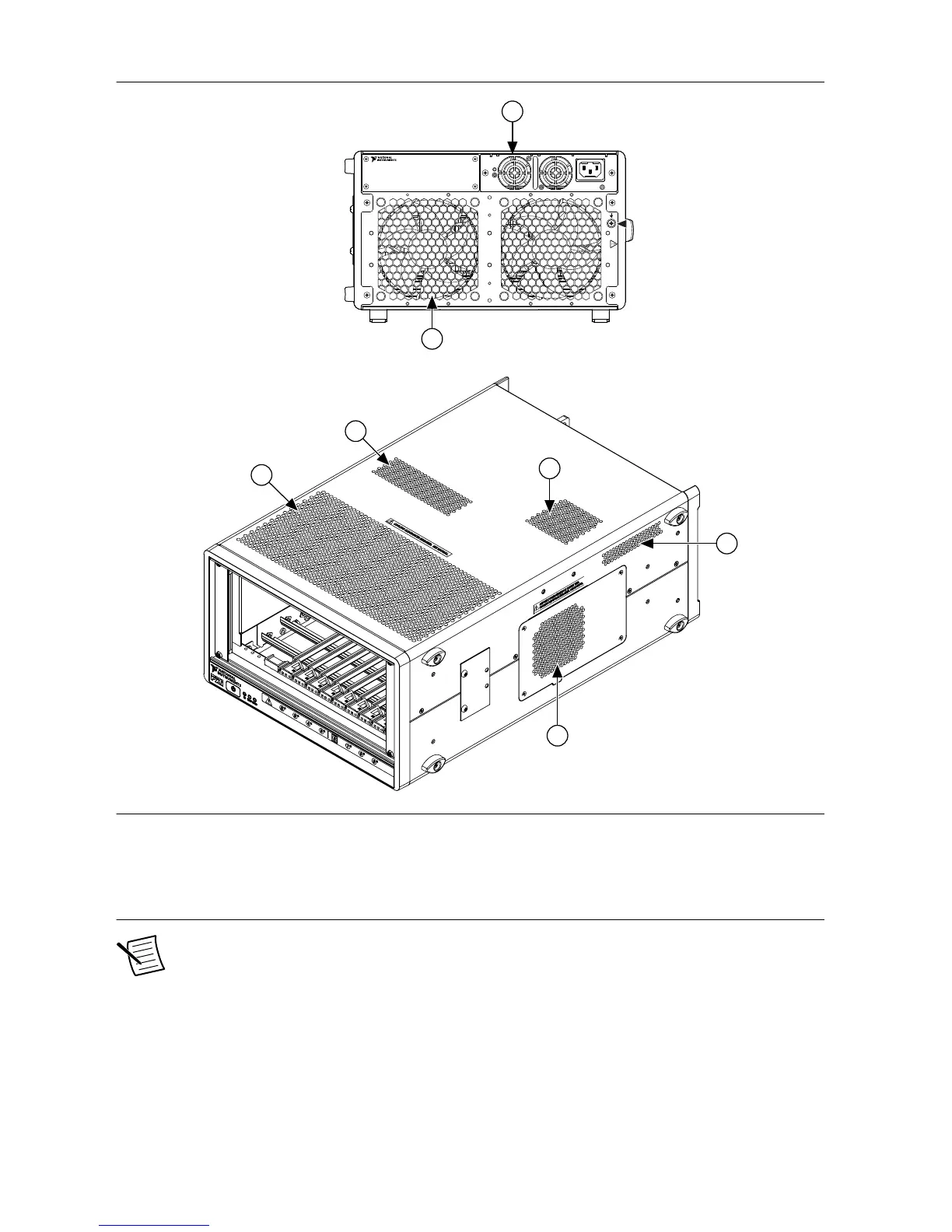

Figure 8. PXIe-1092 Vents
PXIe-1092
3
4
5
7
6
2
DISCONNECT POWER CORD BEFORE SERVICING.
1
1. PXI Module Air Intake (2x)
2. Power Supply Intake
3. PXI Module Air Exhaust Vent
4. Power Supply Air Exhaust Vent
5. Timing and Synchronization Upgrade Air Exhaust
Vent
6. Timing and Synchronization Upgrade Air Intake
7. Side Air Intake Vent (Right)/Side Air Exhaust Vent
(Left)
Note The side exhaust vent (not shown) is located on the left side of the chassis.
Chassis Ambient Temperature Definition
The chassis fan control system uses ambient intake air temperatures for controlling fan speeds
when in Auto mode. These temperatures may be higher than ambient room temperature
depending on surrounding equipment and/or blockages. Ensure ambient intake temperatures
do not exceed the ratings in the Operating Environment section of the PXIe-1092
