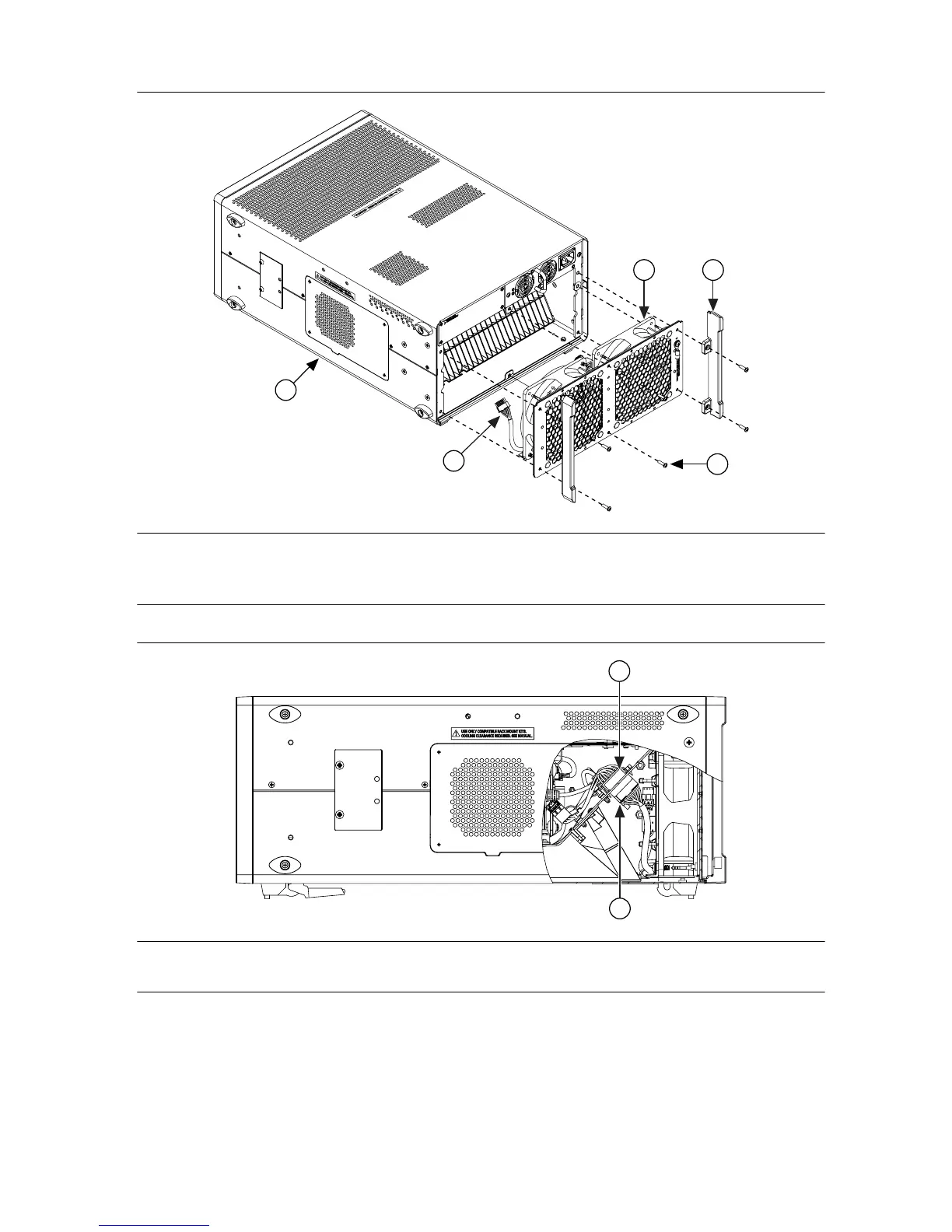

Figure 17. Replacing Rear Fan Module
2
5
3 4
1
1. Fan Harness Plug
2. PXI Express Chassis
3. PXI Module Fan Assembly
4. Rear Chassis Feet (2x)
5. Mounting Screws (6x)
Figure 18. Internal Fan Harness
1
2
1. Fan Receptacle
2. Fan Harness Plug
32 | ni.com | PXIe-1092 User Guide
