National Instruments PXIe-8861 Getting Started Guide

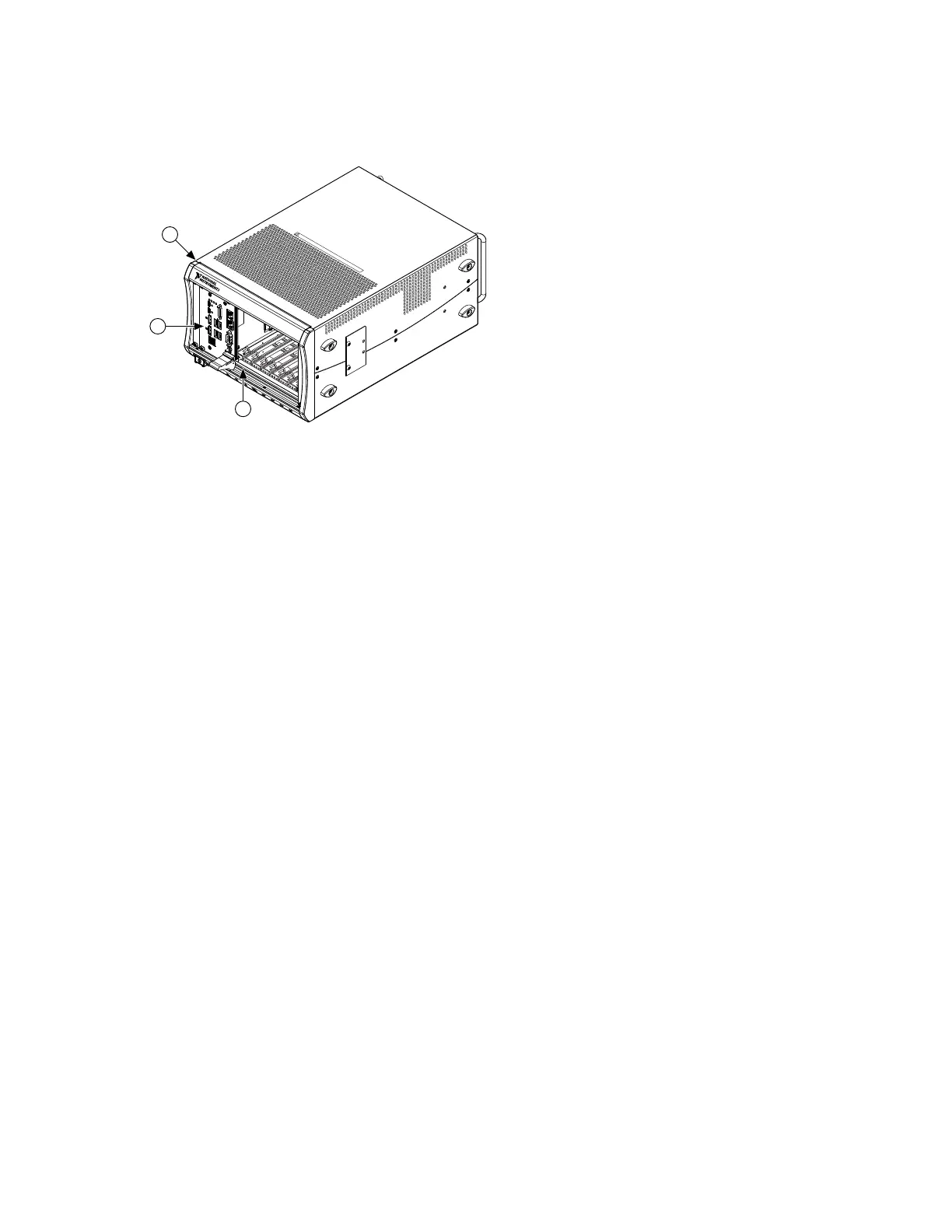

Figure 2. PXIe-8861 Installed in a PXI Express Chassis
1
2
COOLING CLEARANCES AND FAN FILTER MAINTENANCE REQUIRED. SEE MANUAL
NI PXIe-1082
PXIe-8861
Embedded Contr
3
a.
PXI Express Chassis
b.
PXI Express Controller
c. Injector/Ejector Rail
Data Storage
The PXIe-8861 has the following data storage features:
■
M.2 NVMe internal solid state drive (500 GB or larger), or
■
U.2 NVMe removable solid state drive (500 GB or larger)
■
USB storage support—USB CD/DVD-ROM, mass storage device, or floppy
drive
PXIe-8861 Front Panel
The following figure shows the PXIe-8861 front panel layout.
ni.com
6
PXIe-8861 Getting Started Guide

National Instruments PXIe-8861 Specifications

General

Brand	National Instruments
Model	PXIe-8861
Category	Controller
Language	English
