PROCEDURE

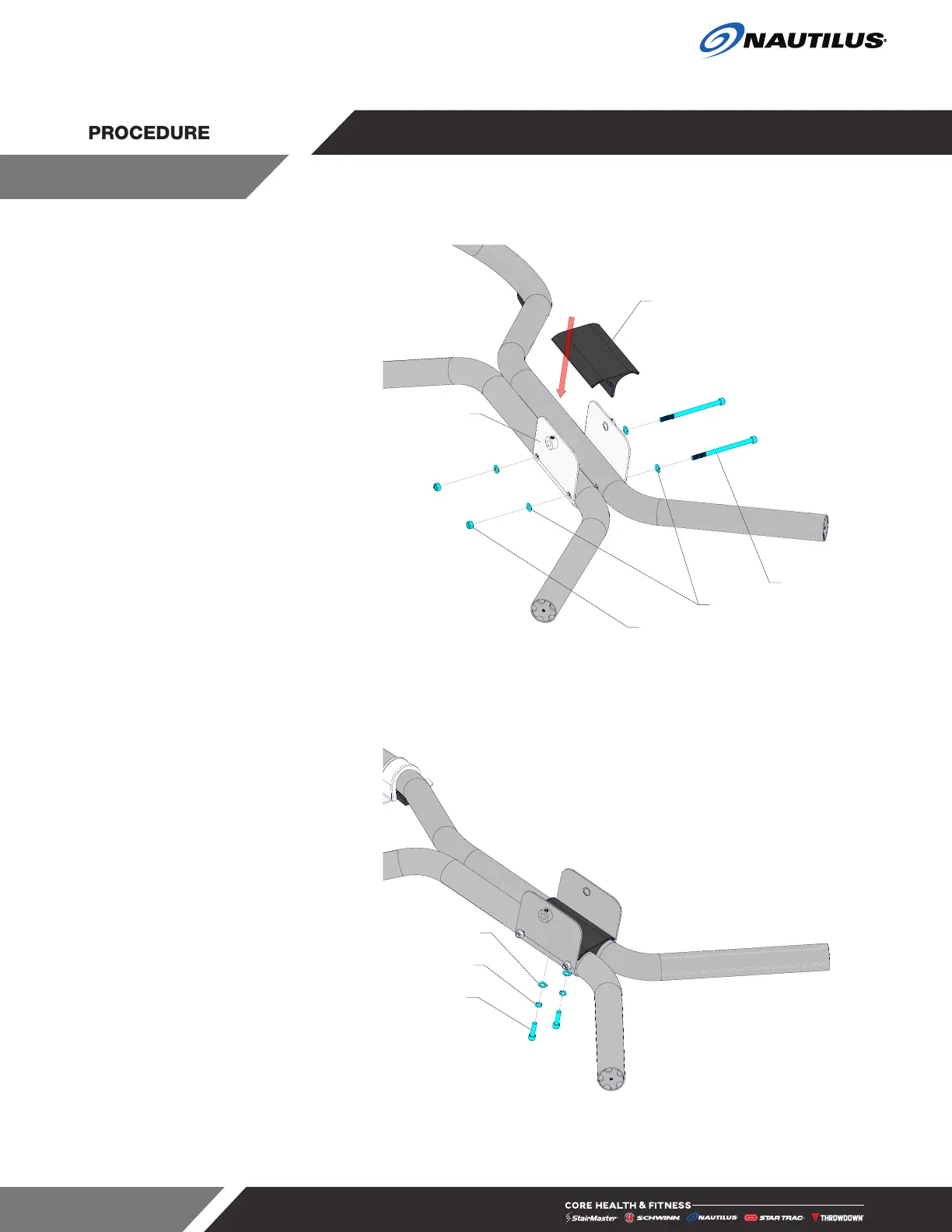

1. Secure the seat bracket
731-8914 to the underside, and
the alignment bracket 731-8916
to the top of the frame using four
(4) pieces of the M8 narrow flat
washers, and two (2) pieces each
of the M8 x 130mm socket head
cap screw and M8 nylock nut.
DO NOT FULLY TIGHTEN.
731-8914
731-0355
110-4306
740-4068
731-8916
Fig. 5
2. Finish securing the seat bracket
to the frame using two (2) pieces
each of the M8 flat washer, M8
split lock washer, and M8 x 25mm
socket head cap screw
DO NOT FULLY TIGHTEN.
731-5330
730-1179
730-0910
Fig. 6
