Nautilus Be strong NS 200X Assembly Manual

10
# Component Qty

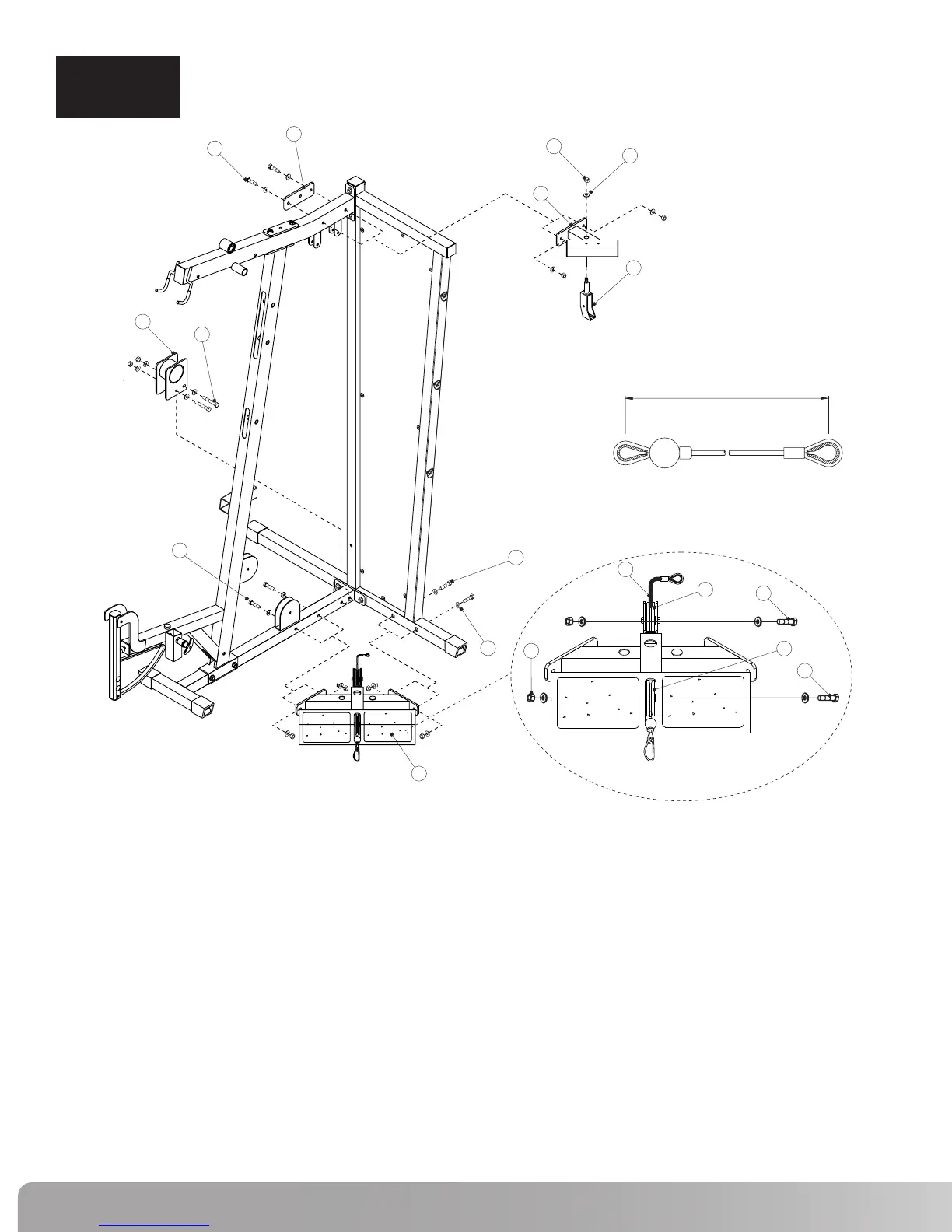

Step 2 Components:
Procedure:
A. Attach Top Stack Support Frame (6) to Top Frame using 3” Backing
Plate (9) and the hardware shown. Tighten hardware firmly.
B. Attach Floating Pulley Bracket (12) to Top Stack Support Frame (6)
using hardware shown. Do not tighten.
C.
Attach Cable Housing (7) to Main Base Frame using hardware shown.
Tighten hardware firmly.
Note: If an exercise attachment such as a leg press is used, do not
install Cable Housing (7).
D. Install Cable #1 (41) through Calf Raise / Low Pulley Frame (5).
Feed the looped end of the cable (without ball) through the foot plate
side of the Calf Raise / Low Pulley Frame (5). Attach two 3 ½” pulleys
(14) using hardware shown, making sure that the cable runs in the
groove on the low side of the pulley. Final installation of the cable will
be completed on Step 8. NOTE: Make sure that the cable is NOT
wrapped around the cable stop.
E.
Attach Calf Raise / Low Pulley Frame (5) to Main Base Frame and
Rear Frame using hardware shown. Tighten hardware firmly.
ASSEMBLY
STEP 2
5
6
7
9
12
14
41
49
50
54
58
59
60
61
Calf Raise / Low Pulley Frame
Top Stack Support Frame
Cable Housing
3 inch Backing Plate
Floating Pulley Bracket
3½” Pulley
Cable #1 - Low Row (136.5”)
Hex Bolt 3/8” x 3 1/4”L
Hex Bolt 3/8” x 3”L
Hex Bolt 3/8” x 2”L
1/2” Flat Washer
3/8” Flat Washer
1/2” Lock Nut
3/8” Lock Nut
1
1
1
1
1
2
1
2
6
2
1
20
1
10
50
60
6
58
12
7
50
49
9
5
59
50
3 1/4”L
61
41
14
14
54
54
2”L
2”L
3”L
3”L
3”L
136.5” (3470mm)
