Nautilus Be strong NS 200X Assembly Manual

11
Nautilus NS200X
Step 3 Components:
Procedure:
ASSEMBLY
STEP 3
# Component Qty
15
16
17
18
19
20
21
22
25
26
57
80
65
Roller Bar
Press Arm
Press Arm Support Assembly
Press Arm Handle - Right
Press Arm Handle - Left
Foam Roller 8”L
Roller End Cap
Plastic Washer
Press Arm Pivot Shaft
Press Arm Support Shaft
Button Head Allen Screw 3/4”L
3/8” Curved Washer
Set Screw 5/16” x 1/4”L
1
1
1
1
1
2
2
2
1
1
4
4
6

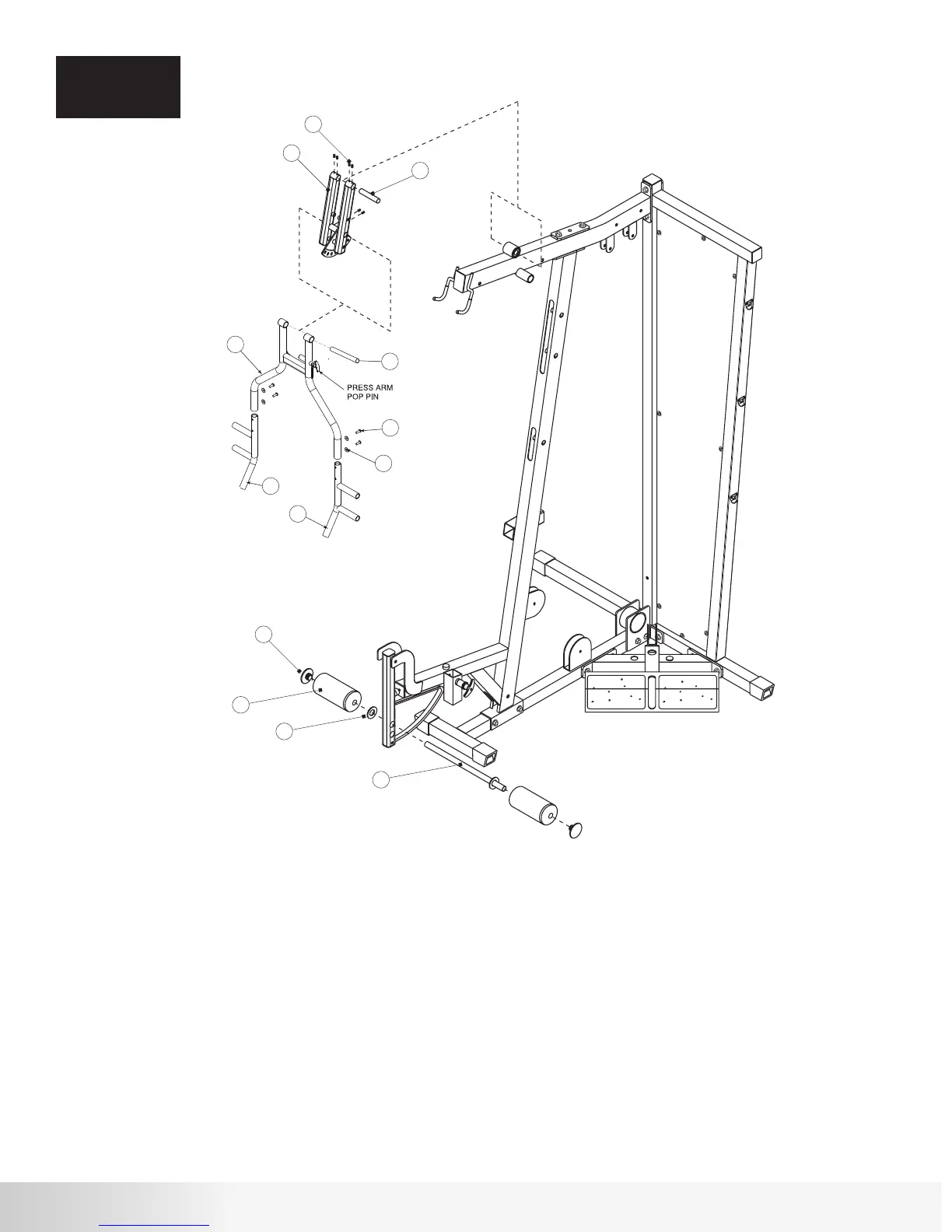

A. Attach Press Arm Support Assembly (17) to the Top Frame using the
Press Arm Support Shaft (26). Align Shaft and tighten the 4 set screws
(65) shown.
B. Remove Pop Pin from Press Arm (16). Attach Press Arm (16) to Press Arm Support
Assembly (17) using the Press Arm Pivot Shaft (25), making sure that the shaft is
centered. Secure by tightening the two set screws (65) firmly. Attach Pop Pin.
Tighten using adjustable wrench.
C. Attach Press Arm Handles (18) (19) using hardware shown. Tighten
hardware firmly.
D. Slide Roller Bar (15) through the Leg Extension Assembly. Either hole
can be used depending on best fit for user.
E. Slide a Plastic Washer (22) followed by a Foam Roller (20) on to roller
bar (15). Press the Roller End Cap (21) firmly into the Roller Bar (15).
Repeat for the opposite side
17
65
26
16
25
57
21
20
18
19
22
15
80
