Step 6 Components: Procedure:
ASSEMBLY
STEP 6
# Component Qty

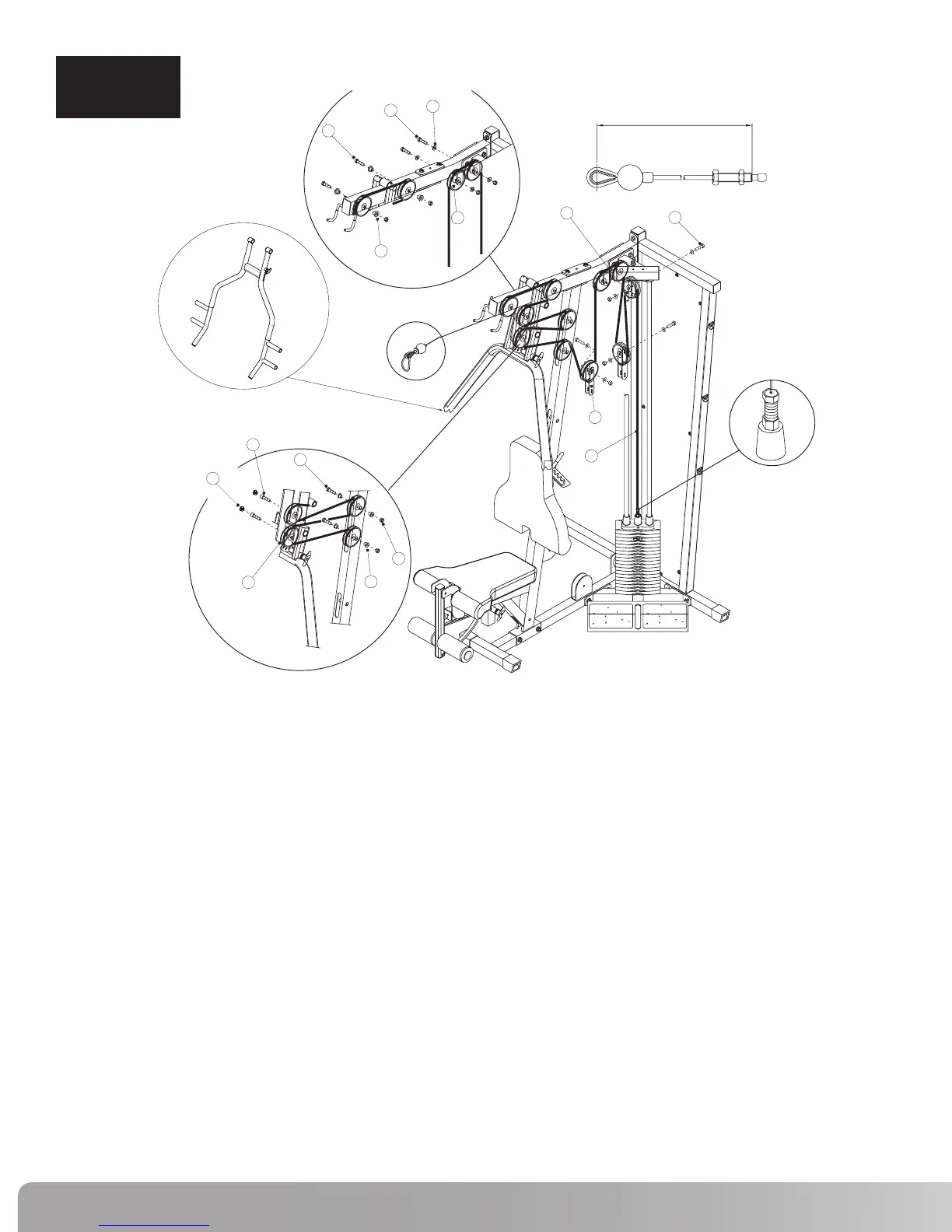

A. Thread one end of Cable #2 (42) into the Selector Rod/Top Plate Assembly as shown in Detail A. Do
not tighten locking nut.
B. Draw Cable #2 (42) over a 4 ½” Pulley (13) and place it in the Floating Pulley Bracket (12) making
sure that the lower section of the Floating Pulley Bracket (12) is located between the Guide Rods.
Attach Pulley to Bracket using hardware shown. Tighten hardware securely.
C. Loop Cable #2 (42) around a 4 ½” Pulley (13) and place it in a Double Floating Pulley Bracket (40).
Attach Pulley in the inner hole of the bracket using the hardware shown. Tighten hardware securely.
D. Draw Cable #2 (42) around two 4 ½” Pulleys (13) and place them in the brackets shown in Detail B.
Attach the Pulleys using hardware shown. Tighten hardware securely.
E. Repeat Step C using a second Double Floating Pulley Bracket (40).
F. Draw Cable #2 (42) around a 4 ½” Pulley (13) and place it in the upper slot of the Front Upright
Frame. Attach Pulley to the lower hole in the slot using hardware shown in Detail C. Tighten
hardware securely.
G. Loop Cable #2 (42) around a 4 ½” Pulley (13) and place it in Press Arm Support Assembly. Attach
Pulley using the lower hole using hardware shown in Detail C. Tighten hardware securely.
H. Loop Cable #2 (42) around a 4 ½” Pulley (13) and place it in the upper slot of the Front Upright
Frame. Attach Pulley to the upper hole in the slot using hardware shown in Detail C. Tighten
hardware securely.
I. Repeat Step G attaching the Pulley (13) to the upper hole.
J. Loop Cable #2 (42) around a 4 ½” Pulley (13) and place it in the Top Frame. Attach Pulley using
hardware shown in Detail B. Tighten hardware securely. Note: Leave end of Cable #2 inside the Top
Frame tube.
K. Feed Cable #2 (42) through the Top Frame tube and out the front slot. Draw Cable around a 4 ½”
Pulley (13). Attach Pulley in front slot using hardware shown in Detail B. Tighten hardware securely.
L. Attach Snap Caps (24) in Press Arm Support Assembly as shown.
13
24
40
42
51
54
59
61
63
66
4 ½” Pulley
Snap Cap - Large
Double Floating Pulley Bracket
Cable #2 - Pull Down (216.25”)
Hex Bolt 3/8” x 2 3/4”L
Hex Bolt 3/8” x 2”L
3/8” Flat Washer
3/8” Lock Nut
Step Spacer - 5/8”H
Cap Head Allen Screw 3”L
11
2
2
1
4
5
10
9
8
2
216.25 ” (5490mm)
24
51
54
59
51
54
12
42
63
63
13
40
13
61
66
2”L
2 3/4”L
2 3/4”L
2”L
3”L
C
D
B
A
NS200X Press Arm
