Belt Adjustment
Belts require tightening when a lack of resistance and uneven feel is noticed at the beginning of an
exercise. USE CAUTION AROUND THE WEIGHT STACK WHEN TIGHTENING BELTS.

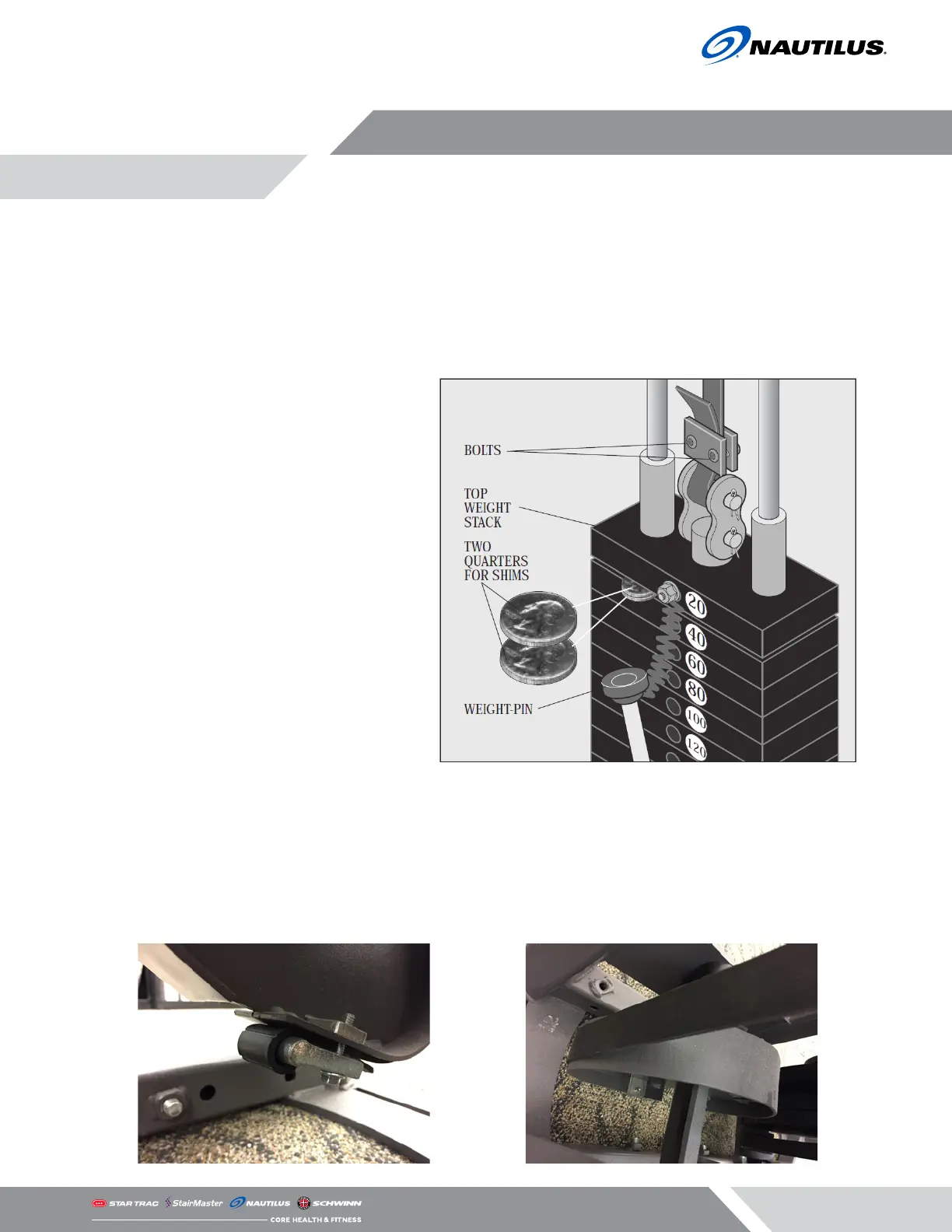

Adjustment procedure:
1. Remove the Shielding.
2. Remove the Tethered Weight-Pin from
weight stack hole.
3. Lift top weight using the appropriate
lifting mechanism - in most cases the
moving arms for exercising.
4. While top weight is suspended, insert a
shim between the rst and second weight
(two quarters will suce).
5. Release top weight so the rst stack is
resting on the shim.
6. Loosen the two bolts at the end of the
belt and pull through excess belting until
tight.
7. Tighten belt bolts and lift top weight to remove the shim.
8. Lower the mechanism to rest on the weight stack.
9. If belt is still loose, repeat this procedure until there is no looseness at the beginning of an exercise.
Note: On the ONE units the belt adjustment is inside the engine shrouds.
