Nautilus F3AT - Step 2: Assemble Left and Right Upright Weldments

12
Step 2: Assemble Left and Right Upright Weldments
Locate the following for this step:
Parts:
• Ref 5, Left Upright Weldment Qty. 1
• Ref 6, Right Upright Weldment Qty. 1
Hardware:
• Ref 7, 1/2”x 6 1/2” Button Head Bolt Qty. 2
• Ref 8, 1/2”x 6 3/4” Button Head Bolt Qty. 6
• Ref 10, 1/2” Nuts Qty. 6
• Ref 9, 1/2” Washers Qty. 14
Tools:
• Ref 16, 5/16” Allen Wrench
• 3/4” Wrench
Refer to Figure 2:
2-1 With the Assembly still on its back, place the Left
and Right Uprights in place and loosely secure
with 6 ½” bolts.
2-2 Lift the Tower to the upright position and
tighten all hardware.
2-3 Be sure the Tower is in its desired location at
this point and that the feet are all sitting level.

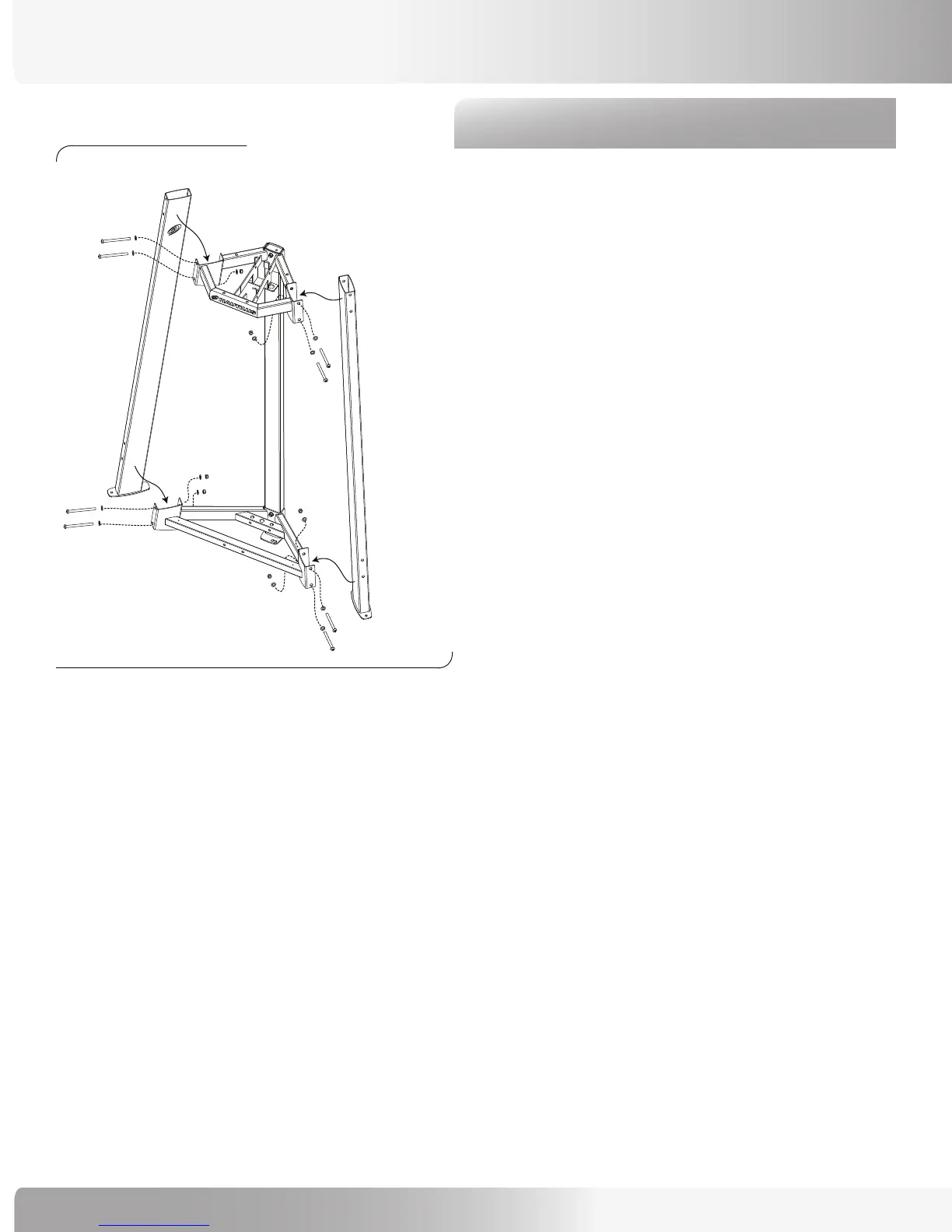

Figure 2:
ASSEMBLY GUIDE
