Nautilus® Commercial Free Weights Adjustable Tower Assembly Manual
Step 1: Assemble Triangle and Rear Upright
Weldments
Locate the following for this step:
Parts:
• Ref 7, Rear Upright Weldment Qty. 1
• Ref 5, Upper Triangle Weldment Qty. 1
• Ref 6, Lower Triangle Weldment Qty. 1
Hardware:
• Ref 6, 1/2”x 3 1/4” Button Head Bolt Qty. 3
• Ref 10, 1/2” Nuts Qty. 3
• Ref 9, 1/2” Washers Qty. 6
Tools:
• Ref 16, 5/16” Allen Wrench
• 3/4” Wrench
Refer to Figure 1:
1-1 With the Rear Upright on is back on a clear floor
area, insert three 3 1/4” bolts.
1-2 Place the Upper and Lower Triangle Weldments
in the proper locations and loosely tighten the
hardware.
The following instructions provide direction in assembling the Tower, Pulleys, Weights, and Cabling for the Nautilus
®
Commercial
Free Weights Adjustable Tower. All instructions in the manual are given with the orientation of standing on a level surface and
facing the Adjustable Tower.

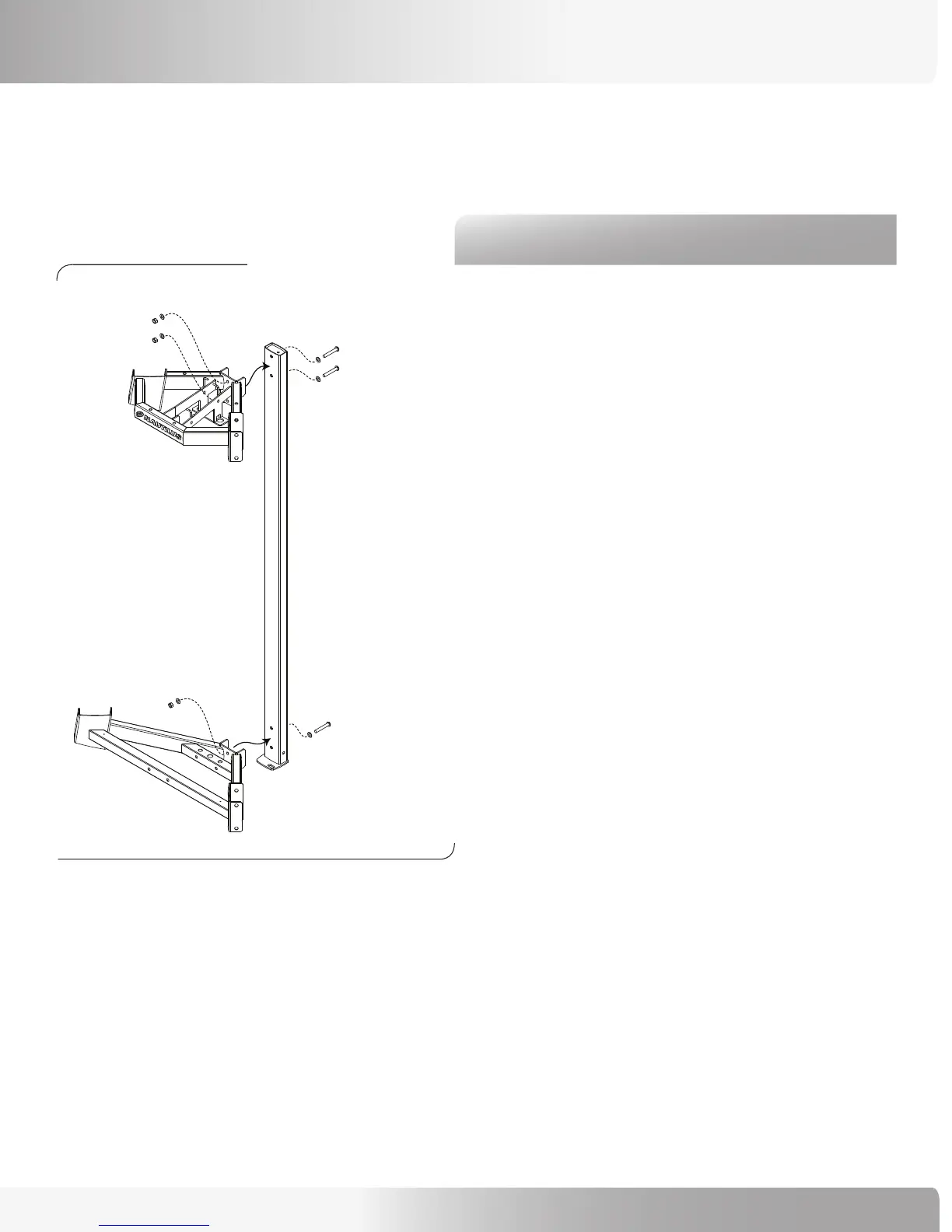

Figure 1:
ASSEMBLY GUIDE
