AIR FLOW DIAGRAM
Fig. 1 shows the operation stages of the machine. When the motor drives the compressor via the triangle belt, free
air enters the first stage cylinder through the filtration unit. When a certain level of pressure is achieved, the gas
enters into first stage cooling coil, which the air are cooled and transferred to second stage cylinder. The gas will be
further compressed and cooled in order to transfer the gas into the third stage cylinder, where the gas is to be further
compressed to the final necessary pressure. Then, the compressed air is passed through oil and water separator unit,
air filtration unit to further purify the air by removing unwanted impurities, condensate and vapor. Finally, the
compressed air passes through the pressure maintenance valve to produce clean, pure and odorless air.

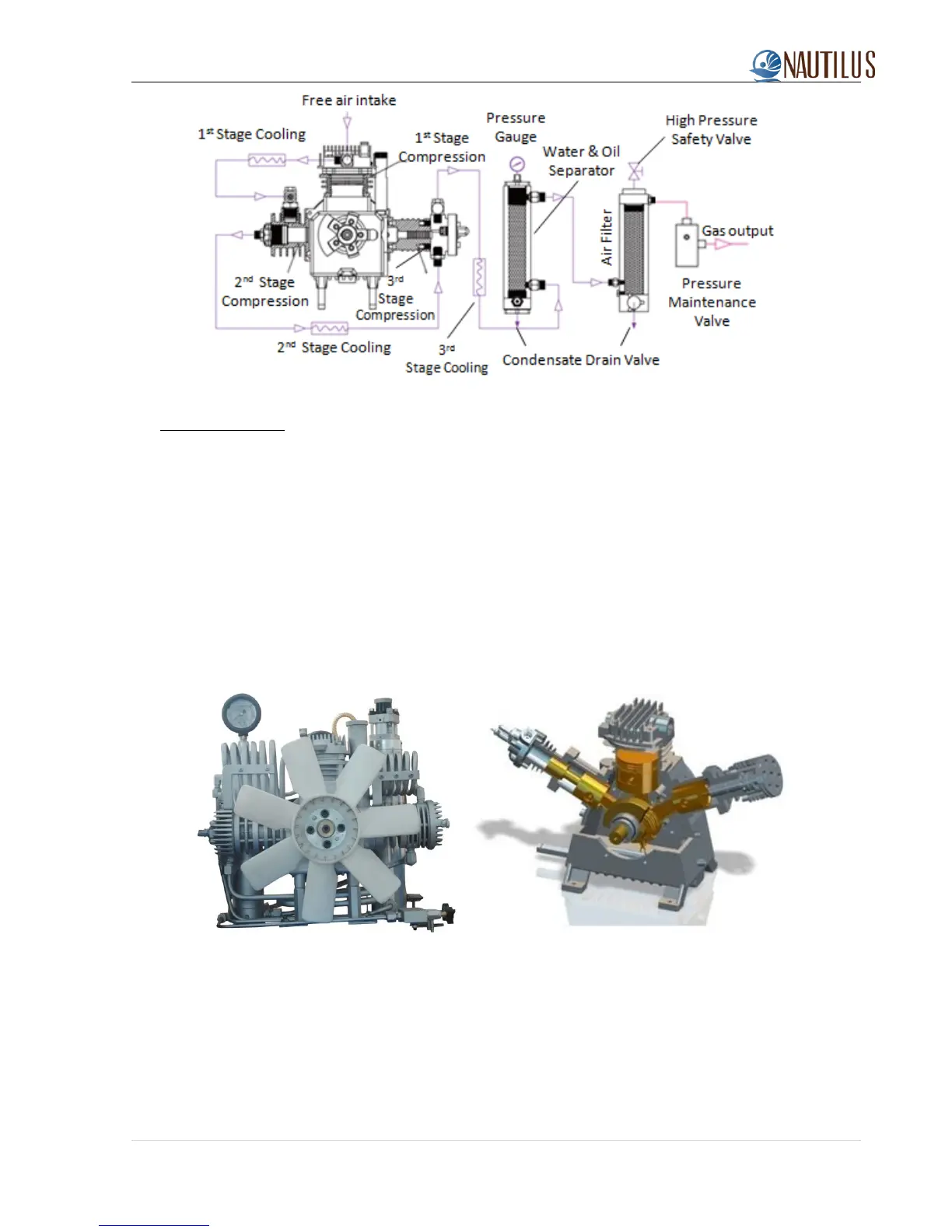

Figure 1: Air flow diagram
Figure 2: Compressor block NAUTILUS MINI
