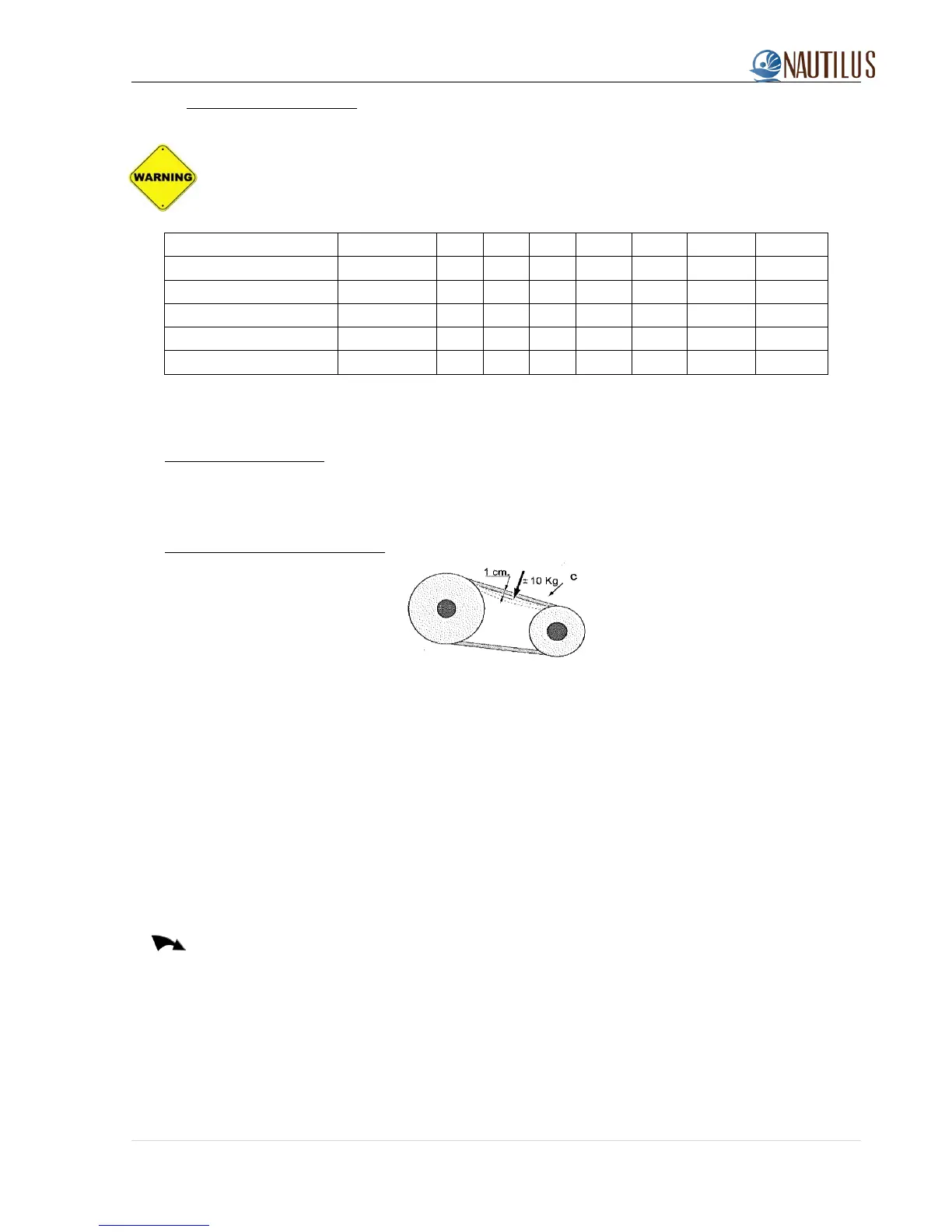

6. MAINTENANCE AND REPAIR
All maintenance tasks must be carried out with the compressor off and the power lead un-plugged from
the mains socket
Every Refill
5 h
25 h
30 h
50 h
100 h
1000 h
Annually
Oil level check
∆
◊
◊
Belt wear and tension
∆
◊
Air intake filter
∆
◊
◊
Safety valve check
∆
Hose and fitting check
∆
◊
∆ Check ◊ Replace
Oil level check and change
• Oil level must be checked every 25 hours. Oil must be replaced after 100 working hours or annually. For first
time operation, change the oil after 50 working hours.
Check drive belt tension and replace
Figure 6: Check drive belt tension
• To check belt tension, remove the cover by removing the fixing screws and exert a pressure of approximately
10kg on the belt. Check that the belt does not flex by more than 1 cm with respect to its original position.
• Should it flex more than this:
o Loosen the engine fixing screws and the cooling fan cover fixing screw
o If the belt is worn or close to its scheduled time for replacement, change it with a new one
o Remove the belt and withdraw the engine by about 5 mm
o Fix the screw and tighten the cooling fan cover fixing screw
o Re-fit the belt, re-check belt tension and re-fit the cover
A mixture of different compressor oil cannot be used.
• The drive belt must be replaced annually or every 1000 working hours of the compressor.
• If the tension of the new belt still fails to comply with the necessary requirement, contact Nautilus customer
service.
