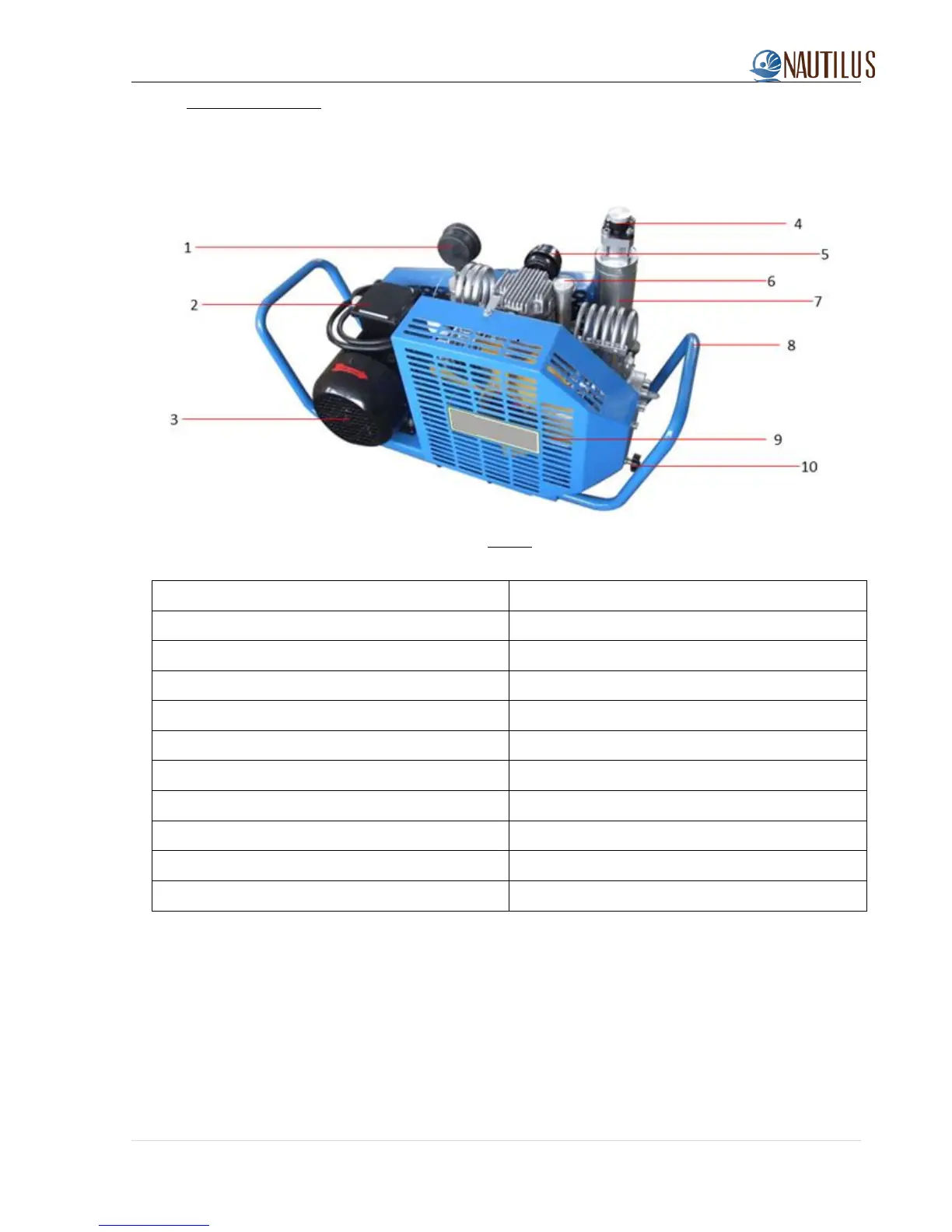

4. COMPRESSOR DESIGN
The main parts of the compressor are made up of: motor (electrical), multi-stage condenser, oil & water separator
housing, air filtration housing, pressure display, pressure control and pressure safety mechanism.
Electric
Label
Component
1
High pressure gauge
2
Motor terminal box
3
Single / Three-phase motor
4
Final pressure safety valve
5
Air intake
6
Compressor oil pipe
7
Filtration system
8
Handle
9
Fanwheel cover
10
Condensate drain valves
