Navico BR24 User Manual

Shortening the cable

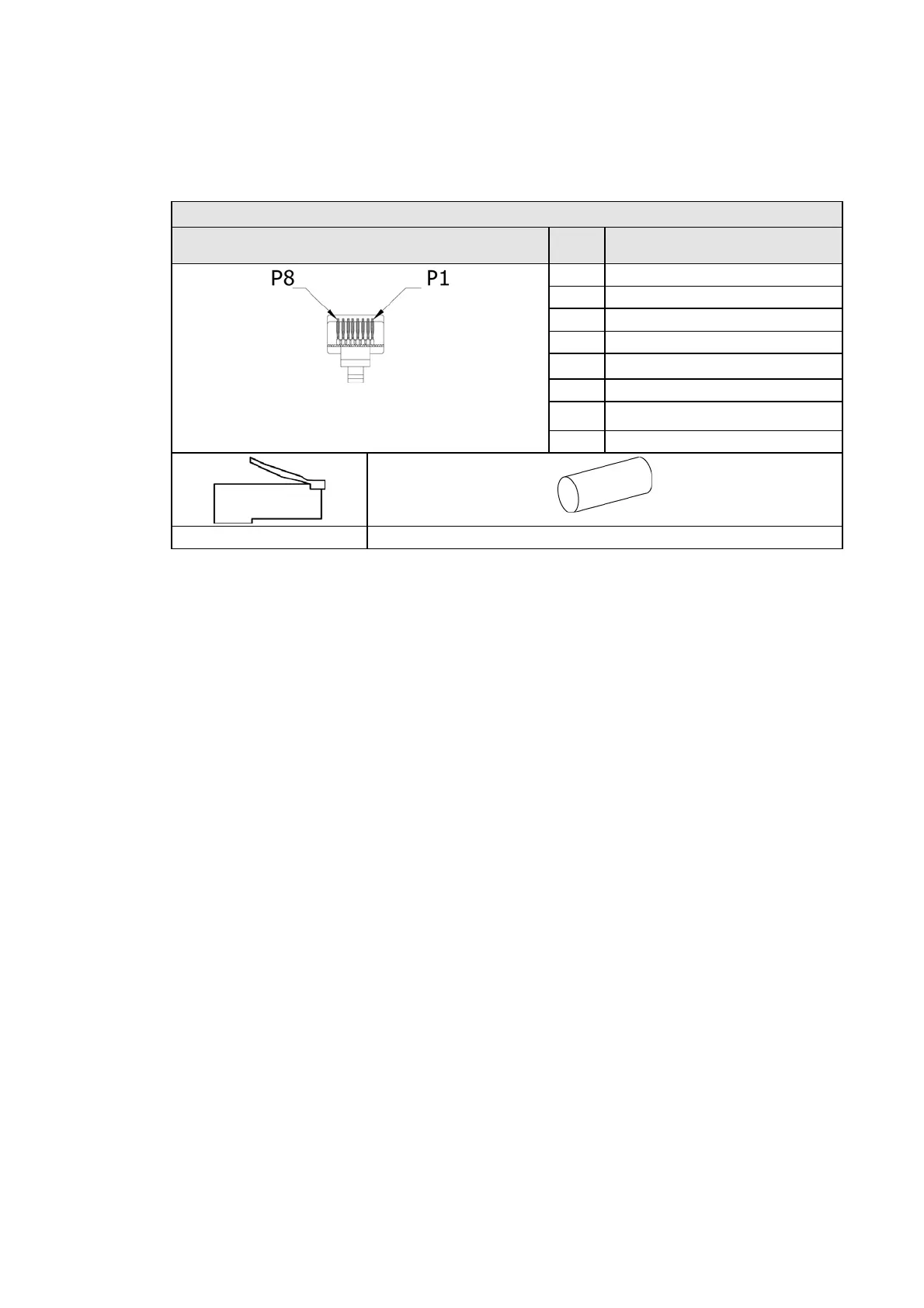

It is not recommended to shorten the cable, but if it is essential, use the pin-out below to re-
terminate the RJ45 connector
RJ45 Connector
RJ45 crimping tool is required Pin Color
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
RJ45 Connector 15 mm Heat shrink (10 mm dia)
Wiring the radar system | 15
