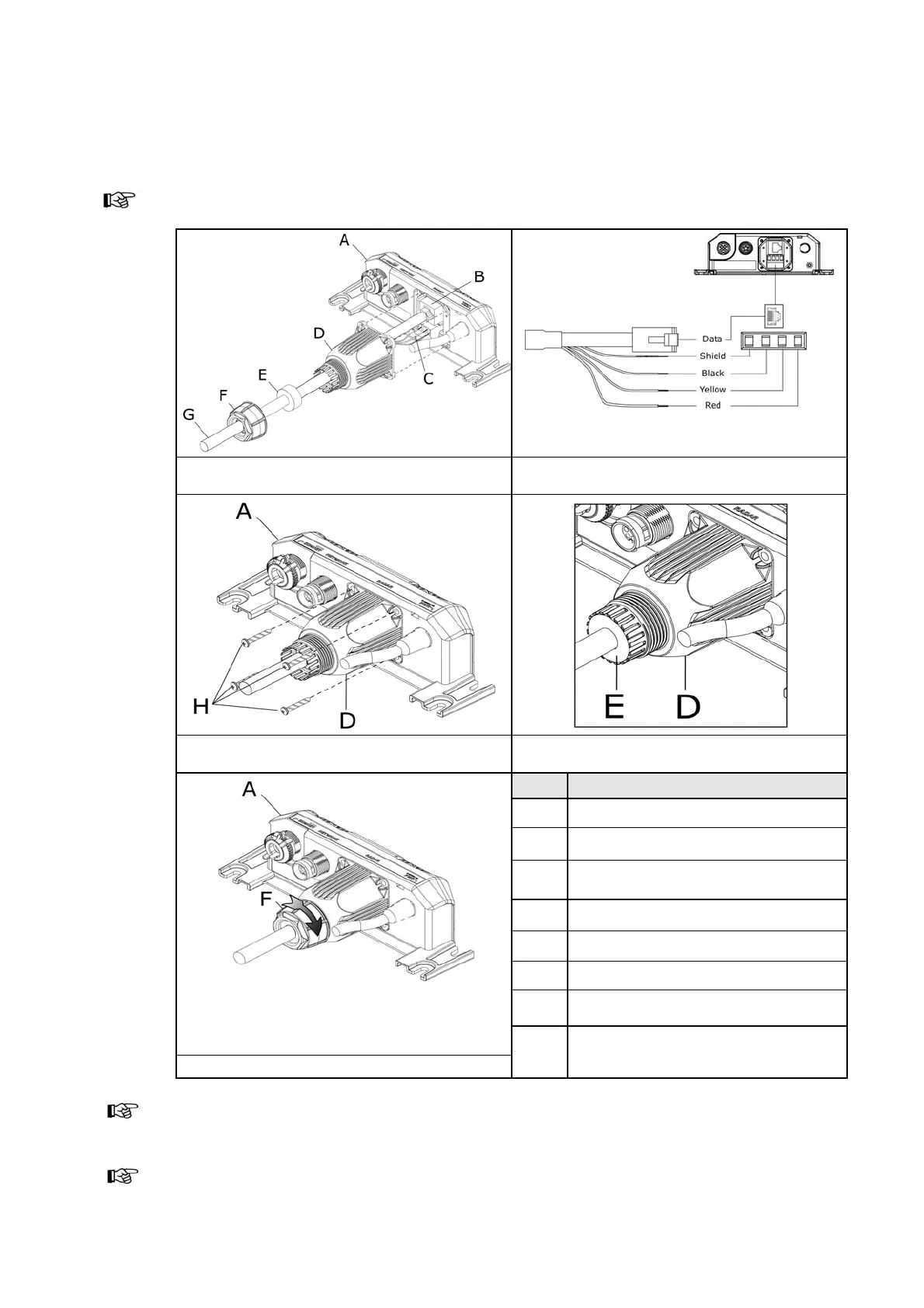

Connect the interconnection cable to radar interface box
To connect interconnection cable to Lowrance HDS (USA only) (see "Connect the Broadband
radar to your display
" page 16)
1. Slide (F), (E) and (D) over the RJ45 and data
wires of the scanner interconnection cable (G).
2. Connect RJ45 and data wires to the radar
interface box.
3. Secure (D) to the radar interface box using the
four supplied screws (H).
4. Slide (E) along the cable (G) and press into the
cable gland housing (D).
Key Description
A Radar interface box
B Radar data connector RJ45
C
Power
wires (see "Connect power" page
20)
D Cable gland housing
E Gland washer
F Lock nut
G scanner interconnection cable
H Screws x 4 M3x12 mm phillips pan head
5. Rotate (B) clockwise to secure.
To remove the scanner interconnection cable follow the above procedure in reverse
order.
To avoid damaging the connectors when removing the scanner interconnection cable,
it is important to remove the cable gland washer before trying to remove the cable
gland housing.
14 | Wiring the radar system
