Installation | NSPL-400 User Manual

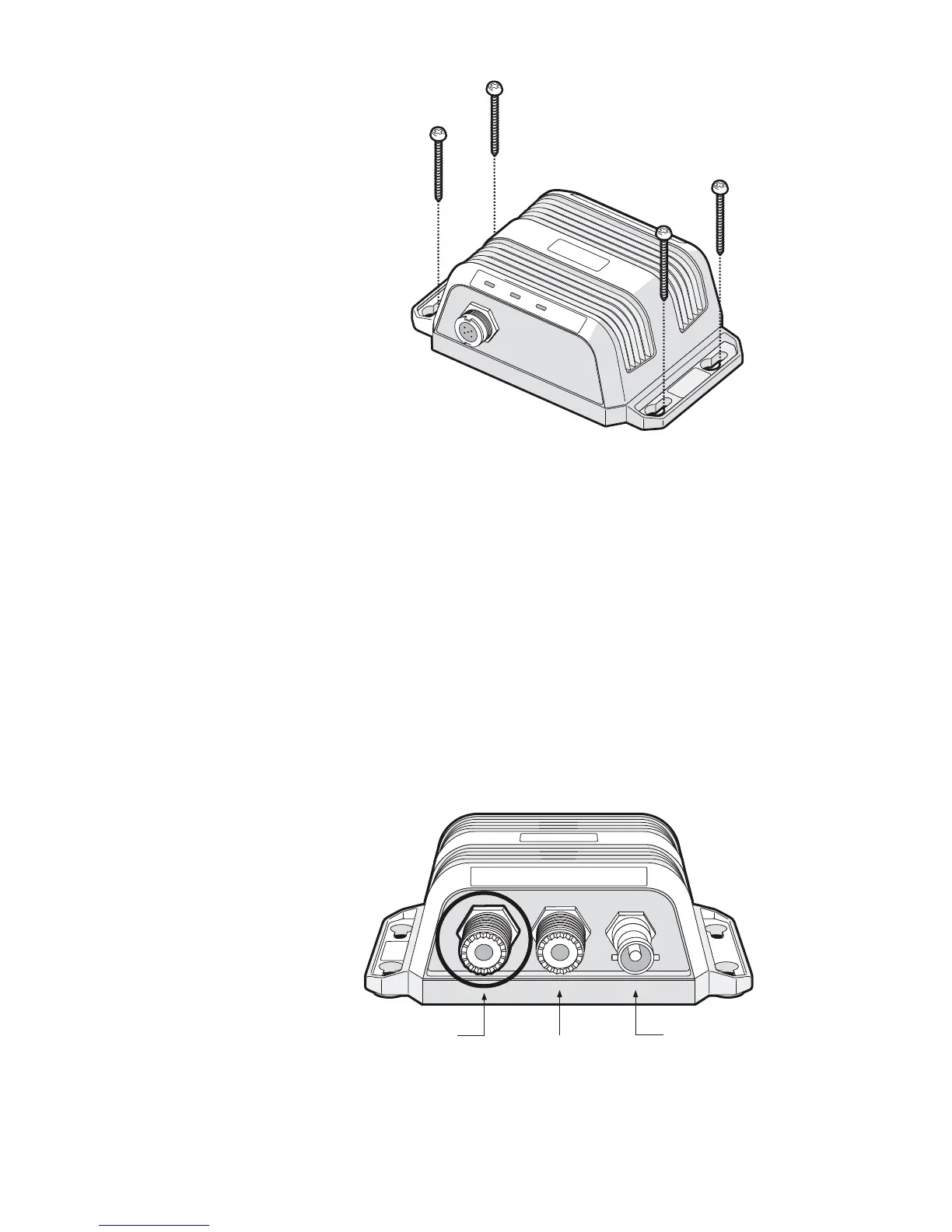

Fig. 5 Mounting

Figure 5 NSPL-400 mounting

Step 2 - Connecting the VHF antenna

Route the cable from the VHF antenna to the NSPL-400 and connect

to the VHF antenna connector on the NSPL-400 as shown in Figure

A standard marine band VHF antenna or AIS antenna should be

used with the NSPL-400. The connector type on the NSPL-400 is

SO239. Your chosen VHF antenna requires a PL259 connector to

mate with this. If your VHF antenna does not use this type of con-

nector please contact your dealer for details of available adaptors.

Fig. 6 Location - VHF

AIS transceiver

VHF radio

VHF antenna

VHF radio

AIS transceiverVHF antenna

Figure 6 Position of the VHF antenna connector
