67Installing a Cascade System
Ɣ

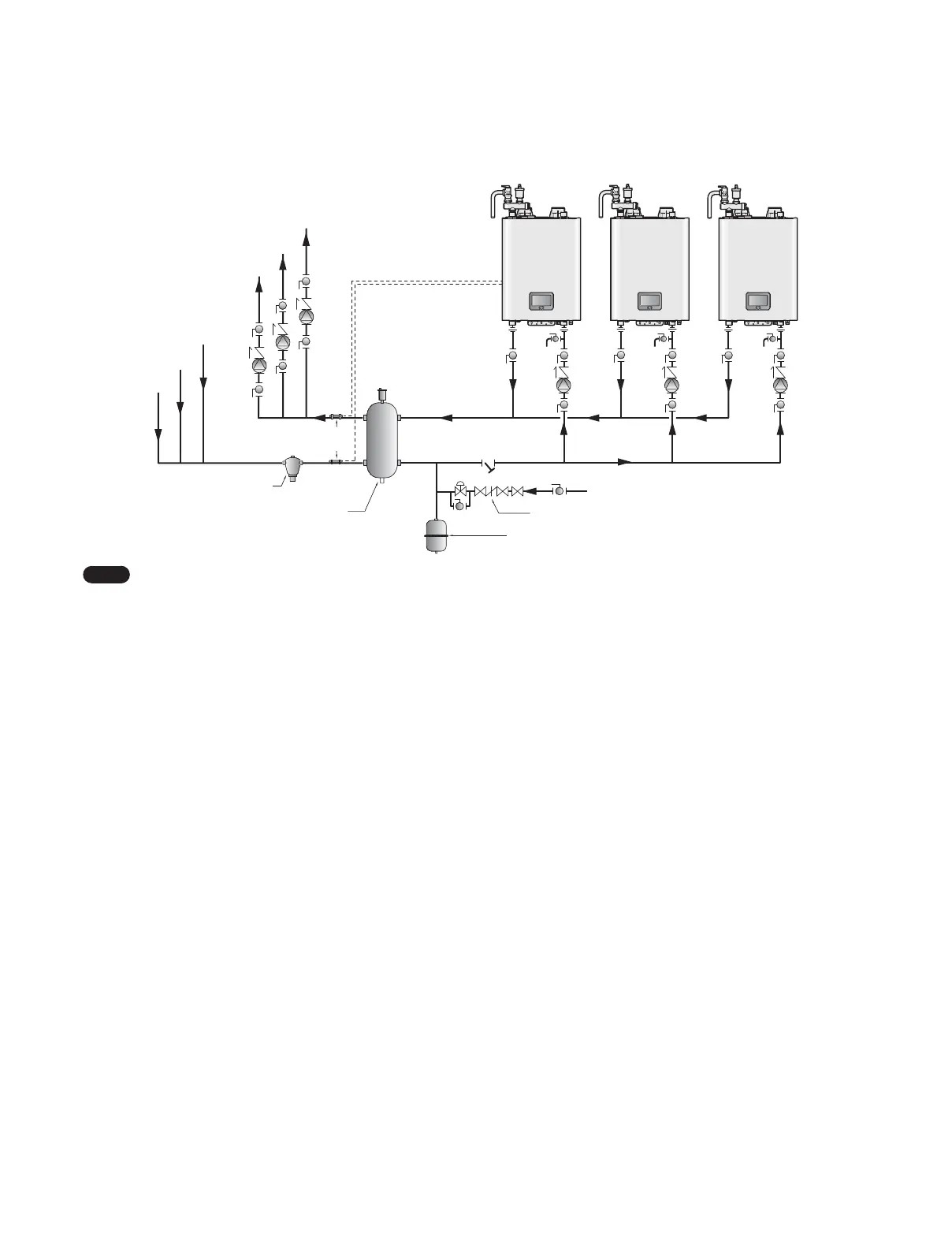

System Application #2- Cascade System with Hydro Separator
Sub2
Sub1Main
Cold water
Supply
Return
Dirt collector
Hydro/Air separator
Back flow preventor
Expansion tank
Temperature
sensors (required)
Note
Ɣ
Connect the “SH Demand (SH T/T or Zone controller)” to the main unit.
Ɣ
Connect the universal temperature sensors to SUPPLY and RETURN terminals of the CNT1/CNT2 terminal strip on the main unit
PCB.
Ɣ
Connect the outdoor sensor (optional) to the main unit.
Ɣ
Depending on the installation environment, the supply top and return top piping option can be applied.
