SECTION 5 – MAINTENANCE SCHEDULE AND SERVICE PROCEDURES
Service Procedures (cont.)
WATER SEPARATOR
Service Interval: Before Engine Operation
GOVERNMENT REGULATION: Engine fluids
(oil, fuel, and coolant) may be a hazard to human
health and the environment. Handle all fluids and
other contaminated materials (e.g. filters, rags) in
accordance with applicable regulations. Recycle
or dispose of engine fluids, filters, and other
contaminated materials according to applicable
regulations.
WARNING: To prevent personal injury or death, do not
smoke and keep fuel away from flames and sparks.
WARNING: To prevent personal injury or death, store
diesel fuel properly in an approved container designed for
and clearly marked DIESEL FUEL.

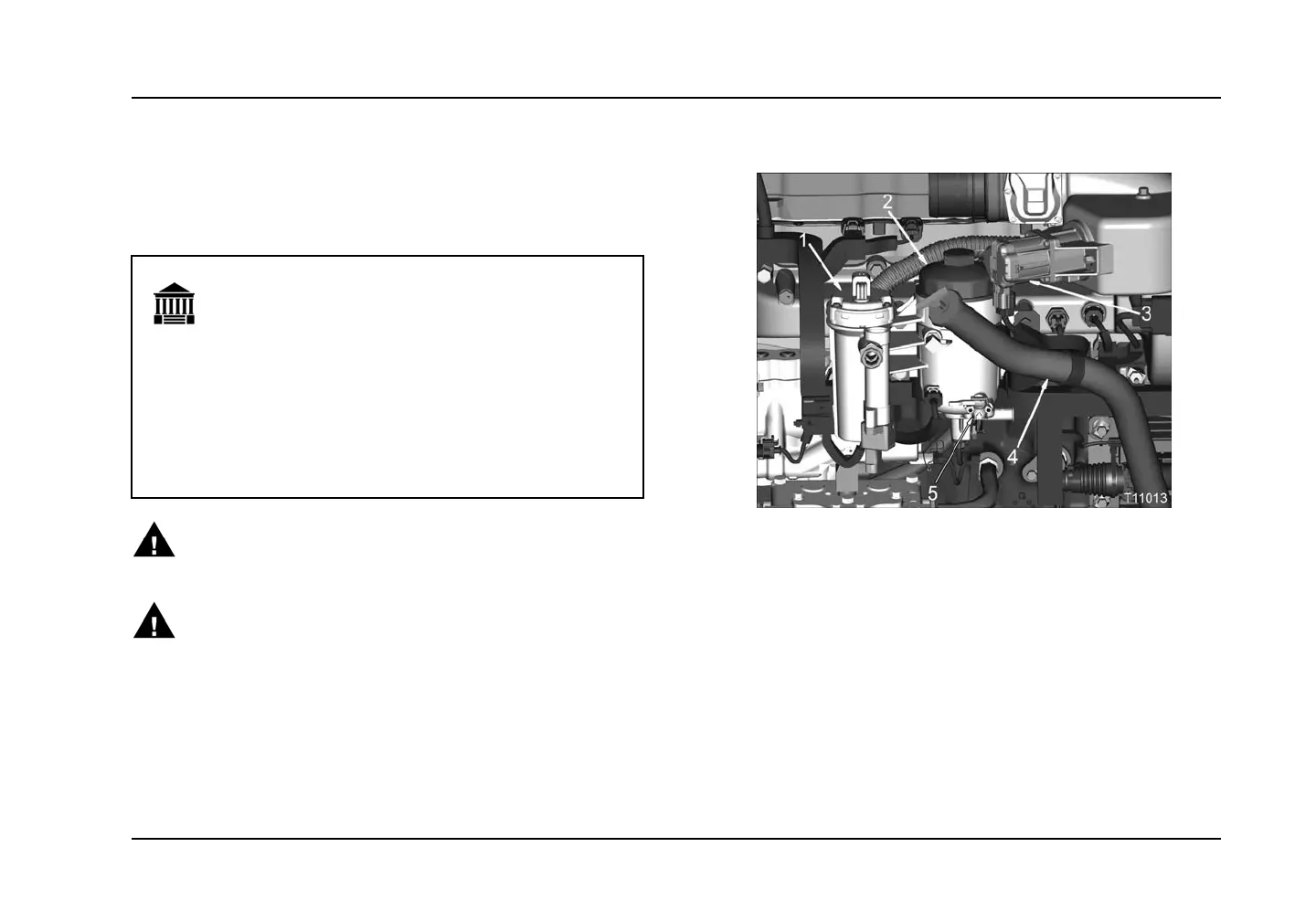

Figure 28 Fuel filter header assembly
1. Electric fuel pump
2. Fuel filter cover
3. Exhaust Gas Recirculation (EGR) valve
4. Oil fill tube
5. Water drain valve
1. If necessary, connect a hose to the end of the water drain
valve.
Form No. 1172040R1
Printed in the United States of America Page 65
To Next Page
