SECTION 5 – MAINTENANCE SCHEDULE AND SERVICE PROCEDURES
Service Procedures (cont.)
CENTRIFUGE FILTER (IF EQUIPPED) (cont.)

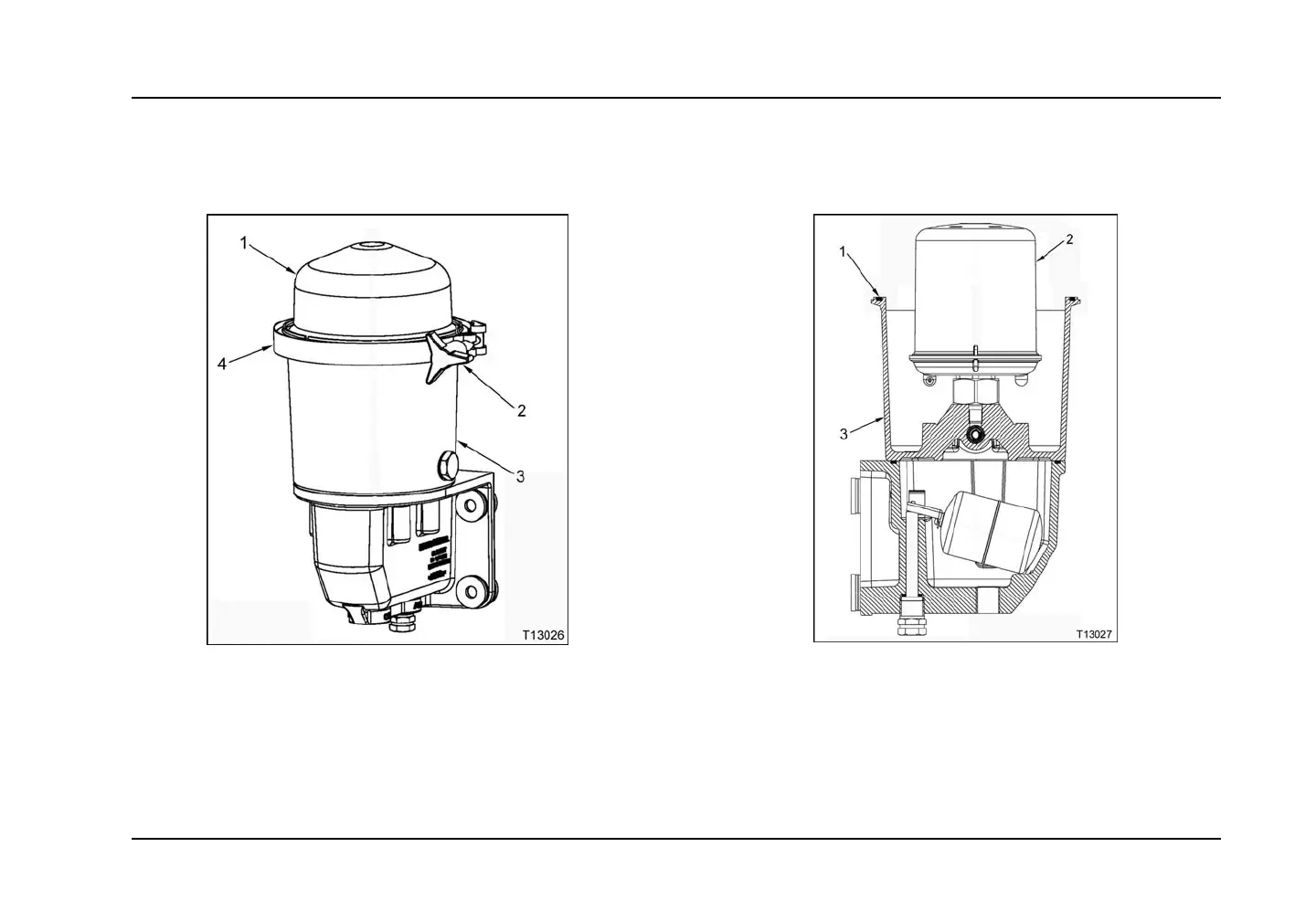

Figure 33 Centrifuge filter assembly
1. C over assembly
2. Band clamp handle
3. Body asse mbl y
4. Band clamp
Figure 34 Centrifuge rotor
1. O-ring
2. Rotor
3. Body assembly
