NAVITAS TAC 2 User Manual

INSTALLATION/ SERVICE MANUAL
18
5. Mount Controller
• Install Navitas AC controller (Fig. 3)
• Attach Run/Tow switch mount and fasten Run/Tow
switch to mount.
• Connect B- from battery, B+ from solenoid and
motor phase cables to U, V, W (use new cable
provided as ‘W’ and re-use the 2 existing motor
phase cables from A1=U, A2=V) to the controller
(Fig. 5)
6. Motor Conversion
• Remove motor phase cables A1, A2 from motor
• Remove and DISCARD eld cables (F1, F2)
• Remove DC motor
• Install Navitas AC motor
• Connect new speed sensor/motor temp harness to
motor (Fig. 4)
• Connect motor phase wires from controller (A1 =U,
A2 = V and new cable = W) (Fig. 6)
• Check cabling to make sure U, V, and W match
exactly from motor to controller (Fig. 6)
7. Connect OEM Harness to Adaptor Module
8. Connect Speed Sensor/Motor Temperature Wire
Harness to Controller (Fig. 5)
9. Install On-The-Fly Programmer (optional)
• Install OTF (optional) (see install description in RXV
INSTALL instructions, p12)
• Connect OTF to Navitas Controller
• Zip Tie loose cables
10. Test Installation
• Lift rear wheels
• Reconnect battery pack
• Put in “RUN” mode
• Turn key on
• Put in “F” for Forward
• Press on throttle to activate wheels
INSTALLATION INSTRUCTIONS
E-Z-GO DC to AC Conversion cont’d

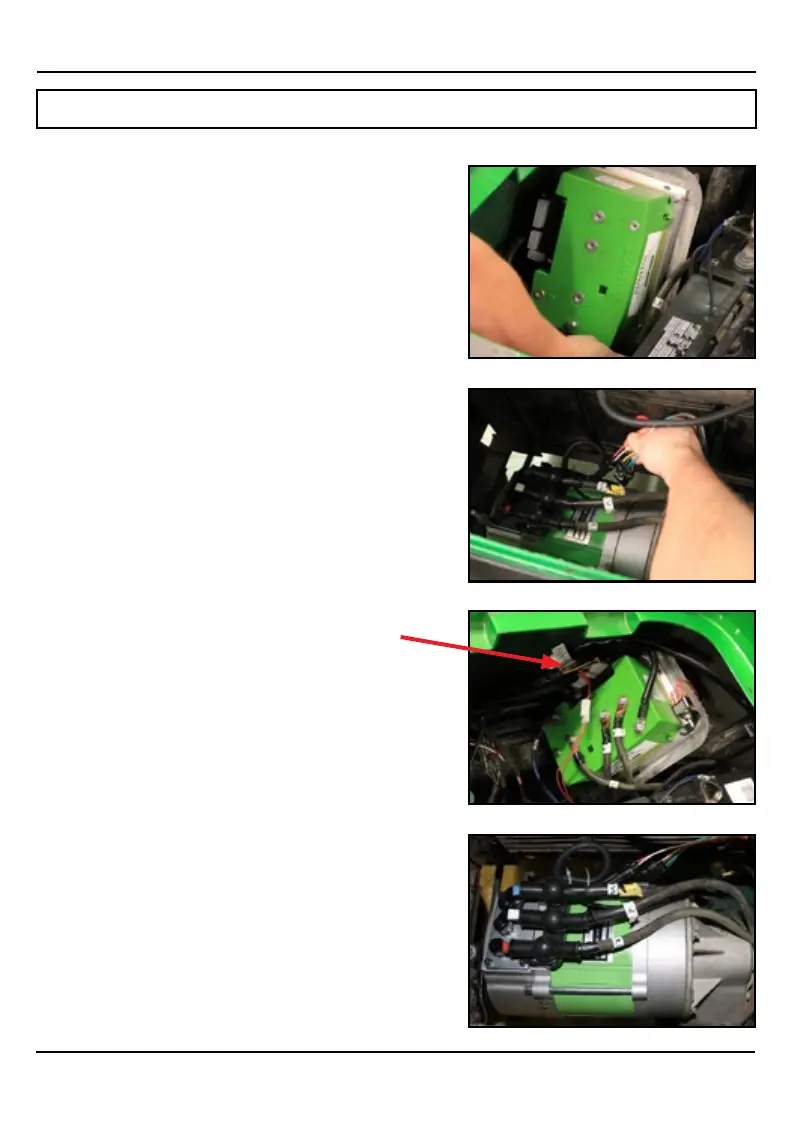

Fig. 3
Fig. 4
Fig. 5
Fig. 6
