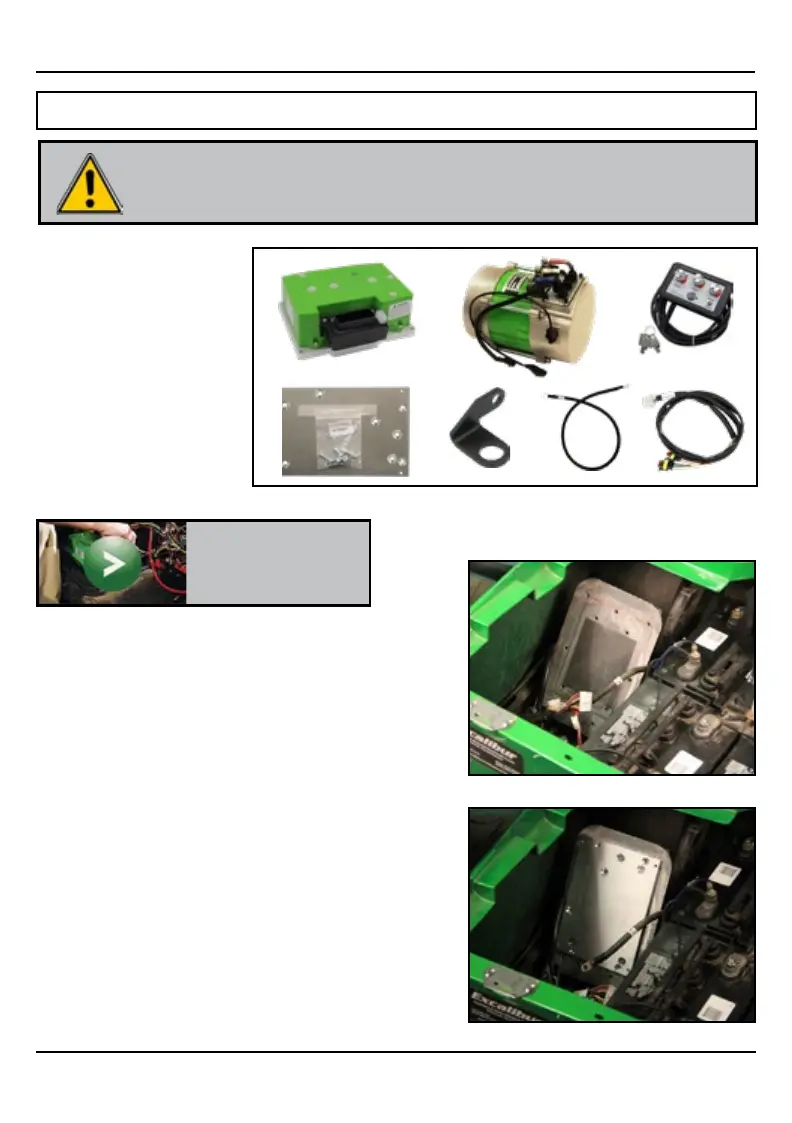

INSTALLATION/ SERVICE MANUAL
17
1. Power down
• Turn off key, disconnect battery
• Put car on a stand and block wheels
• Use insulated tools
• Never use battery as workbench
2. Remove OEM Protective Cover
• Remove cables from controller
• Unclip OEM Wire Harness
3. Remove OEM Controller
4. Install TXT Mounting Plate
• Align plate with existing holes (where OEM controller
was fastened) and fasten with screws (Fig. 2)
INSTALLATION INSTRUCTIONS
E-Z-GO DC to AC Conversion
Disconnect all batteries before beginning installation.
If the car has a run/tow switch, you must place the
switch in the TOW position rst!
CAUTION
PARTS INCLUDED
• AC Controller
• AC 4 kW motor
• On-The-Fly programmer
(Optional)
• Mounting plate and
hardware
• Run/Tow switch mount
• Motor phase cable
• Speed sensor/motor
temperature harness
To view our Installation
video for Golf Cars, visit:
NavitasVS.com/support
Fig. 1
Fig. 2
