NAVITAS TAC 2 User Manual

INSTALLATION/ SERVICE MANUAL
16
INSTALLATION INSTRUCTIONS
RXV 23 (Danaher) Installation cont’d
Pinout for Controller
Diagrams and other updates available at:
NavitasVS.com/support
P1: Key In P2: Brake Solenoid Out P3: +5V PF P4: AGND P5: SPD A In
P6: SPD B In
P7: Brake In P8: NA P9: Throttle In
P10:Reverse Buzzer Out P11:SOC Display Out P12:Forward In P13:Tow Switch In P14:NA P15:NA P16:Motor Temperature In P17:Charger Interlock In
P18:MAIN Solenoid Out P19:Foot Switch In P20:Reverse In P21:NA P22:Brake Light Relay Release
P23:NA
To OEM vehicle harness
To OTF Programmer
PN: 10-000686
P1: +12V PF P2: OTF Regen P3: OTF speed P4: OTF acceleration P5: +5V PF P6
: OTF Lock
P7: OTF LED P8: Analog Ground

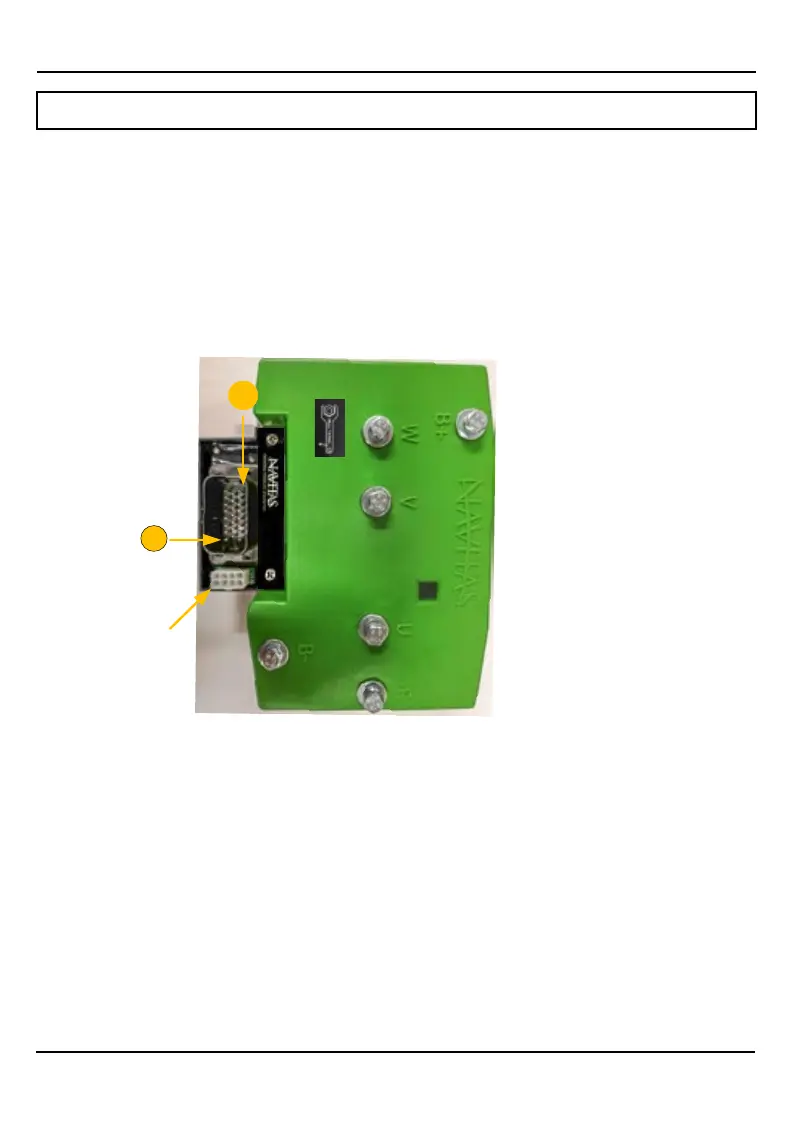

Navitas TAC2 AC Motor Controller
for EZ-GO RXV Danaher
Product Model 10-000878-02
8-POS Molex
39-28-1083
23-POS Ampseal
776228-1
23
1
Module 40-000623
TAC2 for RXV Danaher
OTF
Issue Date: 20181219
Navitas TAC2 AC Motor Controller
for EZ-GO RXV Danahar
Product Model 10-000880-01 (440A)
10-000880-02 (600A)
