NAVITAS TAC 2 User Manual

INSTALLATION/ SERVICE MANUAL
11

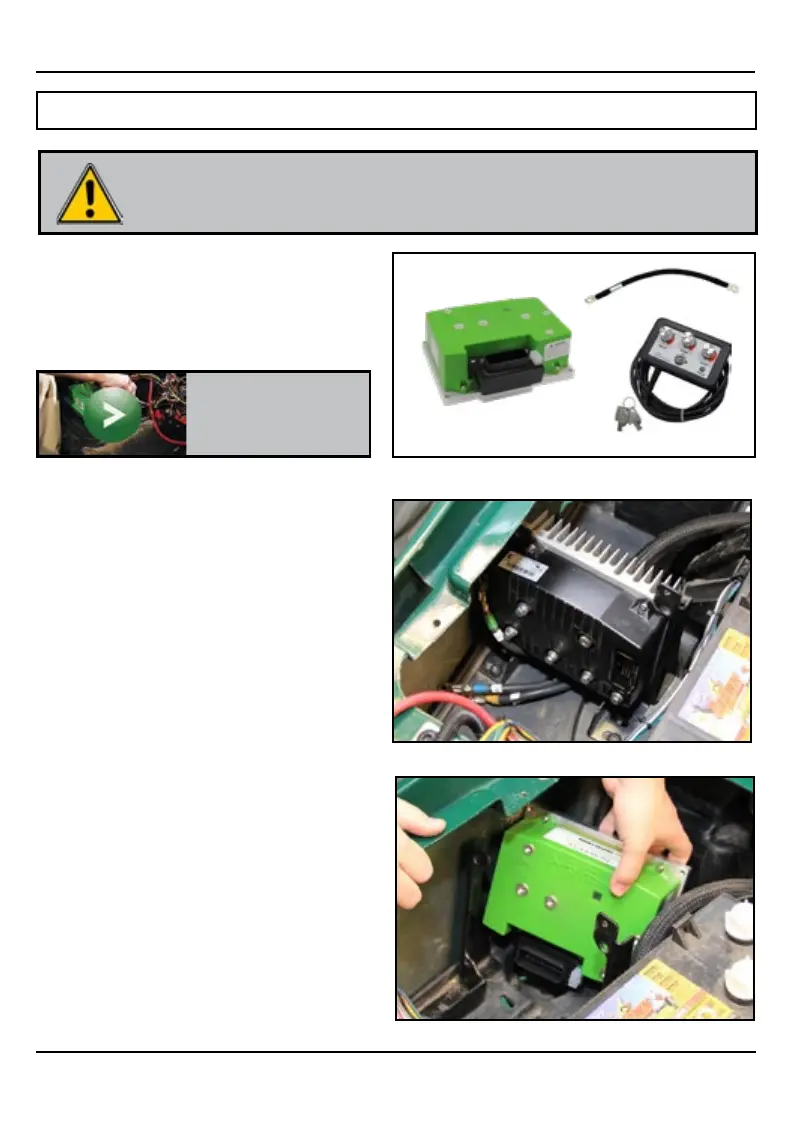

INSTALLATION INSTRUCTIONS
1. Power down
• Turn off key, disconnect battery
• Put car on a stand and block wheels
• Use insulated tools
• Never use battery as workbench
2. Remove OEM Controller
• Remove OEM protective cover
• Remove the battery positive bus bar
• Remove resistor wires
• Remove battery negative cable
• Remove resistor cage with solenoid
• Unplug Harness
• Remove motor phase cables.
• Unbolt and remove the controller
3. Install Navitas TAC 2 Controller
• Route motor cables to new controller
around outside of controller mount
• Remove bolts, washer, lock washer from
top of new controller.
• Fasten TAC 2 Controller to existing
mounting bracket using original hardware
(
Fig. 2)
PARTS
• AC controller
• B+ cable (for solenoid to controller)
• On-The-Fly programmer
Disconnect all batteries before beginning installation.
If the car has a Run/Tow switch, you must place the
switch in the TOW position rst!
CAUTION
RXV Installation
To view our Installation
video for Golf Cars, visit:
NavitasVS.com/support
Fig. 1
Fig. 2

NAVITAS TAC 2 Specifications

General

Brand	NAVITAS
Model	TAC 2
Category	Controller
Language	English
