NAVITAS TAC 2 User Manual

INSTALLATION/ SERVICE MANUAL
12
INSTALLATION INSTRUCTIONS
4. Connect Navitas TAC 2 Controller (Fig. 3)
• Connect cables using bolts, washers and
lock washers: U to U, V to V, W to W
• Fasten NEW battery positive cable (B+ from
controller to solenoid)
• Re-fasten resistor cage with solenoid
mounted on it.
• Add battery positive cable to solenoid
and add black lead from resistor on top of
battery cable and tighten w/13mm wrench
or socket
• Tighten back positive terminal
• Add wire from the resistor to the “resistor
output” of the controller and tighten
w/10mm wrench or socket
• Connect battery negative cable - Tighten w/10mm wrench or socket.
5. Connect RXV OEM harness (Fig. 3)
• Insert RXV OEM harness into adapter module
• The Programming end of the CURTIS harness will NOT be used
• Re-connect the cover.
6. Install On the Fly Programmer (Optional)
• Unclip the three nuts to remove cup holders
• Feed end of cable through body hole on the dash and leave enough slack to mount the OTF on
the dash
• Mount on On-the-Fly programmer on the dash w/ Velcro strap
• Feed cable back through the channel to the oor and chase back following wiring harness to
the Navitas adaptor module and connect it. Zip tie cable to the factory wiring harness
• Connect OTF programming end into the adaptor module, and connect original controller
harness into adaptor module;
• Zip tie motor phase wires to resistor cage
• Original communication plug from OEM controller not used
• Re-Connect cover
• Mount OTF on the dash
• Re-power the system by Connecting battery connection.
7. Test installation
• Lift drive wheels off ground
• Reconnect battery pack
• Switch to Run mode
• Turn key to Forward
• Press on throttle to activate wheels
.
RXV Installation cont’d

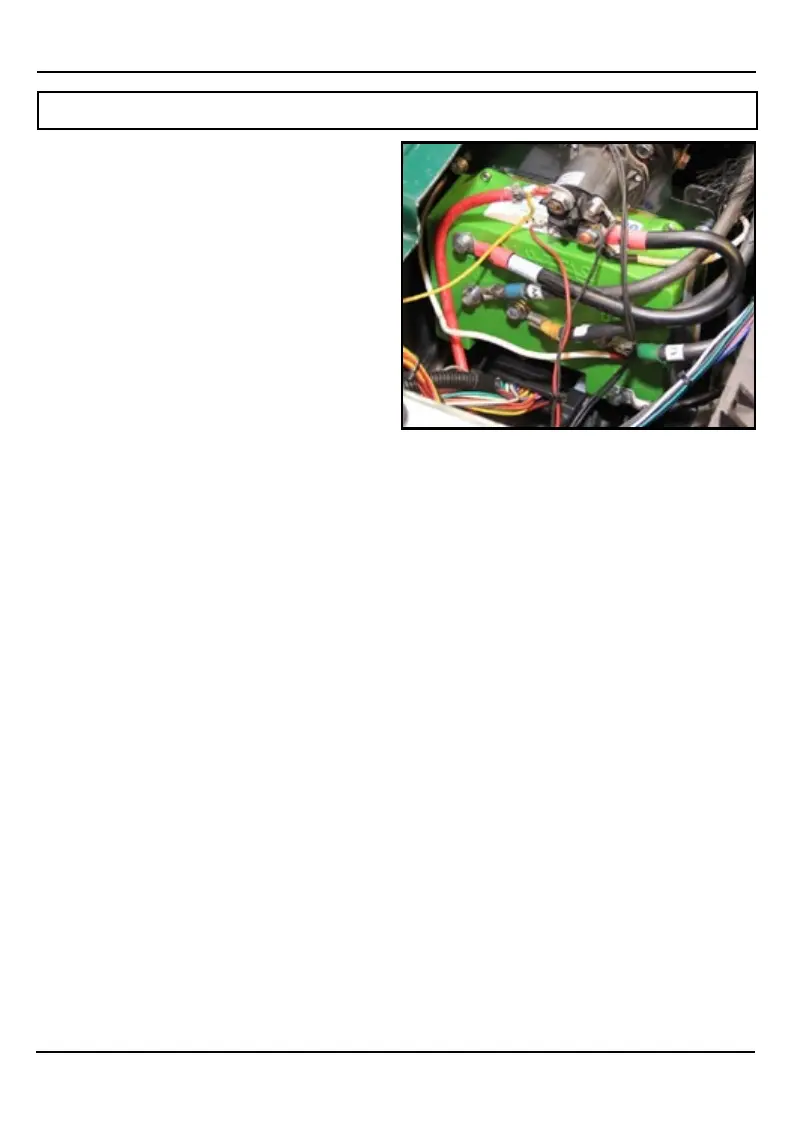

Fig. 3
