NAVITAS TAC 2 User Manual

INSTALLATION/ SERVICE MANUAL
13
INSTALLATION INSTRUCTIONS
RXV Installation cont’d

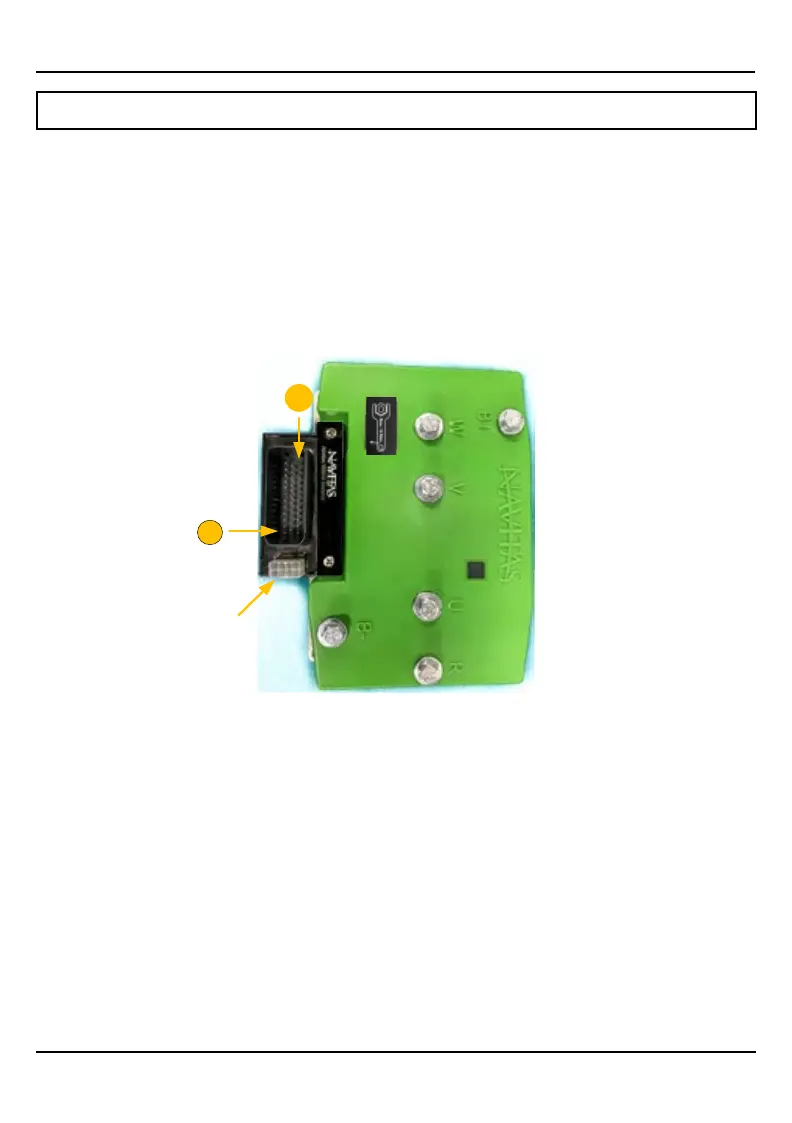

Pinout for Controller
Diagrams and other updates available at:
NavitasVS.com/support
To OEM vehicle harness
P1: Key In P2: Reverse Buzzer P3: NA P4: Brake Light Relay Release
P5: Brake Solenoid Out P6: Main Solenoid Out P7: Logic Power GND P8: Motor Temperature In P9: Foot Switch In P10:Tow Switch In P11:Charger Interlock In
P12:Brake Switch In P13: NA P14: NA P15:+5V PF P16:Throttle In P17:Brake In P18:Anolog GND
To OTF Programmer
PN: 10-000686
P1: +12V PF P2: OTF Regen P3: OTF speed P4: OTF acceleration P5: +5V PF P6: OTF Lock P7: OTF LED P8: Analog Ground
Navitas TAC2 AC Motor Controller
for EZ-GO RXV
Product Model 10-000878-01
35-POS Ampseal
1-776231-1
8-POS Molex
39-28-1083
P19:NA P20:NA P21:NA P22:Forward In P23:CAN Positive P24:NA P25:+12V Output P26:+5V PF P27:NA P28:NA P29:NA P30:SOC Display Out P31:SPD A In P32:SPD B In P33:Reverse In P34:Analog Ground P35:CAN Negative
35
1
Module 40-000620
TAC2 for RXV
OTF
Issue Date: 20181219
Navitas TAC2 AC Motor Controller
for RXV
Product Model 10-000880-01 (440A)
10-000880-01 (600A)
