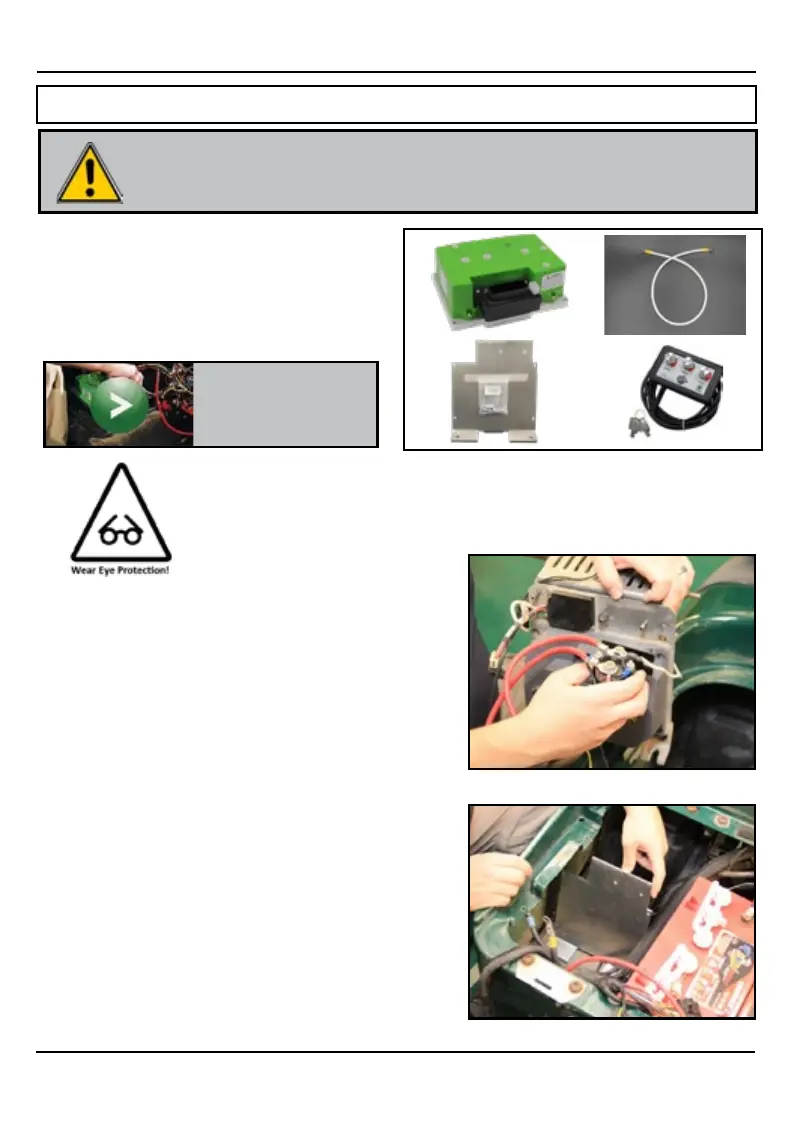

NAVITAS TAC 2 User Manual

INSTALLATION/ SERVICE MANUAL
14
1. Power down
• Turn off key, disconnect battery
• Put car on a stand and block wheels
• Use insulated tools
• Never use battery as workbench
2. Remove OEM Controller
• Remove OEM Protective cover
• Remove solenoid (
Fig. 1) - keep wires connected
• Remove resistor cage
• Remove motor phase cables and resistor cable,
B- cable from controller
• Unclip Harness wires
• Remove plate (along with Danaher controller
and black resistor module and wires)
3. Install New Mounting Plate (Fig. 2)
• Install plate in existing location using OEM
hardware.
INSTALLATION INSTRUCTIONS
RXV 23 (Danaher) Installation
Disconnect all batteries before beginning installation.
If the car has a run/tow switch, you must place the
switch in the TOW position rst!
CAUTION
Parts:
• AC Navitas controller with Bluetooth
• On-The-Fly programmer (optional)
• Mounting plate and hardware
• Resistor wire (longer for replacement)
To view our Installation
video for Golf Cars, visit:
NavitasVS.com/support
Fig. 1
Fig. 2
