- Registered to 3G network
Signal strength indication*:
-113 to -82 dBm or less
-81 to -70 dBm
-69 to -51dBm or more
- GSM/GPRS data session active; (connection established)
G double pulse
R pulse (0,4 Hz)
B pulse (0,4 Hz)
G pulse (0,4 Hz)
Same color more frequent
pulse (2Hz)
Interface activity / battery charge indication – RGB LED 2:
- Data transfer; active interface: RS485
B- query / respond
Table 4-2. *Default values indicated. Signal strength is check every 20 seconds. Signal
indication level can be changed in the Menu
Note! The controller is powered on if any of the indicator defining signal strength is on (pulse).

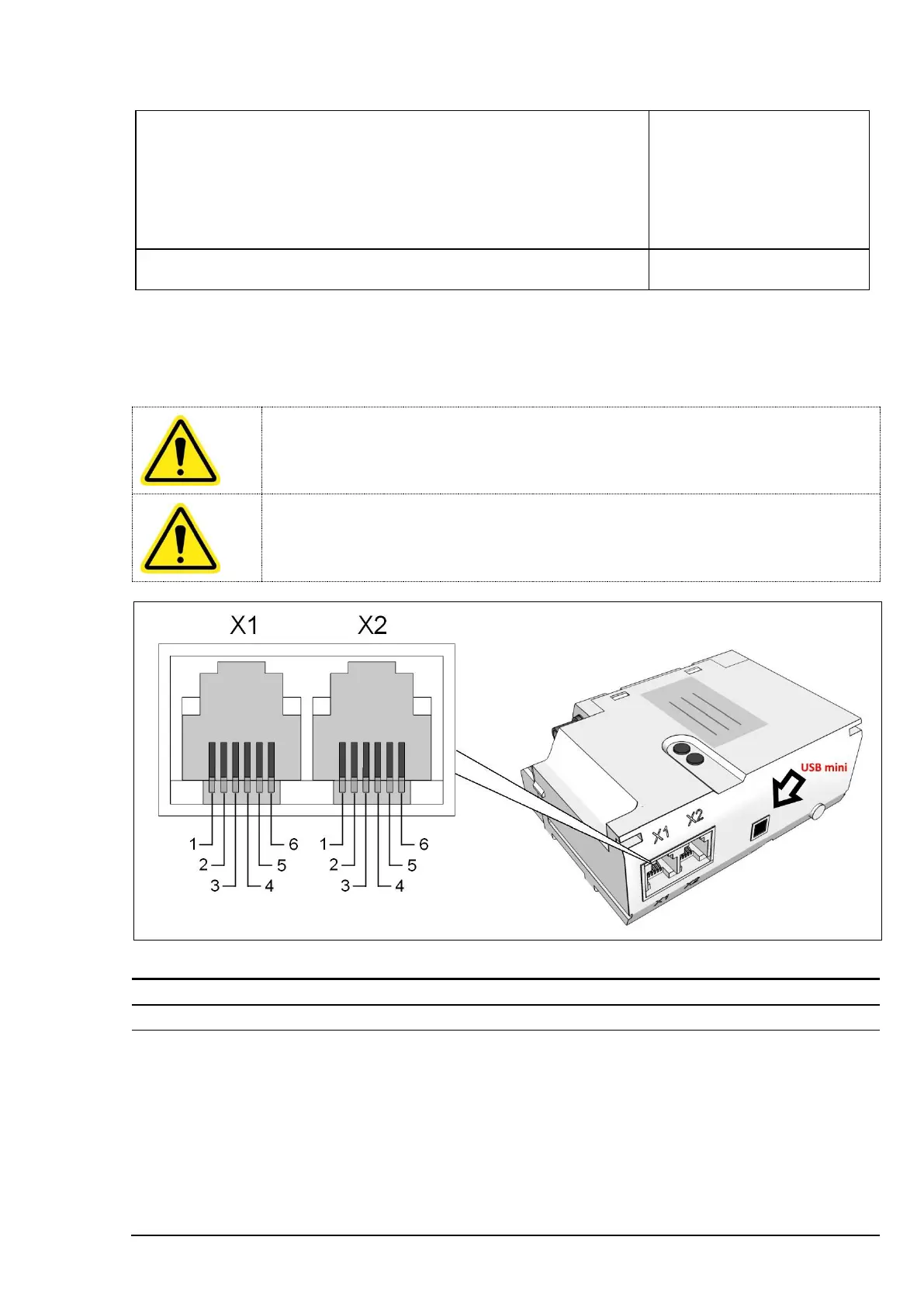

6. Connecting interfaces
Important: Before proceeding, please ensure the device will remain clean and dry
during the installation and no liquid or other substance will remain inside as that could
severely affect device performance and warranty.
Important: PIN code of a SIM card must be disabled prior the installation
PIN
Signal
Source
Comment
- X1 -
1
GND
-
Configuration interface (RS232)
2
RS232 TXd
Out
Configuration interface (RS232)
3
RS232 RXd
In
Configuration interface (RS232)
4
CL -
In/Out
Meter interface (CL)
5
CL +
In/Out
Meter interface (CL)
6
CLIN_BLOCK
In
Connect with GND to enter configuration mode for RS232
