WIND 3150 Installation and Operation Manual

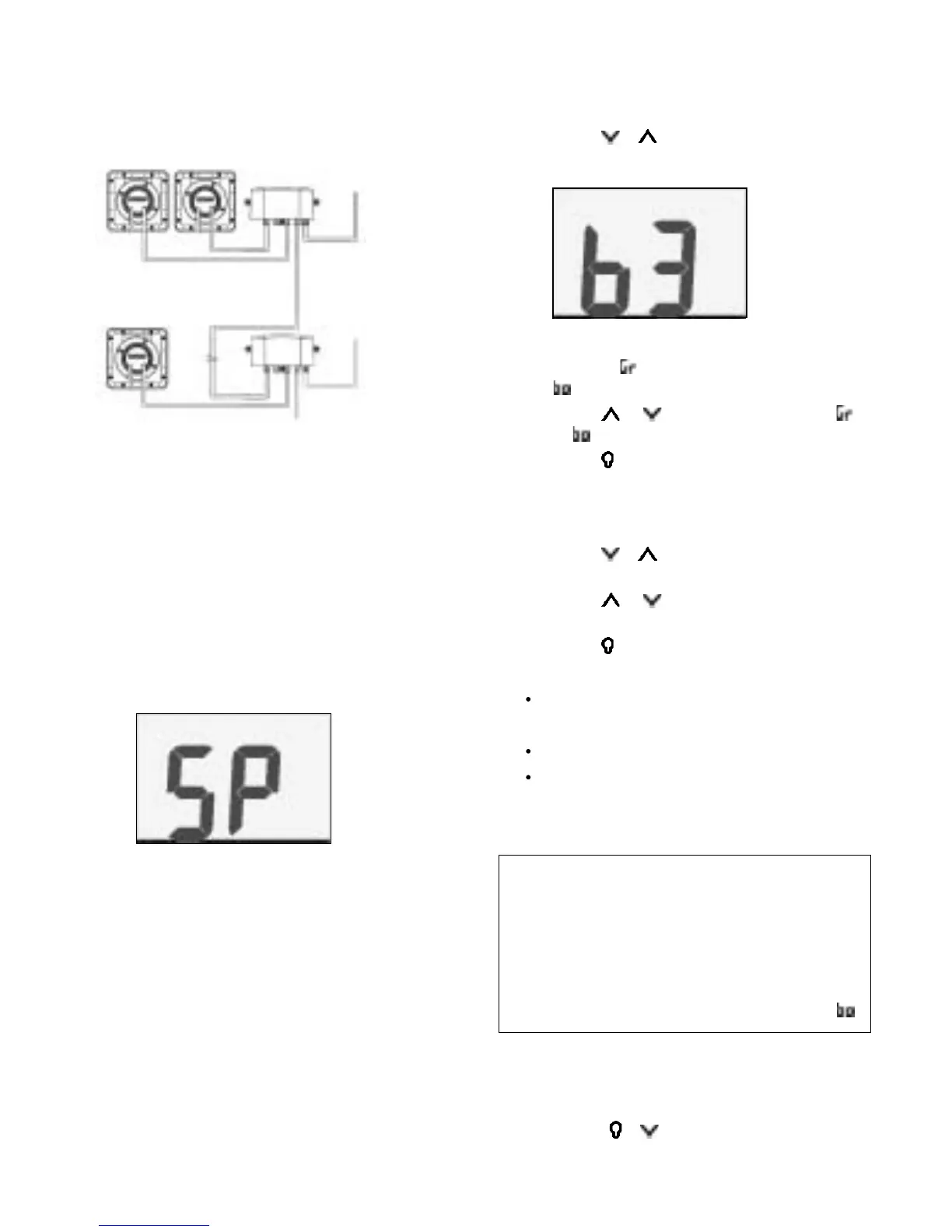

With several instruments, use the optional
junction boxes to simplify wiring, as shown
below:
For information on how to connect NavBus and
to use junction boxes, refer to the NavBus
Installation and Operation Manual.
2 Tape or cover any unused wires or connectors
to protect them from water and keep them from
shorting together.
11-2 Setup
1 Take the boat for a trial run to check that all the
instruments work correctly.
2 To display VMG and true wind speed and
angle, the WIND 3150 must be connected to a
compatible instrument that outputs boat speed.
If the WIND 3150 is connected to an
Power/data cables
Junction box
Junction box
Power & data
connections
Power/data cable
NavBus cable
Group 1
Group 2
Power & data
connections
Wind speed units ................................ knots
Wind damping ............................................. 2
Wind speed alarm .................................... Off
SIMULATE mode ......................................Off
Backlight Level ........................................... 0
Backlight Group .......................................... 1
Boat Speed Input ......................................
instrument that outputs speed through water
and to an instrument that outputs speed over
ground, then you can select which the WIND
3150 will use (see section 9):
i Press
+ several times until the
Speed Mode screen is displayed:
ii After two seconds, the mode is displayed,
flashing,
(Speed over ground) or
(boat speed through water).
iii Press
or to change the mode to
or .
iv Press
.
3 If the unit is part of a system of 3100 series
instruments connected by NavBus, set the
backlight group number (see section 9-1):
i Press
+ several times until the
Backlight Group screen is displayed:
ii Press
or to set the backlight group
number.
iii Press
.
4 Set:
The wind speed units (see section 5-1) .
5 Calibrate if required:
Wind angle (see section 8-1).
Wind speed (see section 8-2).
11-3 Resetting to factory defaults
All settings may be reset to the manufacturer’s
default settings (see below).
To reset to factory defaults:
1 Turn the power off.
2 Hold down
+ while you turn the power on
and continue to hold the keys down for at least
five seconds.
Backlight
group is 3
(flashes)
