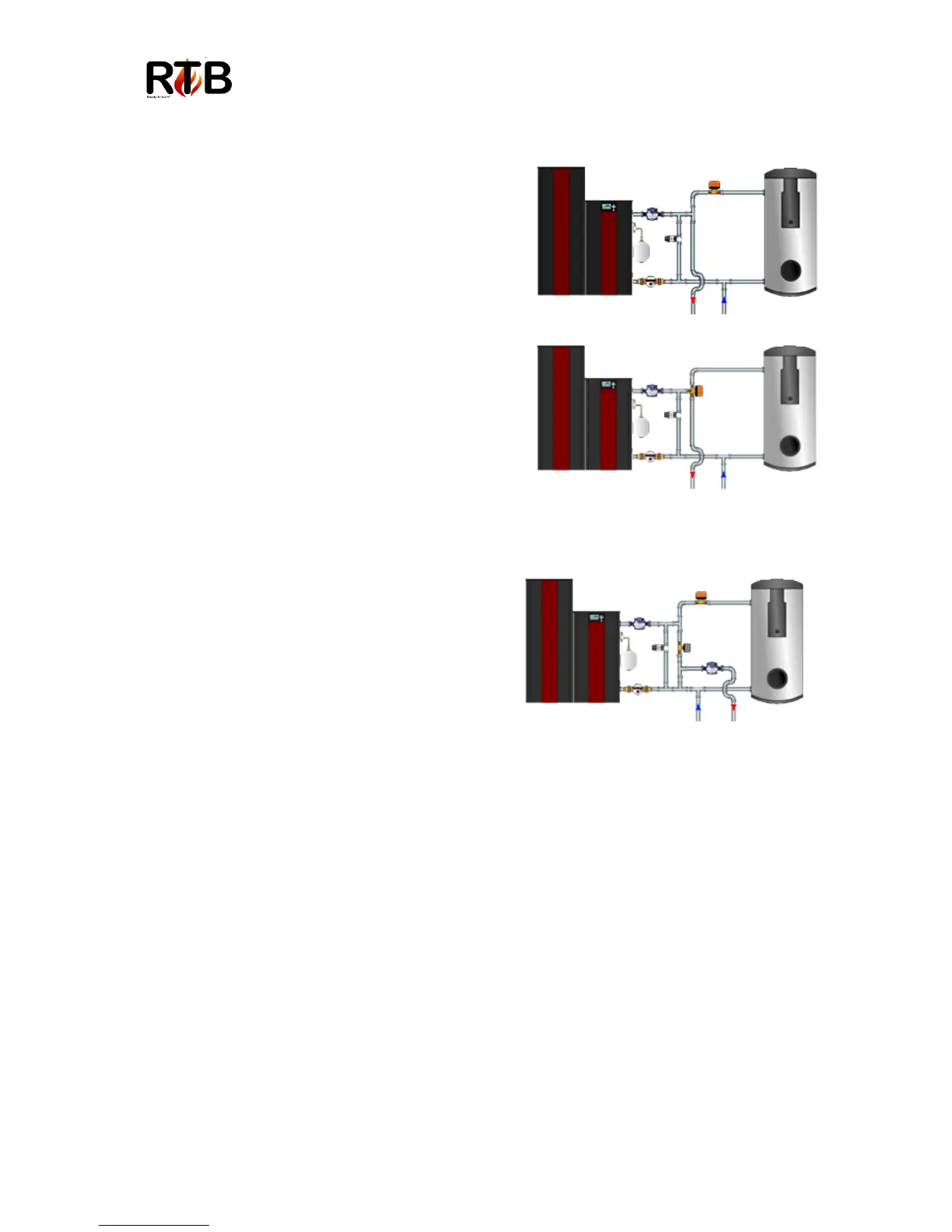

Hydraulic schematics
1 DHW with 2 port valve: Typically used
when the DHW cylinder or the coil surface
area is small. Heat for the house
is
supplied
while DHW is being produced.
2 DHW with 3 port valve: Typically used
when the DHW cylinder or the coil surface
area is large. The house
is not
supplied with
heat while producing hot water. The house
must therefore be able to manage without
heat for short periods during the winter.
4 Weather compensation: Allows you to
have a high temperature on the boiler as
well as manage the supply temperature to
the house in relationship to the outside
temperature and chill factor.
