2

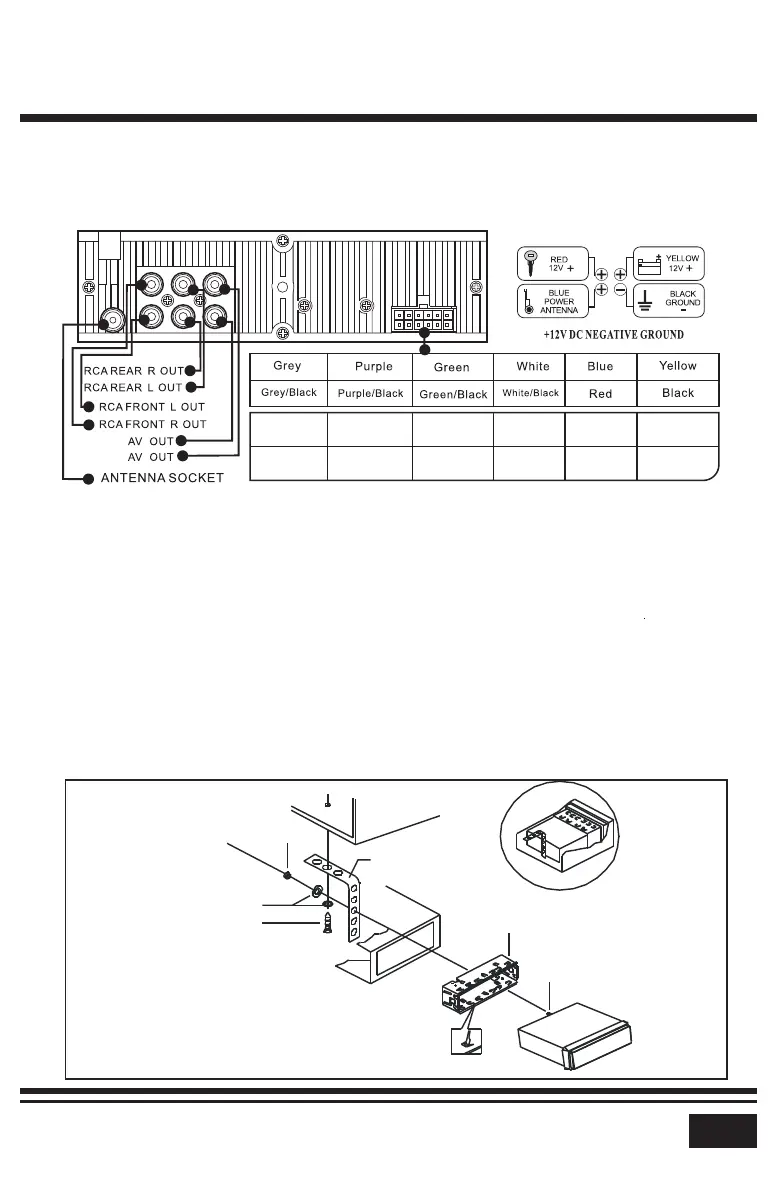

In s ta lla tio n d ia g ra m
D ASH BO AR D
M E TA L M O U N T IN G
S T R A P
H EX N U T
PLAIN WASH ER
TAPPIN G SC R EW
C O NSO LE
SLID E BR AC KET
H O USIN G
H EX BO LT
Make all electrical connections as follows.
Notes:
a. You must only connect one 4ohm speaker per speaker connection.
b. Red ACC wire must be connected to a switched power source.
c. Never connect the yellow B+ wire and red ACC wires together.
d. Any device connected to the blue ANT wire must not exceed 200mA.
INSTALLATION STEPS
RIGHT REAR
SPEAKER +
RIGHT FRONT
SPEAKER +
RIGHT REAR
SPEAKER -
RIGHT FRONT
SPEAKER -
LEFT FRONT
SPEAKER +
LEFT FRONT
SPEAKER -
LEFT REAR
SPEAKER +
LEFT REAR
SPEAKER -
AUTOMATIC
ANTENNA
OUTPUT 12+
IGNITION
12V +
CONSTANT
12V +
GROUND
12V -
