NCR 7197 Parts Identification Manual

Parts Identification Manual 1
Receipt Printer
1 497-0427639 Board-Printer Main PCB
(Inside bottom cover, see
page 2)
7 497-0423724 Sensor - Paper Low (Please
refer to page 7.)
2 497-0423717 Board-Printer
Communication (Inside
bottom cover, see page 3)
8 497-0424709 Board - Control panel (Please
refer to page 8.)
3 497-0423718 Mechanism - Thermal
(Please refer to page 4.)
9 497-0423732 Supply – Power (75 W)
(Please refer to page 10.)
4 497-0423720 Cover - Thermal w/ Roller,
G11 (See page 5)
10 497-0425654 Cover - Top, G11 (Please
refer to page 9.)
5 497-0424705 Cover - Thermal w/ Roller,
CG1 (See page 5)
11 497-0425655 Cover - Top, CG1 (Please
refer to page 9.)
6 497-0423722 Guide– 58mm (Please
refer to page 6.)
12 497-0427650 Blade – Knife (Please refer to
page 11)

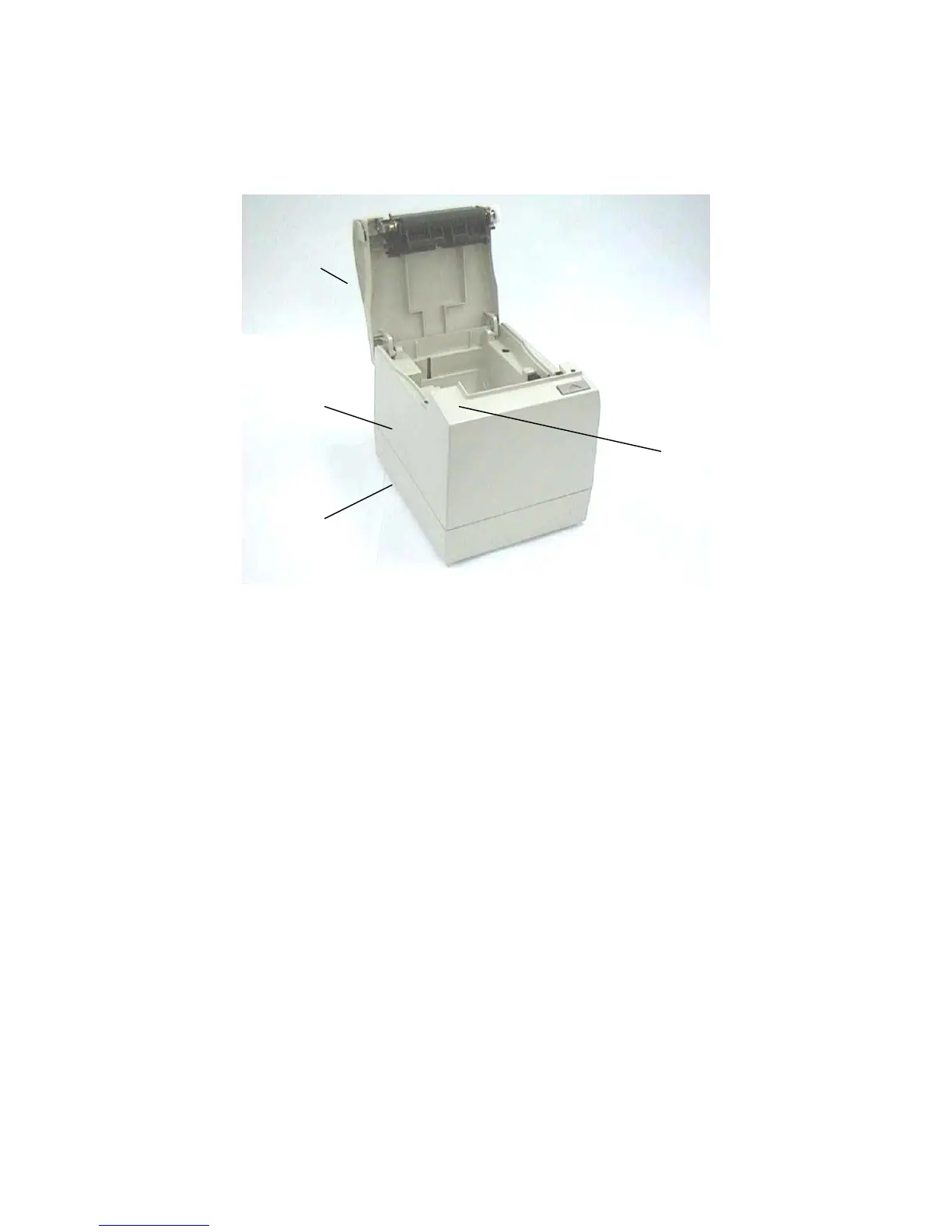

2) Board -
Printer
Communication
1) Board -
Printer
main PCB
4) Cover -
Thermal w/
Roller
10) Cover - Top: G11
(shown) or Charcoal
Gray #1

NCR 7197 Specifications

General

Paper Width	80 mm
Connectivity	Serial
Print Technology	Thermal
Interface	RS-232
Resolution	203 x 203 dpi
