Water Inlet & outlet junction

1. Use the pipe tape to connect the

water Inlet & outlet junction onto

the heat pump

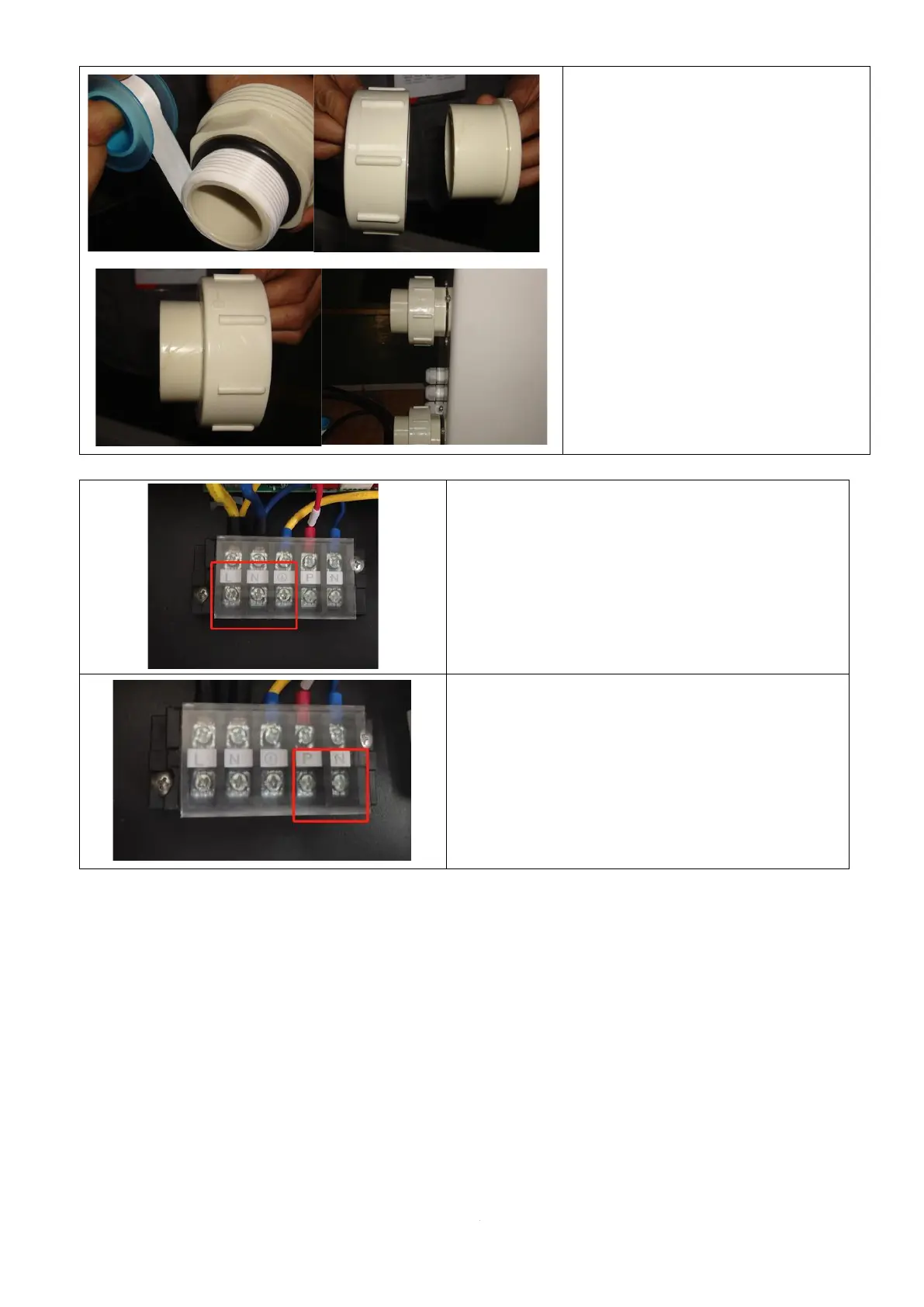

2. Install the two joints like the

picture shows

3. Screw them onto the water Inlet

& outlet junction

Cable wiring

1. Open the lid of the electrical.

2. Secure the wire to the terminal block(LN

part).

Water pump wiring

1. Open the lid of the electrical.

2. Secure the wire to the terminal block (PN

part)
