NEC 2400 - System Configuration

Issue 2 December 1995 1-5
System Configuration
System Configuration
The Intuity system connects to the NEAX switch through a Switch Integration
Device (SID). Figure 1-2 shows you the connections between an Intuity system
and a NEAX switch through the multi-port serial card. Figure 1-3 shows you the
connections between an Intuity system on a MAP/5 platform and a NEAX switch
through COM1.

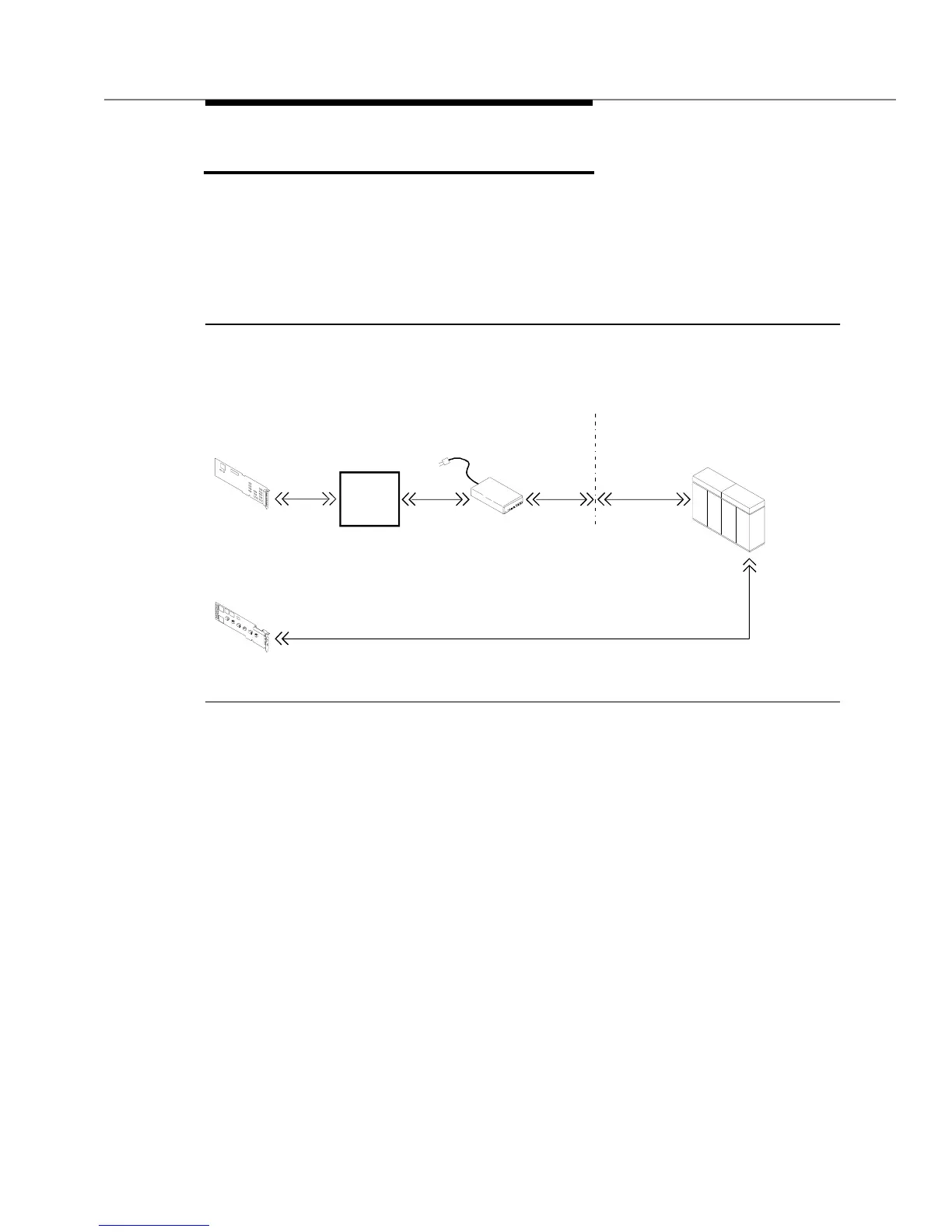

Figure 1-2 Connections through the Multiport Serial Card for an Intuity Integration with
a NEAX Switch
Multi-port
serial card
RS-232
6-25 pin
adapter
NEAX 2400
switch
Demarcation
point
Digital
information
link
(MCI link)
Analog
(voice) link
IVC6
Modular
cable
Modular
cable
Null cable
(shipped
with SID)
Customer-
provided
connection
to NEAX
RS-232
cable
PA-16LCQ
analog port
SID
