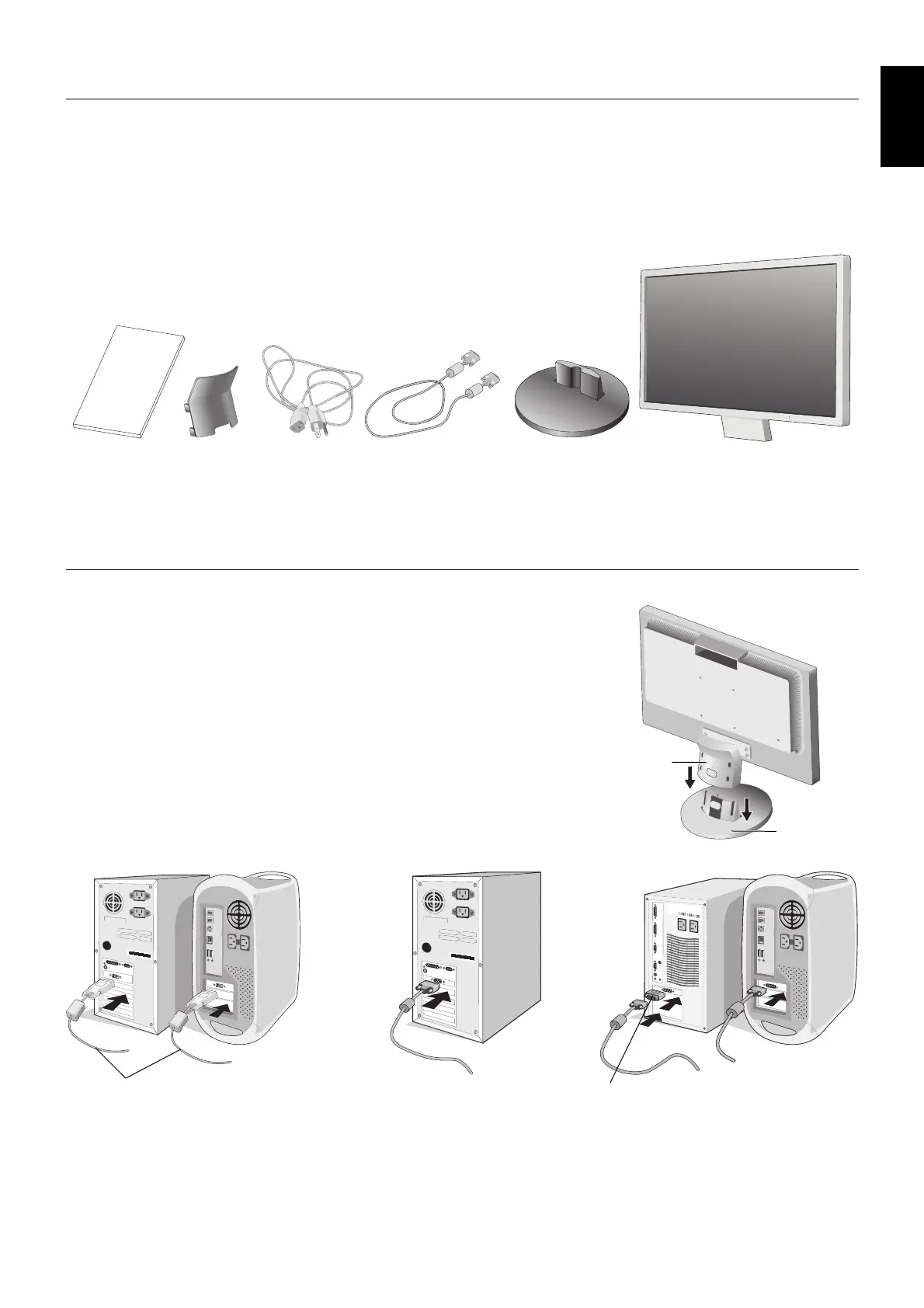

Your new NEC AccuSync LCD monitor box* should contain the following:
• AccuSync LCD monitor with tilt base
• Power Cord
• Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)
• Setup Manual
• Base Stand
• Cable Holder
Setup Manual Cable Holder Power Cord*
1
Video Signal Cable
Base Stand AccuSync LCD monitor
(Base Stand not connected)
Setup
Manual
* Remember to save your original box and packing material to transport or ship the monitor.
*1 Type of power cord included will depend on the where the LCD monitor is to be shipped.
Quick Start
To attach the Base Stand to the LCD Stand:
1. Attach the Base Stand to the Stand. The locking tabs on the Base Stand should fi t into
the hole on the Stand (Figure S.1).
To attach the AccuSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI signal cable
(not included) to the connector of the display card in your system (Figure A.1).
Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the
connector of the display card in your system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter (not included) to the computer
and then attach the 15-pin mini D-SUB signal cable to the Macintosh cable adapter
(Figure A.3). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
Macintosh Cable Adapter
(not included)
Figure A.1
Figure A.2 Figure A.3
DVI Signal Cable (not included)
Figure S.1
Base Stand
Stand
