3-1

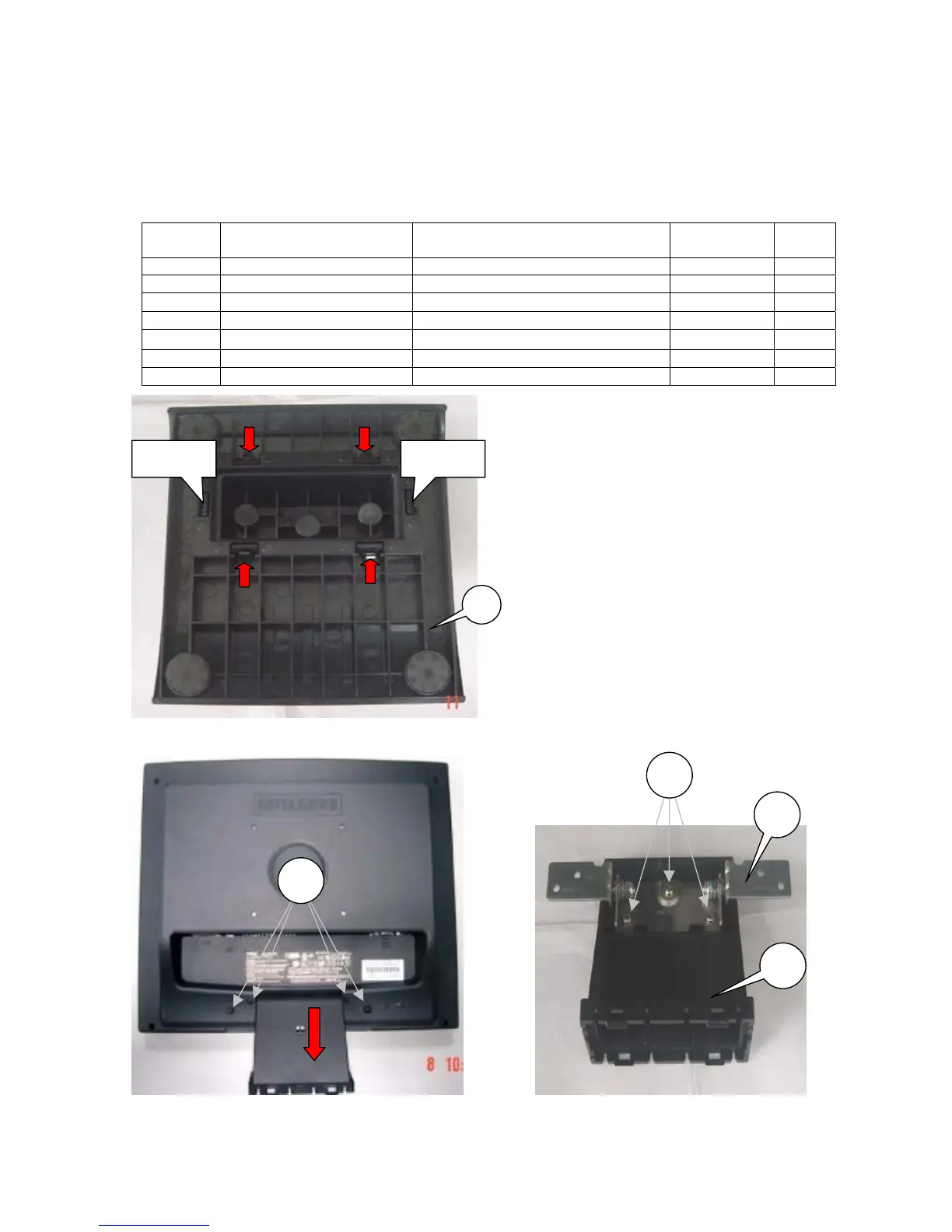

DISASSEMBLY
g Before you disassemble the set, turn off power and pull out the power plug.
g Use the proper screwdriver. If oversize or undersize screwdriver is used, screws may be damaged.
g Assembly is the opposite process of disassembly.
SYMBOL
For U.S./Europe
(TPV Part Number)
DESCRIPTION
CABINET
COLOR
Ver
1 34L1439 NA T BASE Black A
1 34L1439 PL T BASE Black B
2 AM1L1740-10-47 SCREW (M4*10) Black A/B
3 Q1L1040-10-128 SCREW (T4*10) --- A/B
4 34L1435 NA T STAND Black A
4 34L1435 PL T STAND Black B
5 37L 509 1 HINGE --- A/B
No HookNo Hook
1
2
4
3
5
To Next Page
