2.2 LCD without Acrylic Panel
2.2.1 For QDI Panel (QDI 17EL0707)
Item Specifications Remarks
LCD Module type 17.0” / 43.2 cm diagonal
Display Type Active matrix thin-film-transistor (TFT)
Display Mode TN, Normally White
Resolution 1280(H) x 1024(V) Aspect ratio 4:3
Active Display Area 337.92 (H) x 270.336 (V) mm Unit: mm
Pixel Pitch 0.264(H) x 0.264(V) Unit: mm
Color Depth 16.19 million color (6bit + FRC)
Color Filter RGB Stripe
Surface Treatment Anti-glare treatment of the front polarizer
Horizontal (Φ) 125 degrees (-60 to 65 degrees) CR>=10(*2)
Viewing Angle
(Typical)
Vertical (θ)
150 degrees (-75 to 75 degrees) CR>=10(*2)
Contrast ratio 400:1 (typ)
Luminance 250 (typ) Unit: cd/m
2
(*1)
Rise time 4ms(typ.) Unit: ms
Response time
Fall time 12ms(typ.) Unit: ms
Type CCFL (x 4 pcs)
Back Light
Life time 40,000 (min), 50,000 (typ) Unit: Hours

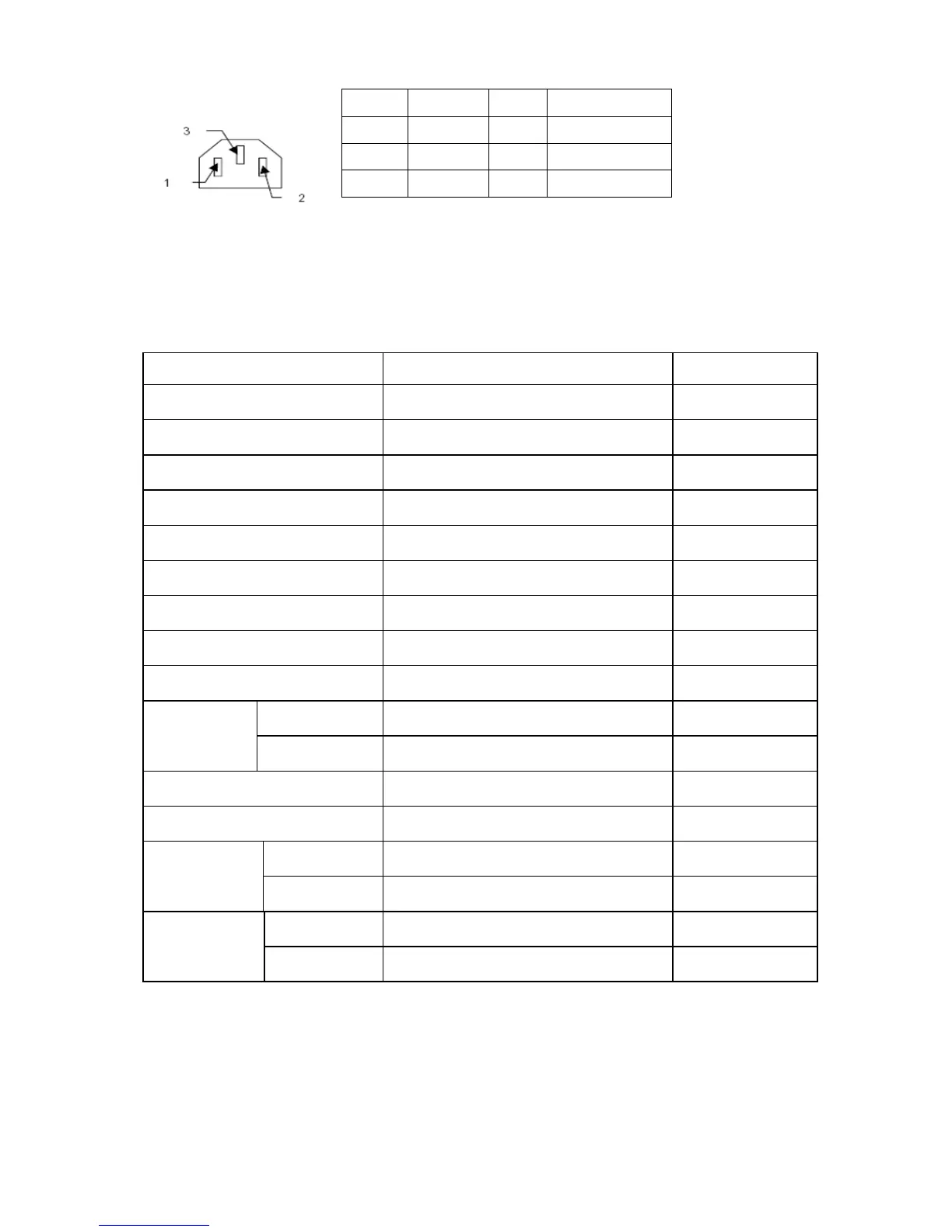

Pin Name I/O Definition
1 L I Live
2 N I Neutral
3 FG I Frame GND
To Next Page
