NEC DTU-70 - Operation of Transmitter

GWP-G22996
3 - 12
3-5-4 Operation of Transmitter
The operation of transmitter is carried out with front panel of TX Control composed
of an LCD display that displays condition of the transmitter and, a operation button.
that carries out start/stop of the transmitter.
Setting of the output frequency and clock time is made on this panel.
Fig. 3-5 and 3-6 show visual appearance of the operation panel.
The procedure of the operation on this panel is described in section 4, Operation and
Adjustment, in detail.

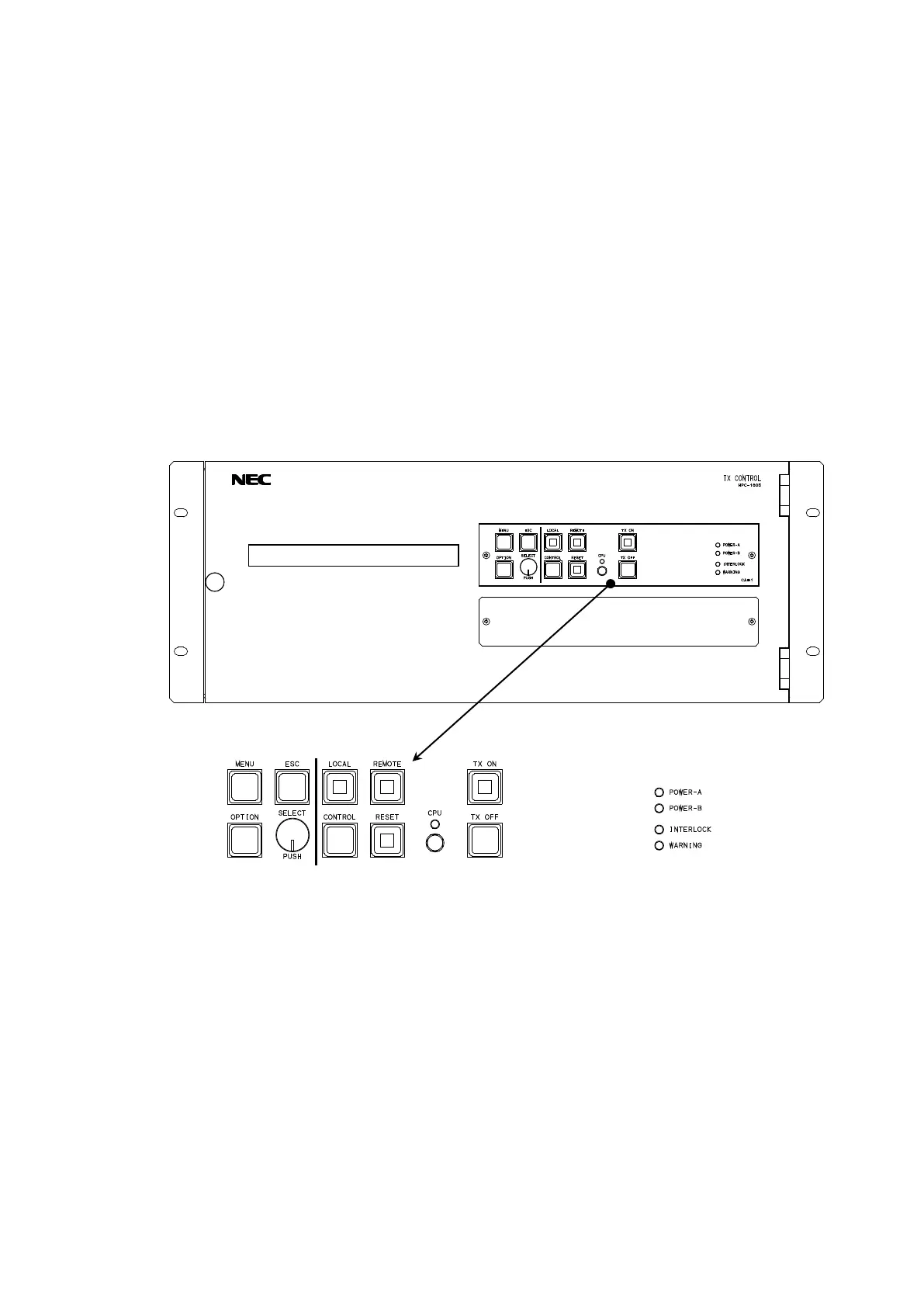

Fig 3-5 Outside view of operation panel (S Type)
«1»
«2»
<1>
«4»
<2>
«5»
<3>
«6»
<7>
<5>
<8>
«3»
«7»
«8»
«10»
«9»
«11»
<6>
<4>
