NEC E438 - Wall and Ceiling Mounting

English - 18


 Please refer to “WARNING 9”.
Be sure to read this section before mounting the monitor on a wall or a ceiling to guarantee safety.
• It may not be possible to mount the monitor on some walls or ceilings depending on their structure or strength. Ask the
qualied personnel or the supplier to check the mounting location.

 Please refer to “WARNING 8”.
1. Place a soft cloth on the table or another at location where the monitor will be laid.
 • Make sure that the surface where you will lay the monitor is larger than the monitor screen.
 When installing, do not apply excessive force to any part of the monitor by pushing or leaning on it. This may
deform the monitor.
2. Place the monitor on top of the soft cloth.
3. Install the commercially-available mounting brackets.


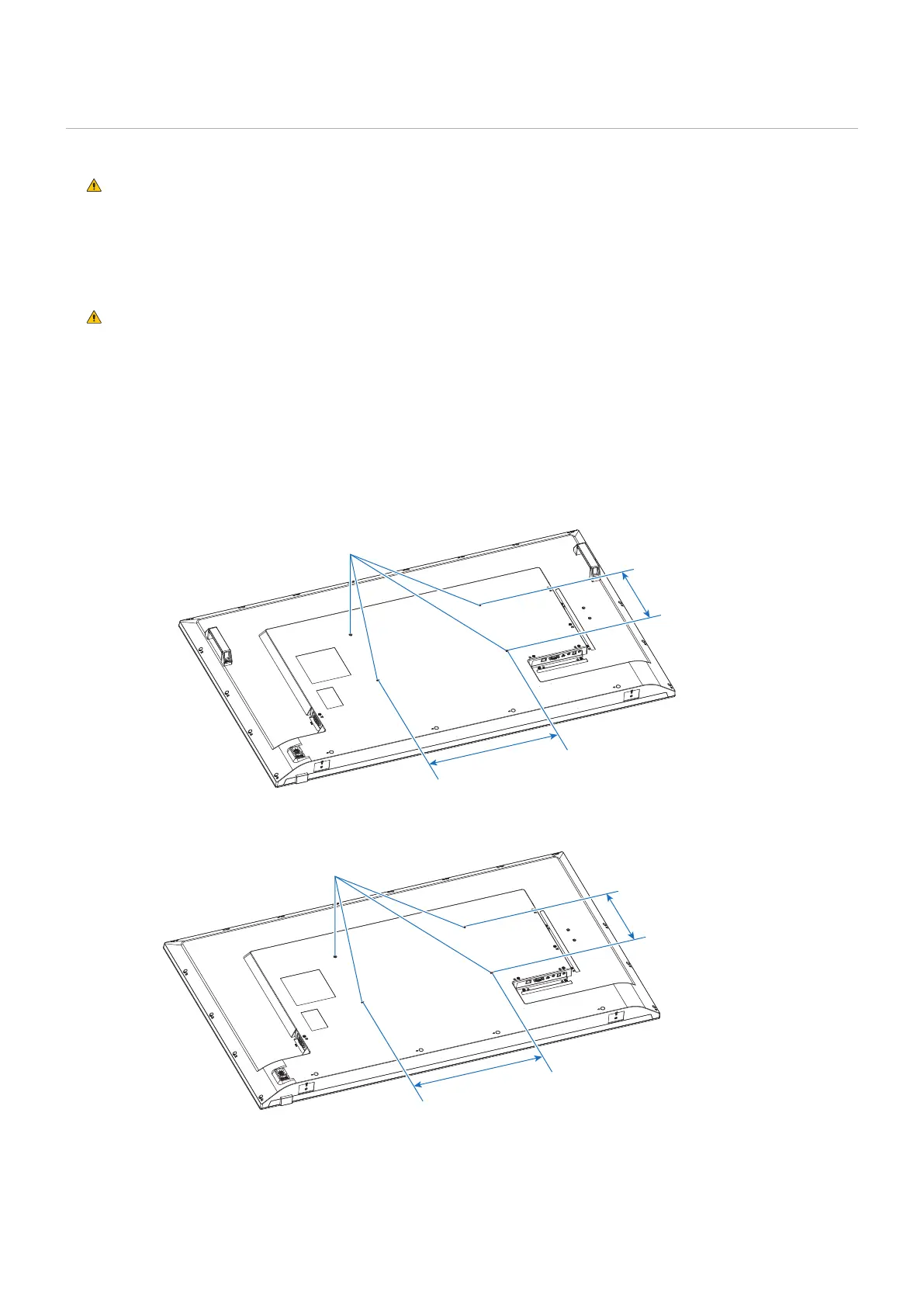

4 installations holes M6 (E558/E658)
200 mm (E558)
400 mm (E658)
400 mm (E558)
600 mm (E658)

4 installations holes M6 (E328/E438/E498)
100 mm (E328)
200 mm (E438/E498)
100 mm (E328)
400 mm (E438/E498)
