NEC E438 - AV Terminal Cable Information

English - 83

Use a commercially-available video cable with a 4-contact mini jack (φ3.5 mm) at one extremity for conversion cables to
connect to the AV terminal.
Check the wiring specication of the cable in advance and choose a proper cable.
 *Different wiring specications may exist for 4-contact mini jack cables.
 
1 Video
2 Audio (left)
3 Audio (right)
4 GND
1
2
3
4

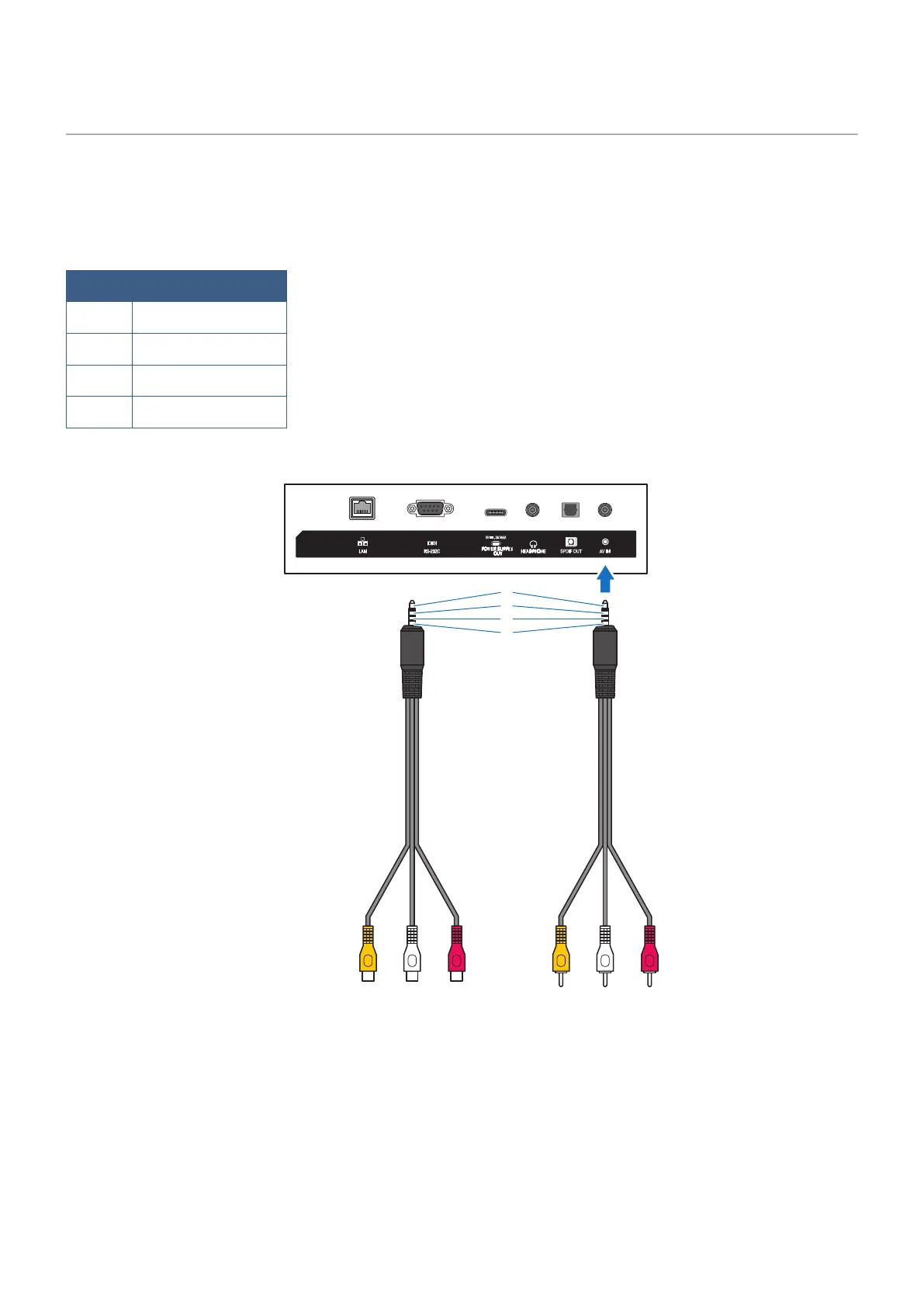

Example of RCA
connectors (male) -
4-contact mini jack cable
Example of RCA
connectors (female) -
4-contact mini jack cable
