English-14
Preparation
IMPORTANT: Do not apply pressure to the TV screen display area which
may compromise the integrity of the display. The manufacturer’s warranty
does not cover user abuse or improper installations.

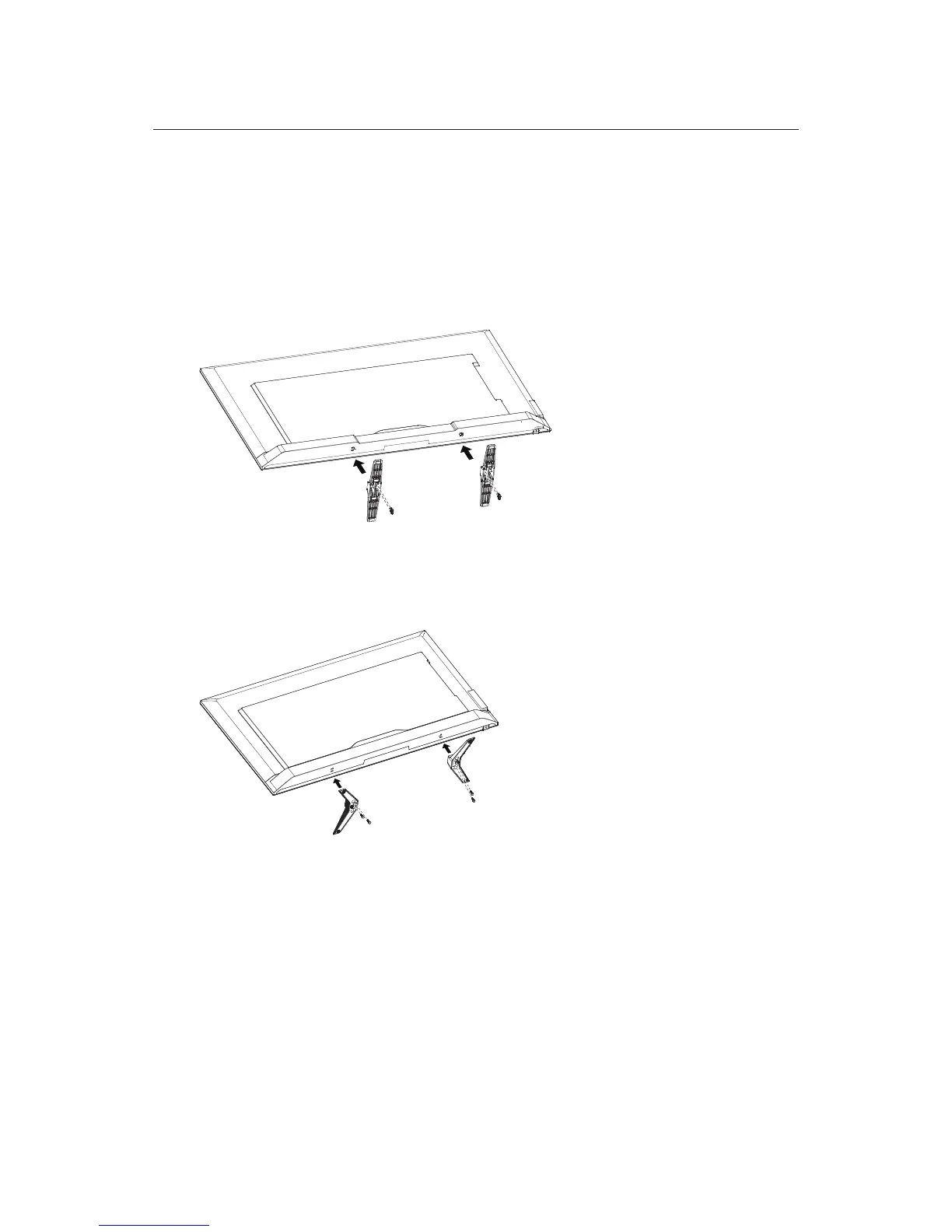

Attaching the Base
E656
Stand Screw x 4
E656: M6 (30mm)
E556 / E506 / E436 / E326
Stand Screw x 4
E556/E506: M6 (22mm)
E436/E326: M4 (20mm)
1. Place the TV face down on a soft and at surface to prevent scratching
and damage.
2. Carefully align the base to the button of the TV and fasten the screws
with a cross-head screwdriver.
CAUTION: The base of the stand is very heavy. Install with care to avoid
injury such as dropping the base onto one's foot.
To Next Page
