English-22

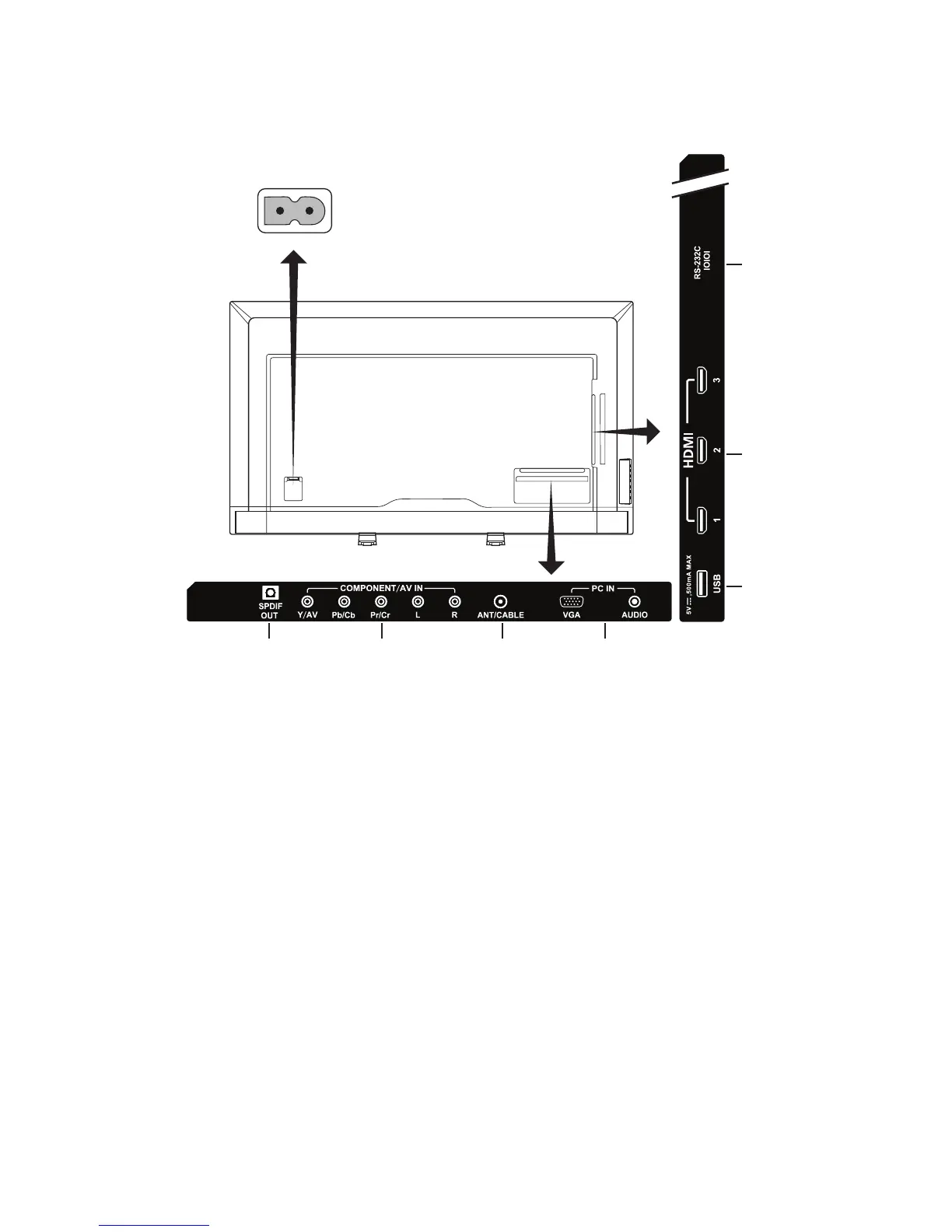

Source Connection Guide
E656
AC POWER
❶
❷
❸
❹
❺❻❼
1. RS-232C – Connect to your PC, and receive the control commands from
the PC.
2. HDMI (HDMI-1, HDMI-2, HDMI-3) – Connect to your HDMI devices.
HDMI-1 terminal can support ARC (Audio Return Channel) function.
ARC output does not work sound effect (Sound mode, Balance, Bass,
Treble on OSD).
3. USB port – Used for accessing photo, music, and movie les.
4. PC IN (VGA / AUDIO) – Connect to your PC video and audio.
5. ANT / CABLE – Connect to an RF antenna or Analog Cable system.
6. COMPONENT / AV IN –
• Component: Connect to digital video equipment to the Video Green (Y),
Blue (Pb), Red (Pr) jacks, and matching Audio White (L) and Red (R)
jacks.
• Composite: Connect to digital video equipment to the Video Green (AV),
jacks, and matching Audio White (L) and Red (R) jacks.
7. SPDIF OUT- Use a digital audio cable to connect to stereo home
theater system. SPDIF output does not work sound effect (Sound mode,
Balance, Bass, Treble on OSD). SPDIF output does not work Auto
function of Internal Speakers on OSD.
