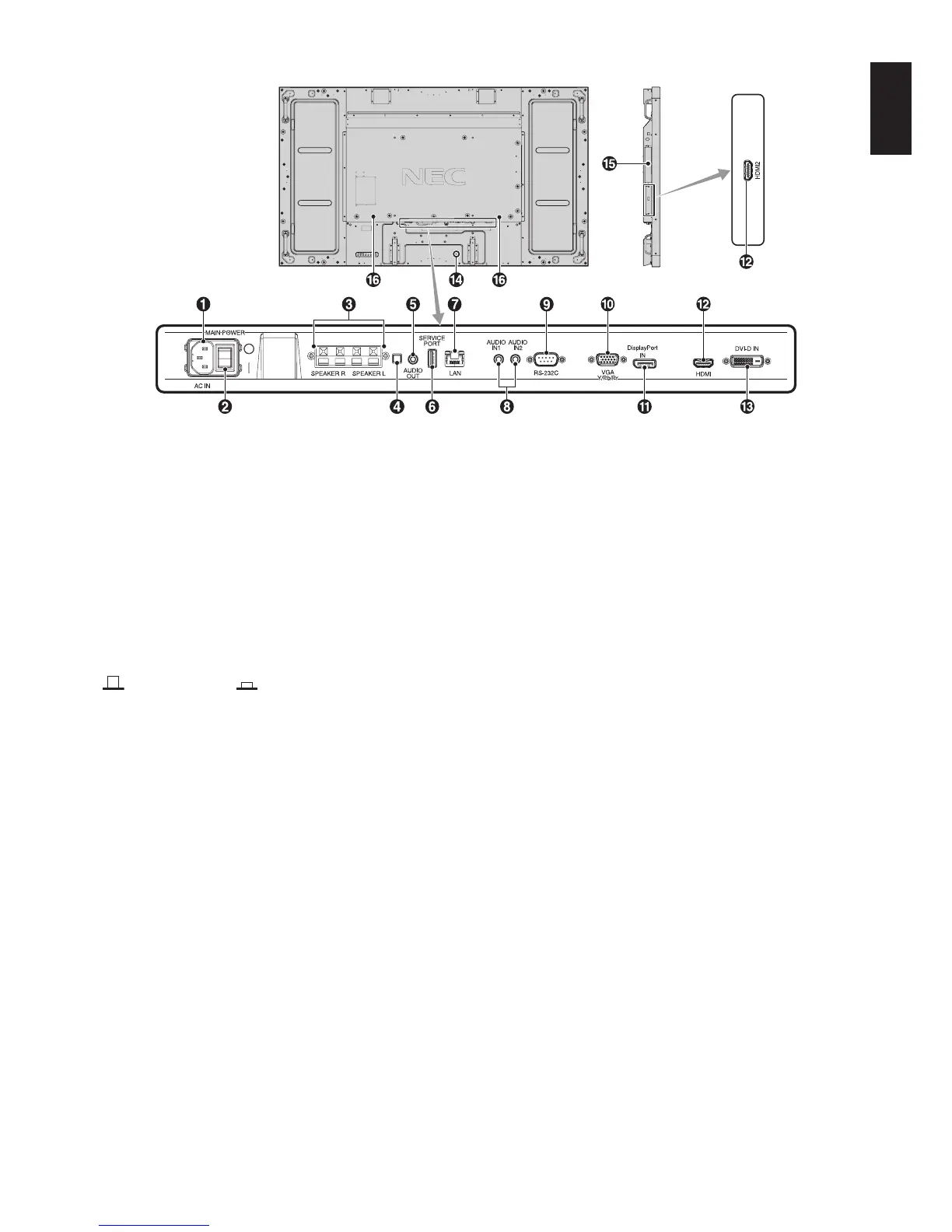

Terminal Panel
A AC IN connector
Connects with the supplied power cord.
B Main Power Switch
On/Off switch to turn main power ON/OFF.
C EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, DPORT and HDMI.
Red terminal is plus (+).
Black terminal is minus (-).
NOTE: This speaker terminal is for 15 W + 15 W (8 ohm)
speaker.
D Internal/External speaker switch
: Internal speaker : External speaker.
NOTE: Please power off the monitor when you use the
Internal/External speaker switch.
E AUDIO OUT
To output the audio signal from the AUDIO IN 1, 2, DPORT
and HDMI to an external device (stereo receiver, amplifier,
etc.).
* This connector does not support Headphone terminal.
F Service port
This USB slot is for future software upgrades.
G LAN port (RJ-45)
LAN connection. See page 33.
8 AUDIO IN 1, 2
To input audio signal from external equipment such as a
computer or DVD player.
I RS-232C (D-Sub 9 pin)
Connect RS-232C input from external equipment such as a PC
in order to control RS-232C functions.
J VGA IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or
from other RGB equipment. This input can be used with an
RGB or COMPONENT source. Please select signal type in
TERMINAL SETTING. See page 27.
NOTE: When you use this connector for COMPONENT,
please use a suitable signal cable. If you have any questions,
please ask your dealer.
K DisplayPort connectors
To input DisplayPort signals.
L HDMI IN
To input digital HDMI signals.
M DVI IN (DVI-D)
To input digital RGB signals from a computer or HDTV device
having a digital RGB output.
* This connector does not support analog input.
N Kensington Lock
For security and theft prevention.
O Option board slot
Slot 2 type accessories are available. Please contact your
supplier for detailed information.
NOTE: Please contact your supplier for available option board.
P Internal speaker
