Connections
NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a
loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

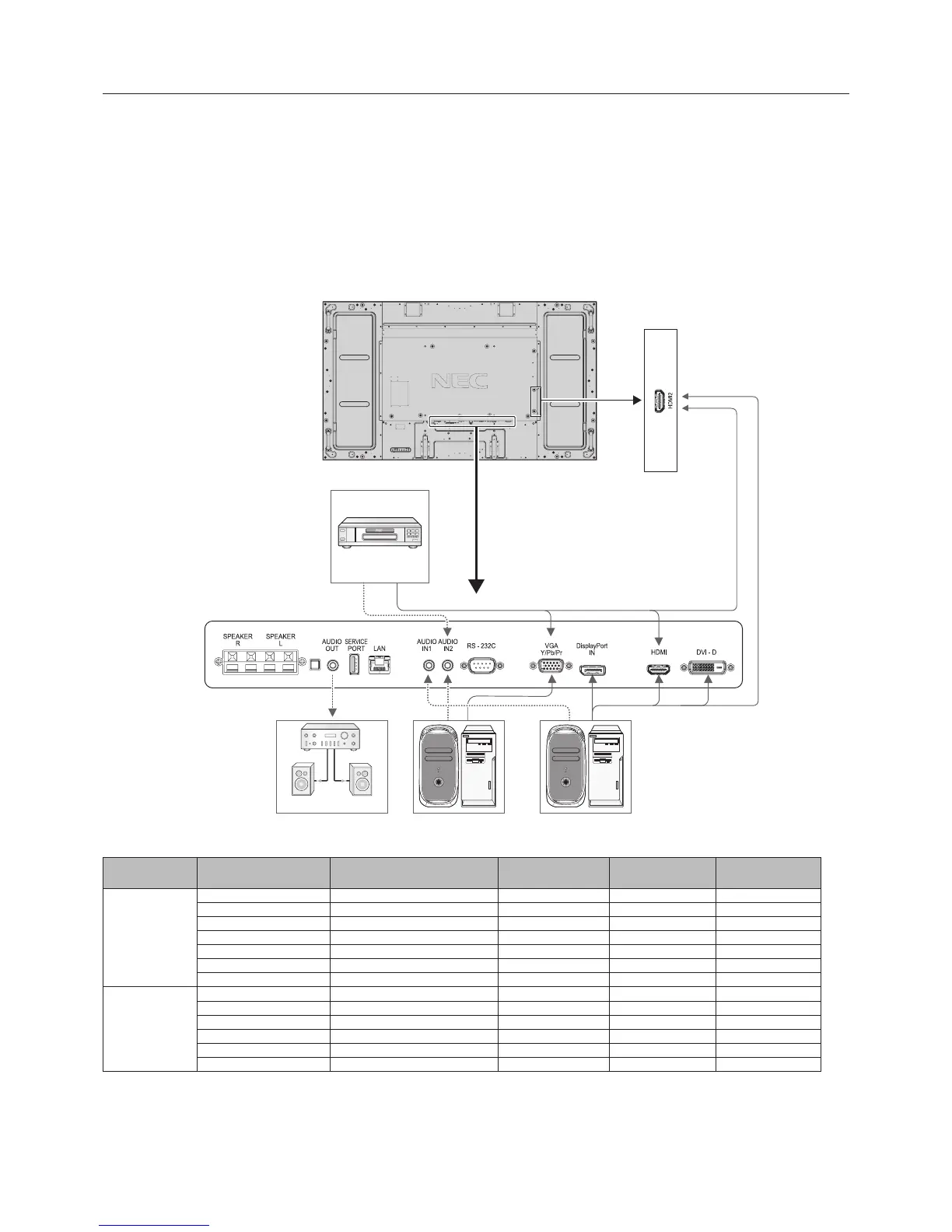

Wiring Diagram
Solid lines = video signal
Dotted lines = audio signal
Stereo Amplifier
Computer (Analog) Computer (Digital)
DVD Player
Connected
equipment
Connecting
terminal
Setting in terminal mode Input signal name
Connecting
audio terminal
Input button
in remote control
AV
DisplayPort RAW/EXPAND*
1
DP DPORT DisplayPort
DVI (DVI-D) DVI-HD DVI AUDIO IN1/IN2 DVI
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
VGA (D-Sub) D-SUB MODE RGB VGA AUDIO IN1/IN2 RGB/HV
VGA (D-Sub) D-SUB MODE COMPONENT COMPONENT AUDIO IN1/IN2 Y/Pb/Pr
Option RAW/EXPAND*
1
OPTION OPTION OPTION
HDMI2 RAW/EXPAND*
1
HDMI2 HDMI2 HDMI
PC
DisplayPort RAW/EXPAND*
1
DP DPORT DisplayPort
DVI (DVI-D) DVI-PC DVI AUDIO IN1/IN2 DVI
HDMI RAW/EXPAND*
1
HDMI HDMI HDMI
VGA (D-Sub) - VGA AUDIO IN1/IN2 RGB/HV
Option RAW/EXPAND*
1
OPTION OPTION OPTION
HDMI2 RAW/EXPAND*
1
HDMI2 HDMI2 HDMI
*1: depend on signal type.
