English-9
English

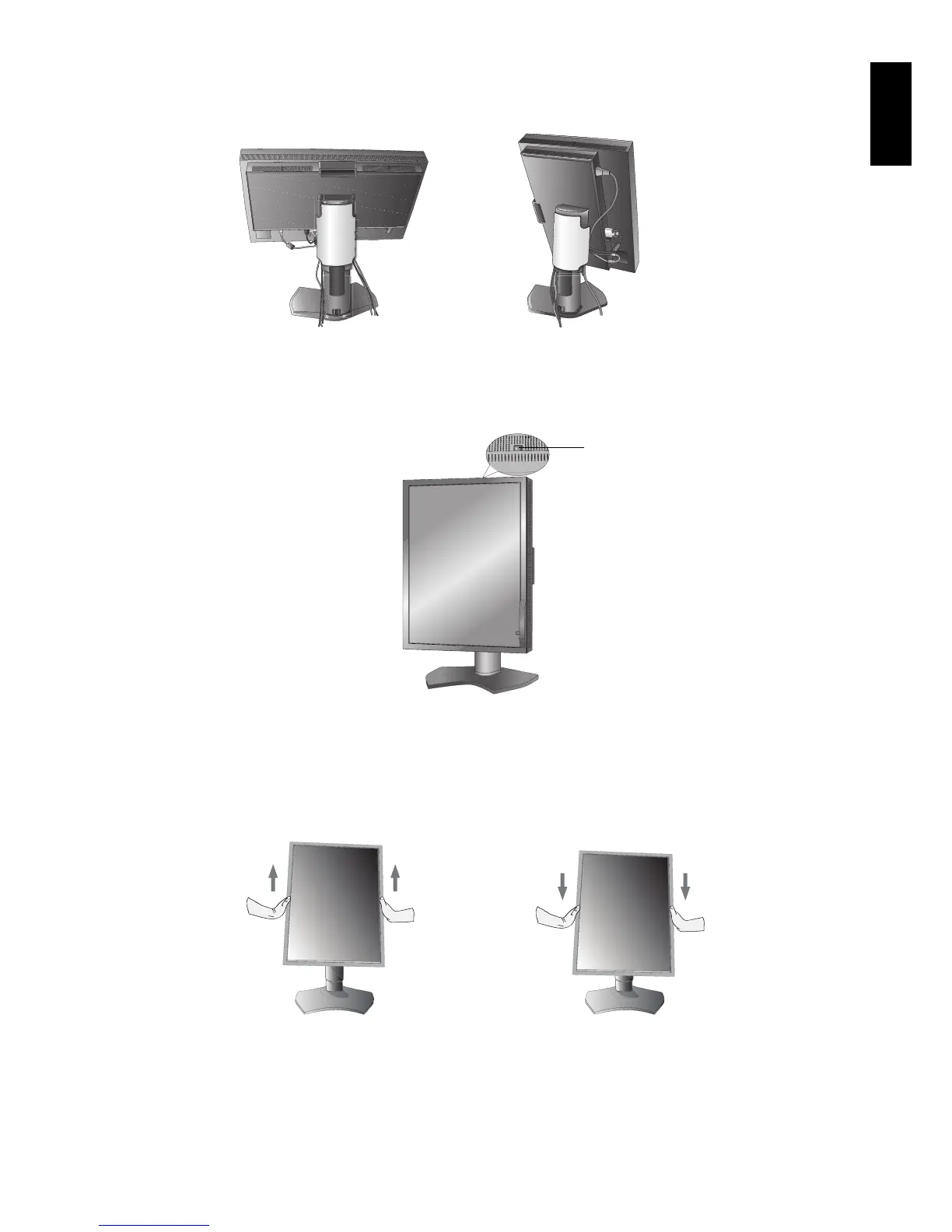

7. Slide down the cable cover (Figure D.1).
8. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet.
NOTE: Please refer to the Caution section of this manual for proper selection of an AC power cord.
Figure D.1
9. Turn on the monitor with power switch on the top (Portrait) or left side (Landscape) of the monitor (Figure E.1). Turn on the
computer.
NOTE: If you have any problems, please refer to the Troubleshooting section of this Manual.
Figure E.1
Power switch
Raise and Lower Monitor Screen
The monitor may be raised or lowered in either Portrait or Landscape mode.
To raise or lower the screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).
NOTE: Handle with care when raising or lowering the monitor screen.
Figure RL.1
