Quick Start
To connect the LCD monitor to your system, follow these instructions:
NOTE: Make sure to read “Recommended Use” (page 4) before installation.
In order to display the maximum resolution, a display controller that can output a resolution of 1536 x 2048 (in portrait
mode) or 2048 x 1536 (in landscape mode) is needed.
1. Turn off your computer.
2. For a PC with DVI digital output: Connect the DVI signal cable to the connector of the display controller in your system
(Figure A.1). Tighten all screws.
For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display controller in your system
(Figure A.2).

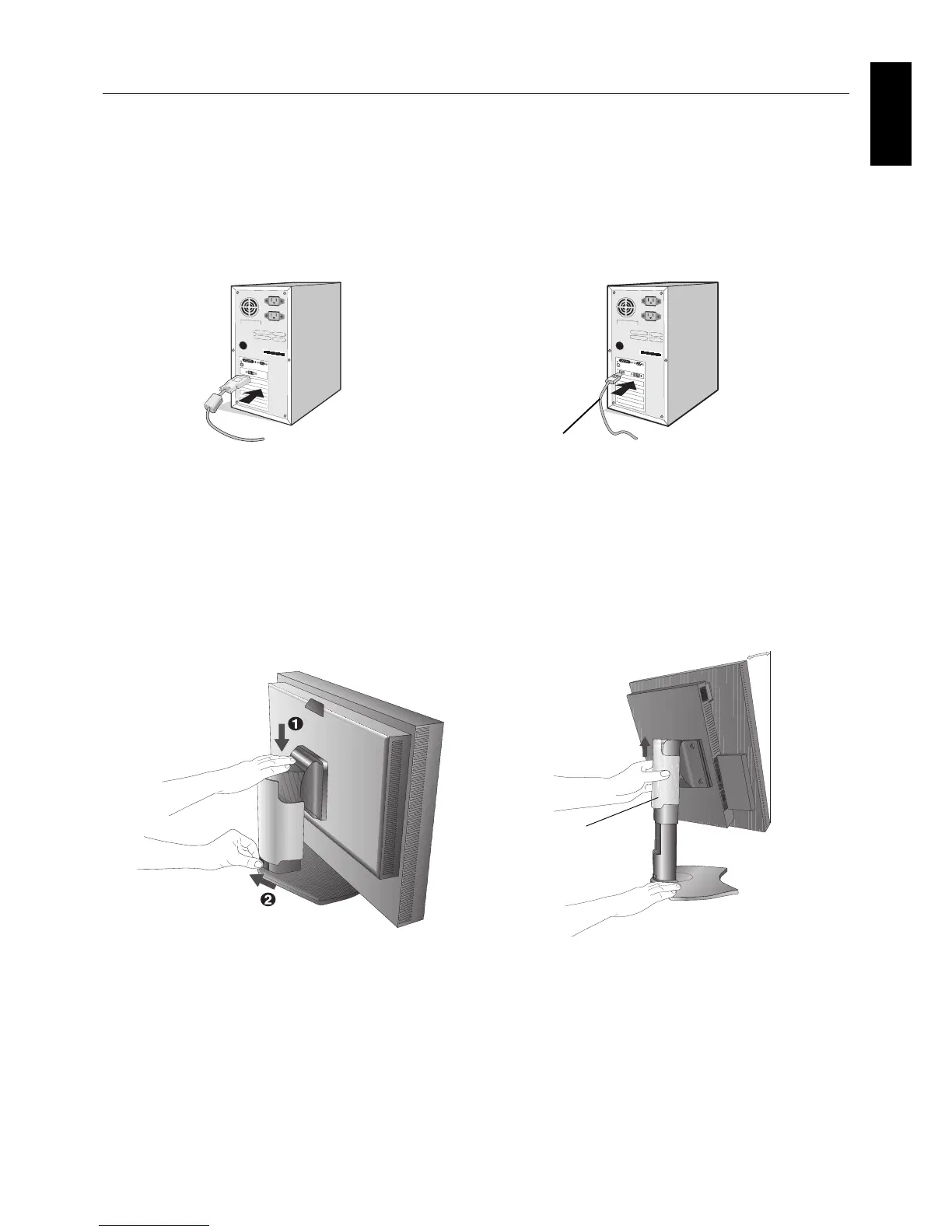

Figure A.1 Figure A.2
DisplayPort cable
NOTE: 1. Please use a DisplayPort cable with a DisplayPort logo.
2. When removing the DisplayPort cable, hold down the top button to release the lock.
3. Height adjustment is locked by a lock button. Place hand on top of the monitor stand to push down the screen to the lowest
position. Slide the lock button to unlock (Figure B.1).
NOTE: Handle with care when unlocking the stand.
Place hands on each side of the monitor to tilt the LCD panel to a 30-degree tilt angle and lift up to the highest position.
Slide the cable cover up (Figure B.2).
NOTE: The cable cover is not removable.
Figure B.1 Figure B.2
30° Tilt
Cable cover
To Next Page
